JOHNSON CONTROLS
155
SECTION 6 - TECHNICAL DATA
FORM 201.23-NM2
ISSUE DATE: 3/9/2015
6
CONTROL PANEL
L1
L2
R6
R1
L6
L5
L4
L3
R2
R3
R4
R5
R7
L7
x
y
YCIV

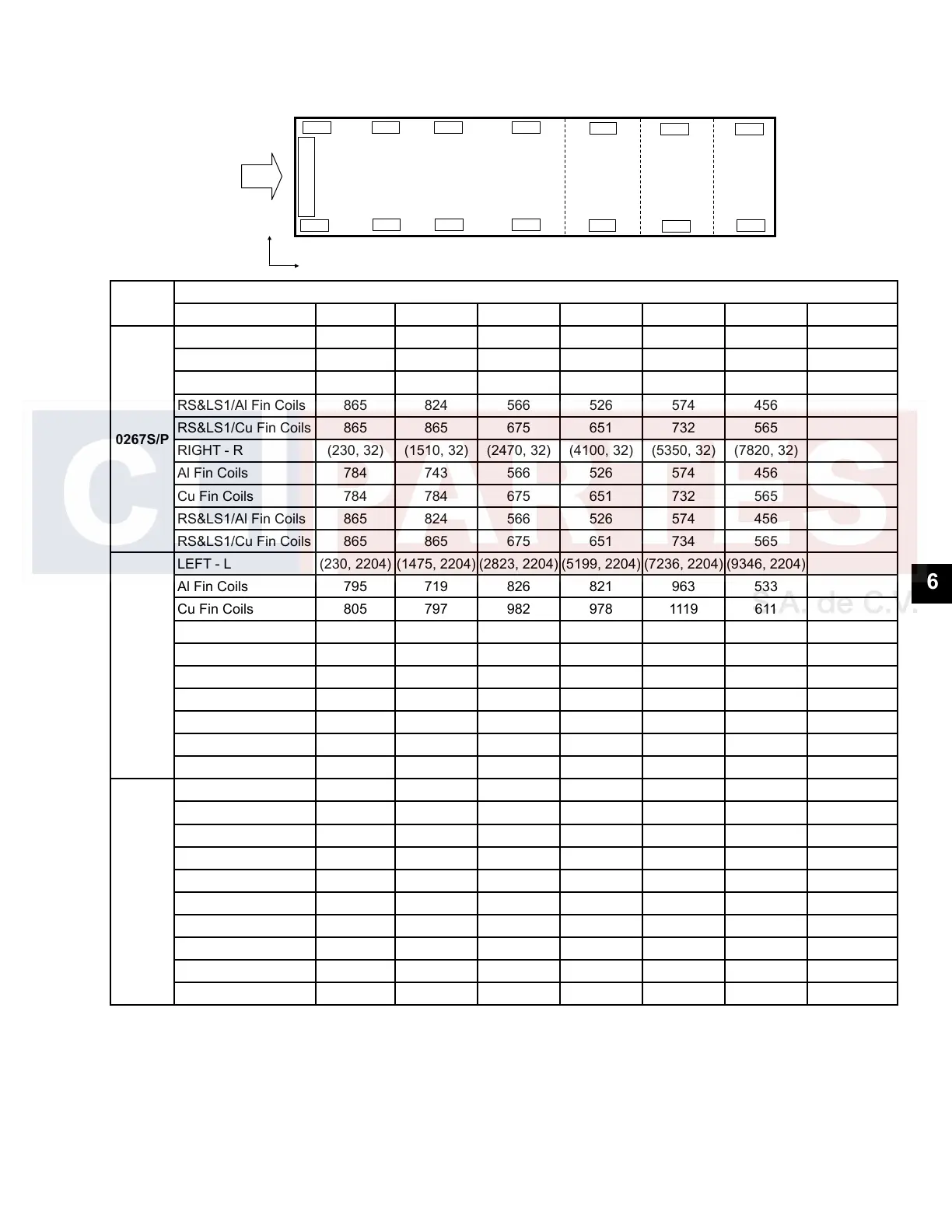

ISOLATOR LOCATIONS (X, Y) - MM. AND POINT LOADS - KG
1 2 3 4 5 6 7
0267S/P
LEFT - L (230, 2204) (1510, 2204) (2470, 2204) (4100, 2204) (5350, 2204) (7820, 2204)
Al Fin Coils 784 743 566 526 574 456
Cu Fin Coils 784 784 675 651 732 565
RS&LS1/Al Fin Coils 865 824 566 526 574 456
RS&LS1/Cu Fin Coils 865 865 675 651 732 565
RIGHT - R (230, 32) (1510, 32) (2470, 32) (4100, 32) (5350, 32) (7820, 32)
Al Fin Coils 784 743 566 526 574 456
Cu Fin Coils 784 784 675 651 732 565
RS&LS1/Al Fin Coils 865 824 566 526 574 456
RS&LS1/Cu Fin Coils 865 865 675 651 734 565
0287S/P
LEFT - L (230, 2204) (1475, 2204) (2823, 2204) (5199, 2204) (7236, 2204) (9346, 2204)
Al Fin Coils 795 719 826 821 963 533
Cu Fin Coils 805 797 982 978 1119 611
RS&LS1/Al Fin Coils 875 799 826 821 993 663
RS&LS1/Cu Fin Coils 855 877 982 978 1149 741
RIGHT - R (230, 32) (1475, 32) (2823, 32) (5199, 32) (7236, 32) (9346, 32)
Al Fin Coils 795 724 1092 1095 1195 535
Cu Fin Coils 805 802 1248 1252 1351 613
RS&LS1/Al Fin Coils 875 804 1092 1095 1225 665
RS&LS1/Cu Fin Coils 885 882 1248 1252 1381 743
0307S/P
LEFT - L (230, 2204) (1475, 2204) (2823, 2204) (5199, 2204) (7236, 2204) (9346, 2204)
Al Fin Coils 795 719 886 897 1045 537
Cu Fin Coils 805 797 1042 1054 1201 615
RS&LS1/Al Fin Coils 875 799 886 897 1075 667
RS&LS1/Cu Fin Coils 885 877 1042 1054 1231 745
RIGHT - R (230, 32) (1475, 32) (2823, 32) (5199, 32) (7236, 32) (9346, 32)
Al Fin Coils 795 724 1152 1194 1314 539
Cu Fin Coils 805 802 1308 1351 1470 607
RS&LS1/Al Fin Coils 875 804 1152 1194 1344 669
RS&LS1/Cu Fin Coils 885 882 1308 1351 1500 747
NOTES:1. RS = Reduced Sound Option, LS = Low Sound Option
STANDARD EFFICIENCY, SI (CONT'D)
