Johnson Controls York YCIV A Series User Manual

JOHNSON CONTROLS
157
SECTION 6 - TECHNICAL DATA
FORM 201.23-NM2
ISSUE DATE: 3/9/2015
6
CONTROL PANEL
L1
L2
R6
R1
L6
L5
L4
L3
R2
R3
R4
R5
R7
L7
x
y
HIGH EFFICIENCY, SI
YCIV

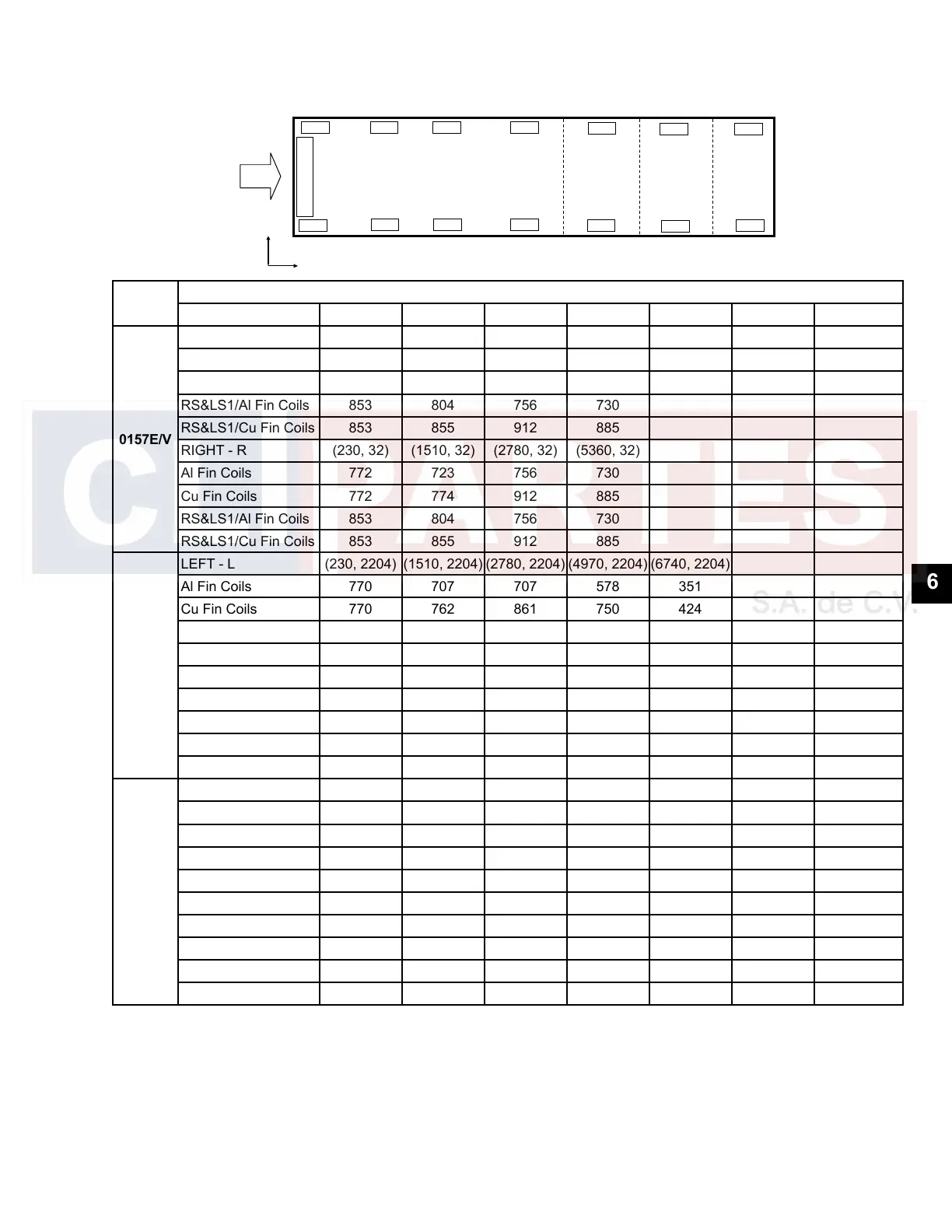

ISOLATOR LOCATIONS (X, Y) - MM. AND POINT LOADS - KG
1 2 3 4 5 6 7
0157E/V
LEFT - L (230, 2204) (1510, 2204) (2780, 2204) (5360, 2204)
Al Fin Coils 772 723 756 730
Cu Fin Coils 772 774 912 885
RS&LS1/Al Fin Coils 853 804 756 730
RS&LS1/Cu Fin Coils 853 855 912 885
RIGHT - R (230, 32) (1510, 32) (2780, 32) (5360, 32)
Al Fin Coils 772 723 756 730
Cu Fin Coils 772 774 912 885
RS&LS1/Al Fin Coils 853 804 756 730
RS&LS1/Cu Fin Coils 853 855 912 885
0177E/V
LEFT - L (230, 2204) (1510, 2204) (2780, 2204) (4970, 2204) (6740, 2204)
Al Fin Coils 770 707 707 578 351
Cu Fin Coils 770 762 861 750 424
RS&LS1/Al Fin Coils 851 788 707 578 351
RS&LS1/Cu Fin Coils 851 843 861 750 424
RIGHT - R (230, 32) (1510, 32) (2780, 32) (4970, 32) (6740, 32)
Al Fin Coils 770 707 707 563 301
Cu Fin Coils 770 762 861 735 374
RS&LS1/Al Fin Coils 851 788 707 563 301
RS&LS1/Cu Fin Coils 851 843 861 735 374
0187E/V
LEFT - L (230, 2204) (1510, 2204) (2780, 2204) (4970, 2204) (6740, 2204)
Al Fin Coils 778 717 760 584 372
Cu Fin Coils 778 772 914 756 445
RS&LS1/Al Fin Coils 859 798 760 584 372
RS&LS1/Cu Fin Coils 859 853 914 756 445
RIGHT - R (230, 32) (1510, 32) (2780, 32) (4970, 32) (6740, 32)
Al Fin Coils 770 708 708 584 372
Cu Fin Coils 770 763 862 756 445
RS&LS1/Al Fin Coils 851 789 708 584 372
RS&LS1/Cu Fin Coils 851 844 862 756 445
NOTES:1. RS = Reduced Sound Option, LS = Low Sound Option
