SECTION 6 - TECHNICAL DATA
CONTROL PANEL
L1
L2
R6
R1
L6
L5
L4
L3
R2
R3
R4
R5
R7
L7
x
y
YCIV

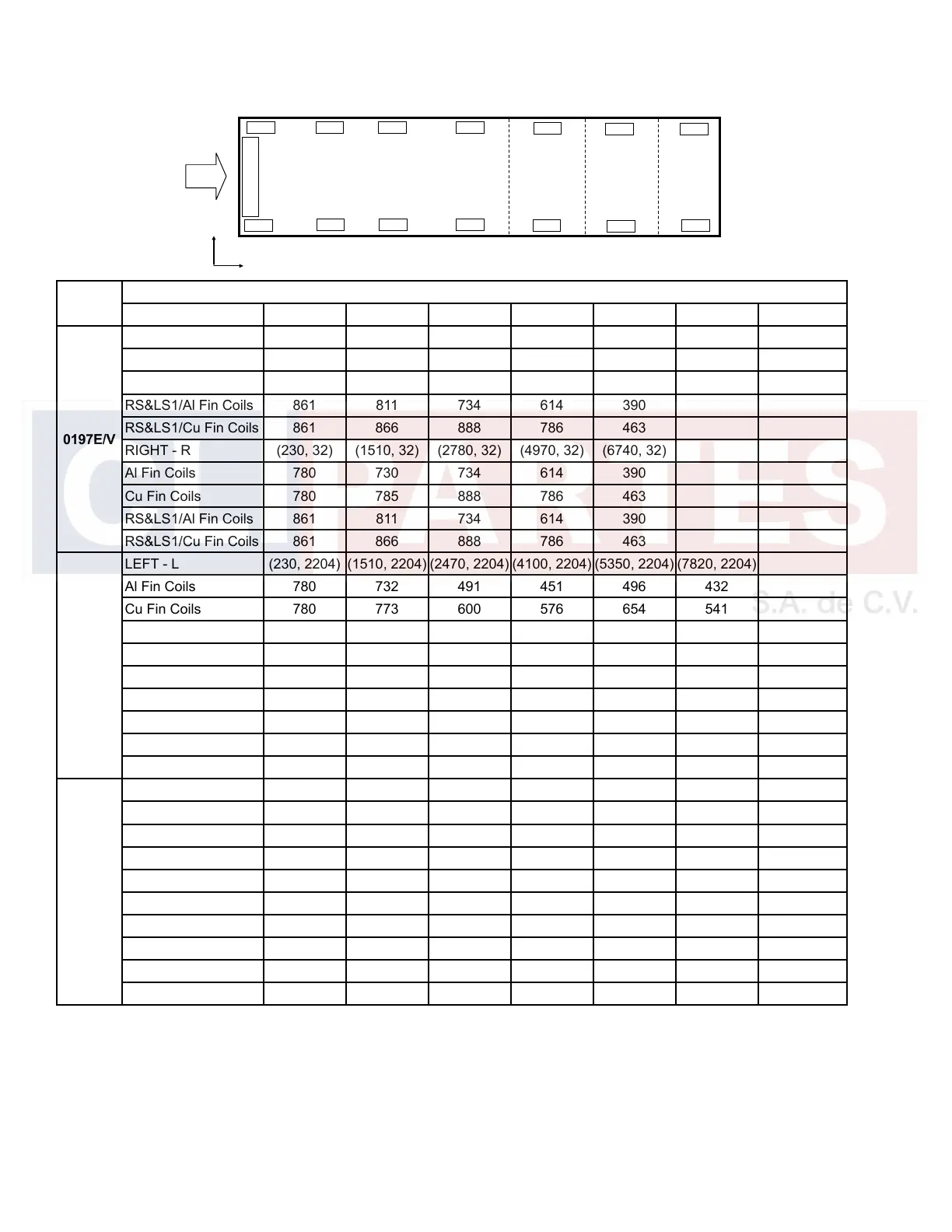

ISOLATOR LOCATIONS (X, Y) - MM. AND POINT LOADS - KG
1 2 3 4 5 6 7
0197E/V
LEFT - L (230, 2204) (1510, 2204) (2780, 2204) (4970, 2204) (6740, 2204)
Al Fin Coils 780 730 734 614 390
Cu Fin Coils 780 785 888 786 463
RS&LS1/Al Fin Coils 861 811 734 614 390
RS&LS1/Cu Fin Coils 861 866 888 786 463
RIGHT - R (230, 32) (1510, 32) (2780, 32) (4970, 32) (6740, 32)
Al Fin Coils 780 730 734 614 390
Cu Fin Coils 780 785 888 786 463
RS&LS1/Al Fin Coils 861 811 734 614 390
RS&LS1/Cu Fin Coils 861 866 888 786 463
0207E/V
LEFT - L (230, 2204) (1510, 2204) (2470, 2204) (4100, 2204) (5350, 2204) (7820, 2204)
Al Fin Coils 780 732 491 451 496 432
Cu Fin Coils 780 773 600 576 654 541
RS&LS1/Al Fin Coils 861 813 491 451 496 432
RS&LS1/Cu Fin Coils 861 854 600 576 654 541
RIGHT - R (230, 32) (1510, 32) (2470, 32) (4100, 32) (5350, 32) (7820, 32)
Al Fin Coils 780 732 491 451 489 433
Cu Fin Coils 780 773 600 576 647 542
RS&LS1/Al Fin Coils 861 813 491 451 489 433
RS&LS1/Cu Fin Coils 861 854 600 576 649 542
0227E/V
LEFT - L (230, 2204) (1510, 2204) (2470, 2204) (4100, 2204) (5350, 2204) (7820, 2204)
Al Fin Coils 780 733 492 453 500 455
Cu Fin Coils 780 774 601 578 658 564
RS&LS1/Al Fin Coils 861 814 492 453 500 455
RS&LS1/Cu Fin Coils 861 855 601 578 658 564
RIGHT - R (230, 32) (1510, 32) (2470, 32) (4100, 32) (5350, 32) (7820, 32)
Al Fin Coils 780 733 492 453 500 455
Cu Fin Coils 780 774 601 578 658 564
RS&LS1/Al Fin Coils 861 814 492 453 500 455
RS&LS1/Cu Fin Coils 861 855 601 578 660 564
NOTES:1. RS = Reduced Sound Option, LS = Low Sound Option
