SECTION 6 - TECHNICAL DATA
FORM 201.23-NM2
ISSUE DATE: 3/9/2015
6
YCIV

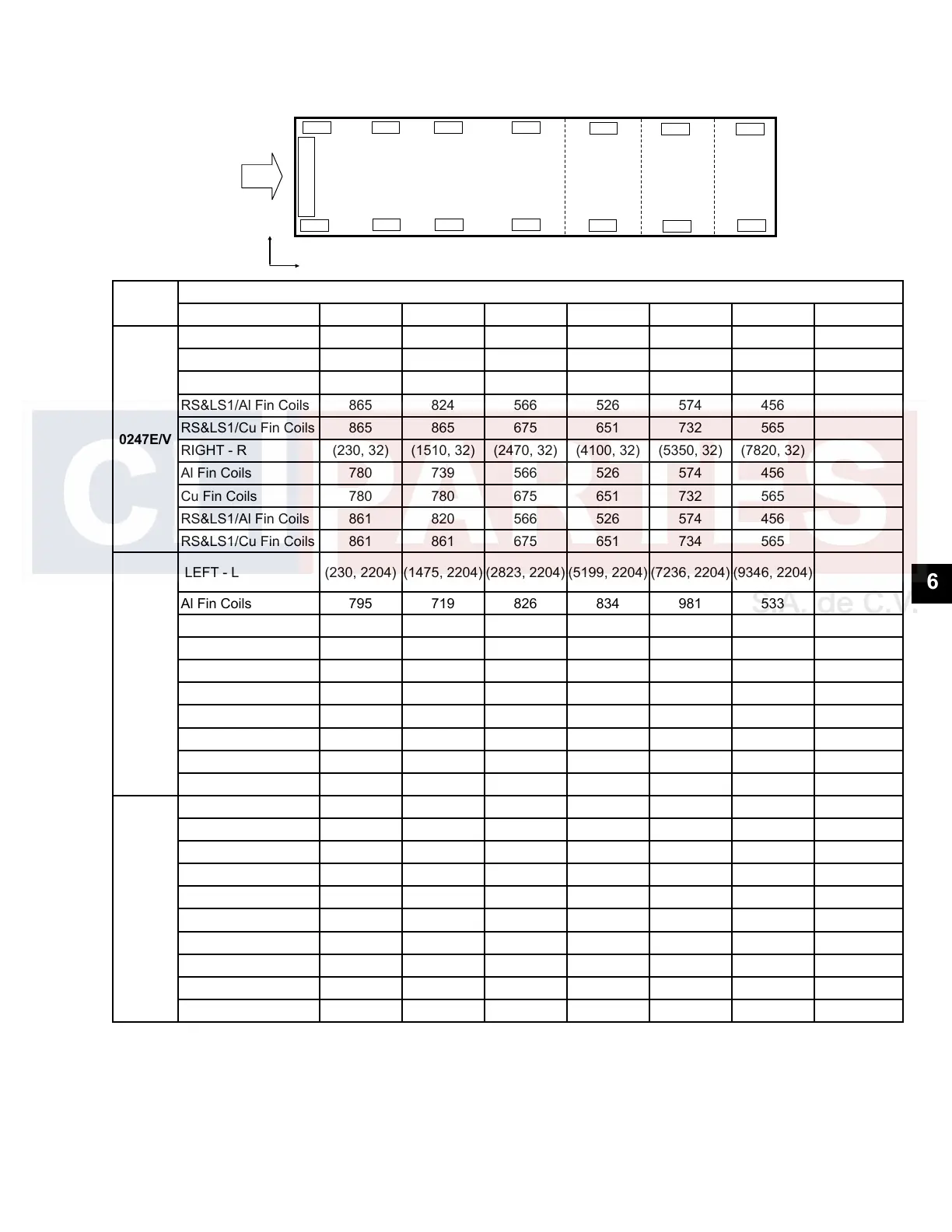

ISOLATOR LOCATIONS (X, Y) - MM. AND POINT LOADS - KG
1 2 3 4 5 6 7
0247E/V
LEFT - L (230, 2204) (1510, 2204) (2470, 2204) (4100, 2204) (5350, 2204) (7820, 2204)
Al Fin Coils 784 743 566 526 574 456
Cu Fin Coils 784 784 675 651 732 565
RS&LS1/Al Fin Coils 865 824 566 526 574 456
RS&LS1/Cu Fin Coils 865 865 675 651 732 565
RIGHT - R (230, 32) (1510, 32) (2470, 32) (4100, 32) (5350, 32) (7820, 32)
Al Fin Coils 780 739 566 526 574 456
Cu Fin Coils 780 780 675 651 732 565
RS&LS1/Al Fin Coils 861 820 566 526 574 456
RS&LS1/Cu Fin Coils 861 861 675 651 734 565
0267E/V
LEFT - L (230, 2204) (1475, 2204) (2823, 2204) (5199, 2204) (7236, 2204) (9346, 2204)
Al Fin Coils 795 719 826 834 981 533
Cu Fin Coils 805 797 982 991 1137 611
RS&LS1/Al Fin Coils 875 799 826 834 1011 633
RS&LS1/Cu Fin Coils 885 877 982 991 1167 741
RIGHT - R (230, 32) (1475, 32) (2823, 32) (5199, 32) (7236, 32) (9346, 32)
Al Fin Coils 795 724 1092 1131 1250 535
Cu Fin Coils 805 802 1248 1288 1406 613
RS&LS1/Al Fin Coils 875 804 1092 1131 1280 665
RS&LS1/Cu Fin Coils 885 882 1248 1288 1436 743
0287E/V
LEFT - L (230, 2204) (1510, 2204) (2780, 2204) (4710, 2204) (7225, 2204) (9105, 2204) (10463, 2204)
Al Fin Coils 795 719 838 848 714 476 421
Cu Fin Coils 805 786 967 1023 889 605 475
RS&LS1/Al Fin Coils 875 799 838 848 714 556 501
RS&LS1/Cu Fin Coils 855 866 967 1023 889 685 555
RIGHT - R (230, 32) (1510, 32) (2780, 32) (4710, 32) (7225, 32) (9105, 32) (10463, 32)
Al Fin Coils 795 724 1104 1145 1063 508 421
Cu Fin Coils 805 778 1233 1320 1238 637 475
RS&LS1/Al Fin Coils 875 804 1104 1145 1063 588 501
RS&LS1/Cu Fin Coils 885 858 1233 1320 1238 717 555
NOTES:1. RS = Reduced Sound Option, LS = Low Sound Option
