JOHNSON CONTROLS
160
FORM 201.23-NM2
ISSUE DATE: 3/9/2015
SECTION 6 - TECHNICAL DATA
YCIV

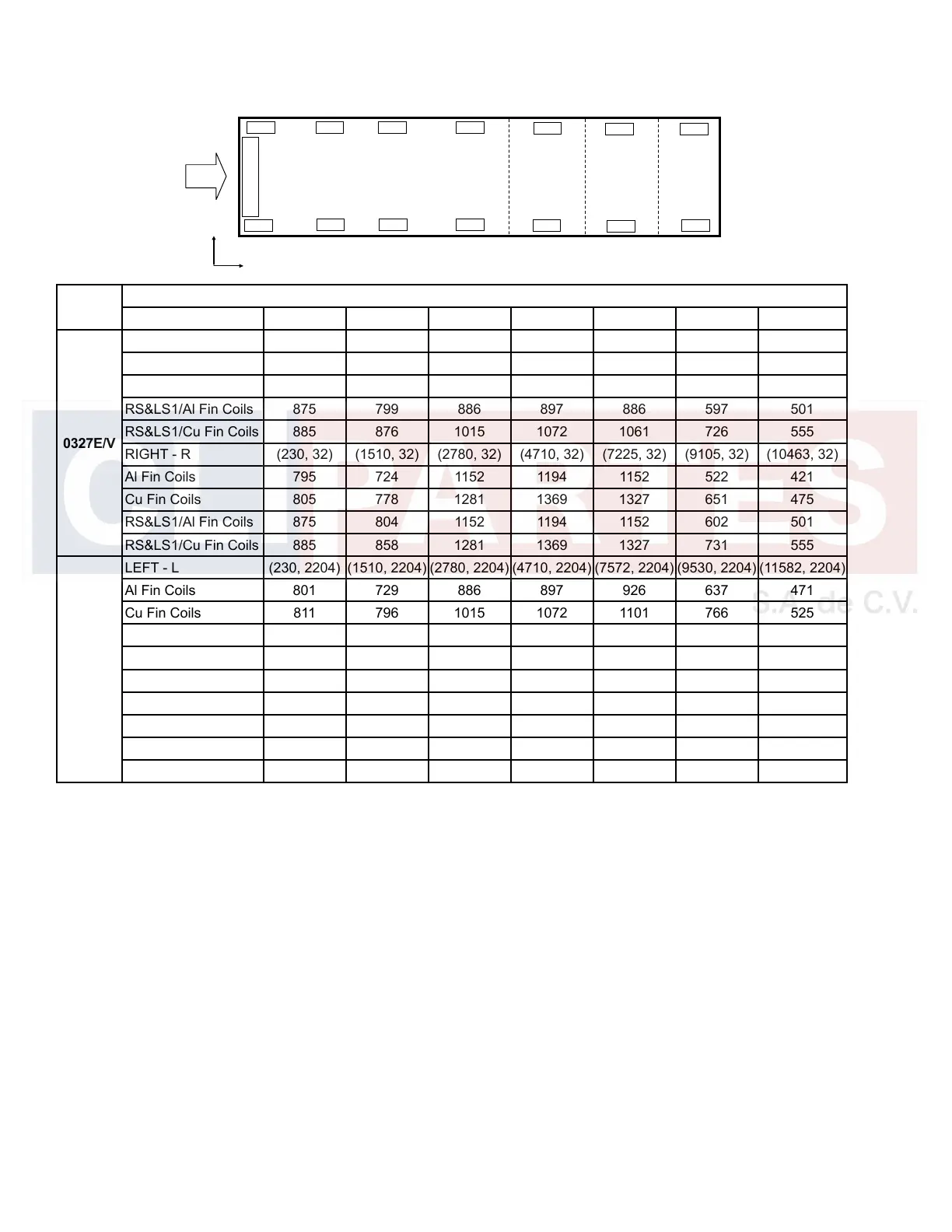

ISOLATOR LOCATIONS (X, Y) - MM. AND POINT LOADS - KG
1 2 3 4 5 6 7
0327E/V
LEFT - L (230, 2204) (1510, 2204) (2780, 2204) (4710, 2204) (7225, 2204) (9105, 2204) (10463, 2204)
Al Fin Coils 795 719 886 897 886 517 421
Cu Fin Coils 805 786 1015 1072 1061 646 475
RS&LS1/Al Fin Coils 875 799 886 897 886 597 501
RS&LS1/Cu Fin Coils 885 876 1015 1072 1061 726 555
RIGHT - R (230, 32) (1510, 32) (2780, 32) (4710, 32) (7225, 32) (9105, 32) (10463, 32)
Al Fin Coils 795 724 1152 1194 1152 522 421
Cu Fin Coils 805 778 1281 1369 1327 651 475
RS&LS1/Al Fin Coils 875 804 1152 1194 1152 602 501
RS&LS1/Cu Fin Coils 885 858 1281 1369 1327 731 555
0357E/V
163
LEFT - L (230, 2204) (1510, 2204) (2780, 2204) (4710, 2204) (7572, 2204) (9530, 2204) (11582, 2204)
Al Fin Coils 801 729 886 897 926 637 471
Cu Fin Coils 811 796 1015 1072 1101 766 525
RS&LS1/Al Fin Coils 881 809 886 897 926 717 551
RS&LS1/Cu Fin Coils 891 876 1015 1072 1101 846 605
RIGHT - R (230, 32) (1510, 32) (2780, 32) (4710, 32) (7572, 32) (9530, 32) (11582, 32)
Al Fin Coils 801 734 1152 1194 1192 642 471
Cu Fin Coils 811 788 1281 1369 1367 771 525
RS&LS1/Al Fin Coils 881 814 1152 1194 1192 722 551
RS&LS1/Cu Fin Coils 891 868 1281 1369 1367 851 605
NOTES:1. RS = Reduced Sound Option, LS = Low Sound Option
HIGH EFFICIENCY, SI (CONT'D)
