JOHNSON CONTROLS
36
FORM 201.23-NM2
ISSUE DATE: 3/9/2015
SECTION 2 - PRODUCT DESCRIPTION

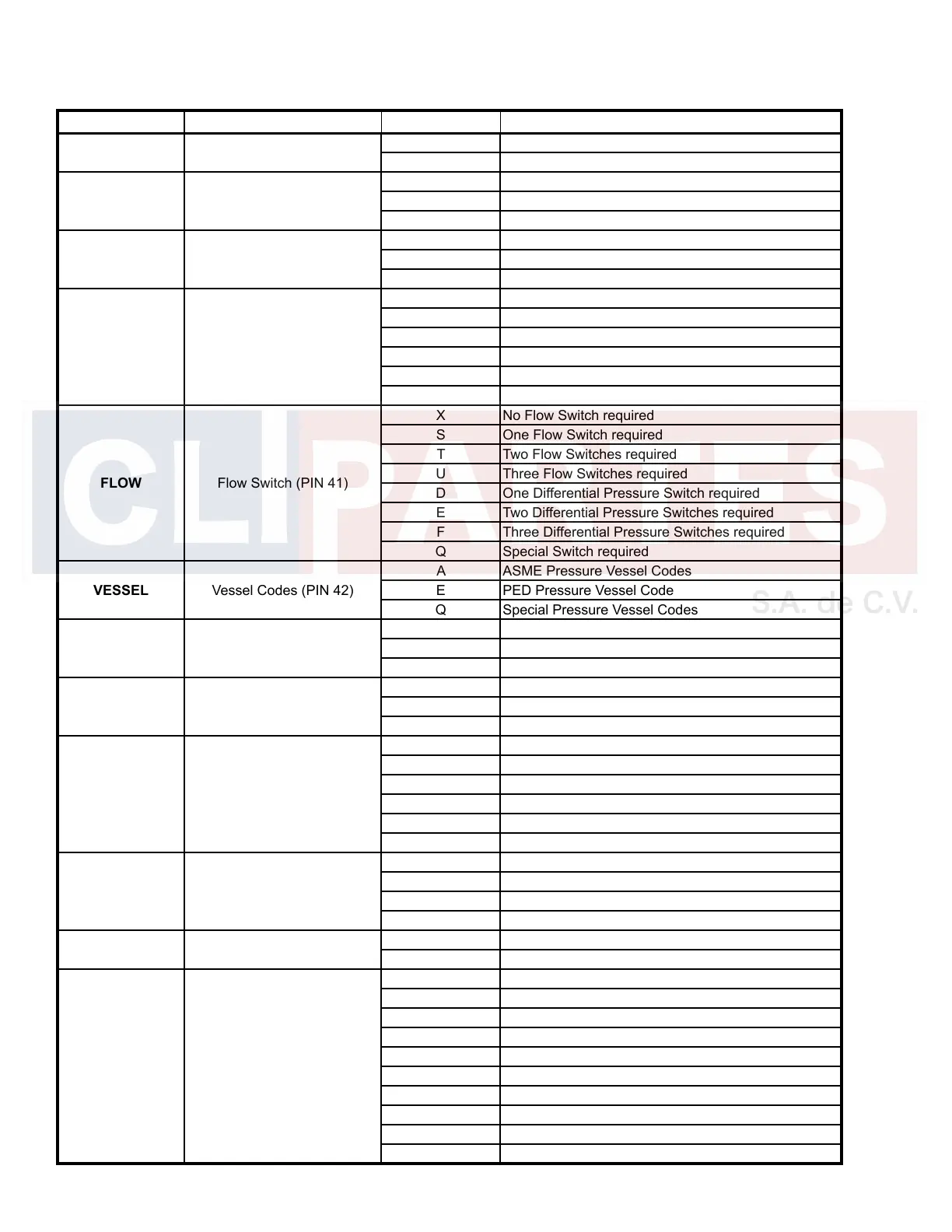

COMPLETE PIN NUMBER DESCRIPTION (CONT'D)
FEATURE DESCRIPTION OPTION DESCRIPTION
HTR Crankcase Heater (PIN 37)
H Compressor Crankcase Heaters
Q Special quote
DWP DWP (PIN 38)
X 150psig DWP
3 300psig DWP
Q Special DWP
INS Insulation (PIN 39)
X 3/4” Cooler Insulation
D 1-1/2” Cooler Insulation
Q Special Cooler Insulation
FLANGES Flanges (PIN 40)
X No Flanges required
W Weld Flange Kit required
V Victaulic Flange Kit required
M Weld Flange with Mating Flange
F Victaulic Flange with Welded Mating Flange
Q Special Flanges required
FLOW Flow Switch (PIN 41)
X No Flow Switch required
S One Flow Switch required
T Two Flow Switches required
U Three Flow Switches required
D One Differential Pressure Switch required
E Two Differential Pressure Switches required
F Three Differential Pressure Switches required
Q Special Switch required
VESSEL Vessel Codes (PIN 42)
A ASME Pressure Vessel Codes
E PED Pressure Vessel Code
Q Special Pressure Vessel Codes
CLR Cooler (PIN 43)
X Standard Cooler
R Remote Cooler
Q Special Cooler requirements
PIN44 Connections (PIN 44)
L Handed cooler left, view from control panel end
R Handed cooler right, view from control panel end
Q Special quote
COILS Coils (PIN 45)
A Aluminum Coils
C Copper Fin Coils
B Pre-Coated Fin Coils
P Post-Coated Dipped Coils
E Pre-coated Epoxy Non-slit ripple ns
Q Special Coils
HEAT Heat Recovery (PIN 46)
X Partial Heat Recovery not required
H Partial Heat Recovery required
D Desuperheater
Q Special quote
FANMOTORS Fan Motors (PIN 47)
X TEAO Fan Motors
Q Special Fan Motors
PANEL Enclosure Panels (PIN 48)
X No Enclosure Panels required
1 Wire (Full Unit) Encl Panels (factory)
2 Wire (Full Unit) Encl Panels (eld)
3 Wire/Louvered Encl Panels (factory)
4 Wire/Louvered Encl Panels (eld)
5 Louvered (cond only) Encl Panels (factory)
6 Louvered (cond only) Encl Panels (eld)
7 Louvered (full unit) Encl Panels (factory)
8 Louvered (full unit) Encl Panels (eld)
Q Special Enclosure Panels required
