JRC JLN-652 User Manual

2-20

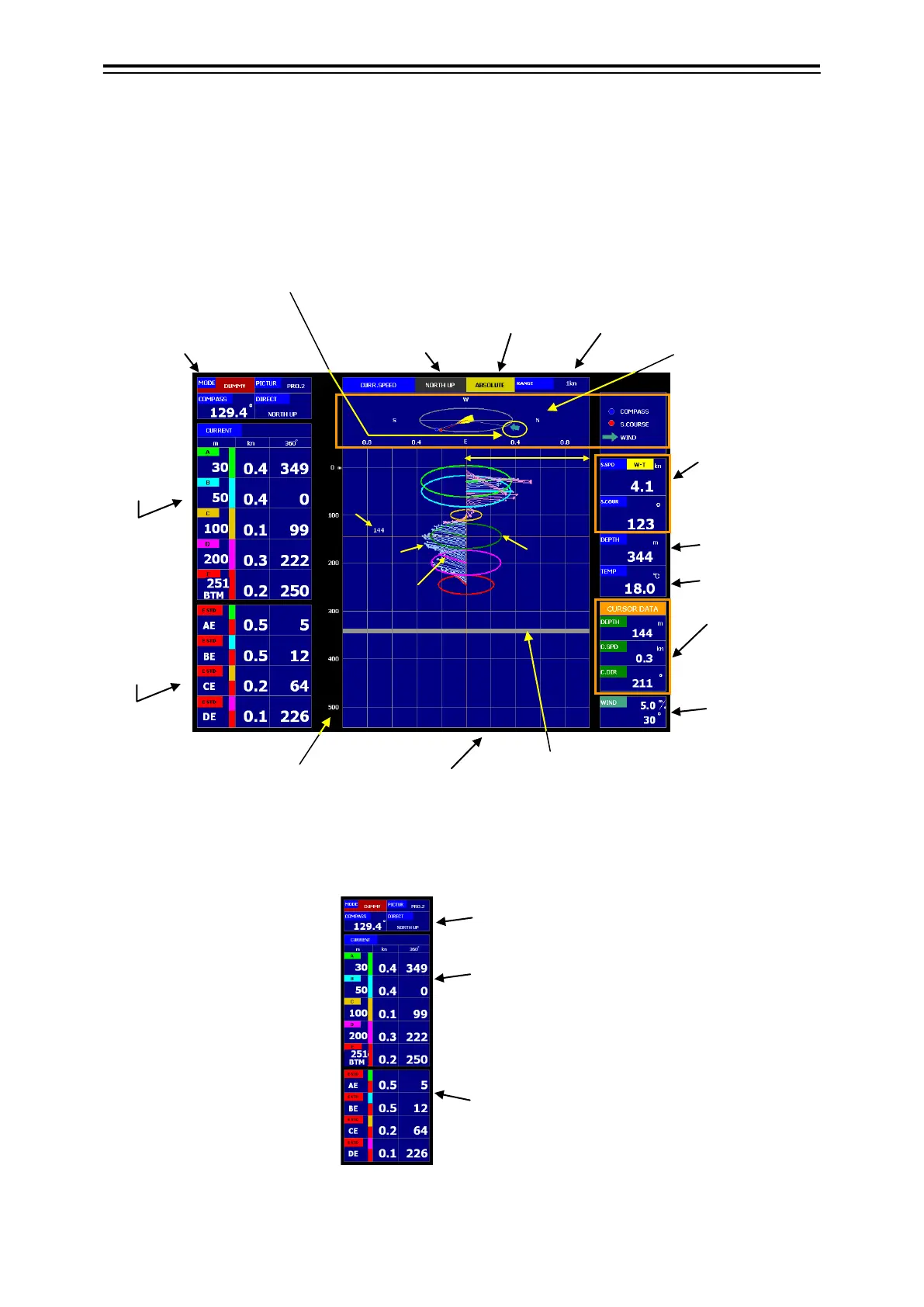

2) Profile 2 screen (ellipse graph display): Example of display
The current direction and current speed in 50 layers or less are displayed on an ellipse graph by the
vector.
Moreover, because the deflection angle and the horizontal angle of the view point that looks down
at an ellipse graph can be changed, the twist of the current and the change in swinging can be seen so
that it may peep in the sea.
Left part of the screen
Mode/Screen
Compass/Bearing
Ship Speed・Course:
Doppler S.Speed:
Bottom Tracking/
Water Tracking
GPS Ship Speed:
ＧPS
Water Temperature
Wind Speed
Wind Direction
Current Display
Absolute
Relative
Cursor Current：
Current Data
Display of
Cursor Position
Current Speed
Range of
Ellipse Graph
Ellipse Graph view Point:
View Point:
Deflection Angle
View Point:
Horizontal Angle
Depth Range of
Ellipse Graph
Bottom Depth
Wind Directiow Arrow
Absolute
Current:
Depth
Current
Speed
Direction
Relative
Current:
Standard
Layer
Current
Speed
Direction
Profile Current
Ellipse Display
Graph
Bottom Line
Bearing Standard:
North up Bearing
Head up Bearing
Ellipse Cursor:
Green
Cursor Depth
Value
Flow Speed/
Flow Direction
of D Layer
Profile
Display
Flow Speed
Range
Refer to 2.2.1”Current 1 screen (circle graph display)”
Mode/Screen
Compass/Bearing
Standard
Absolute Current:
Depth
Current Speed
Current Direction
Relative Current:
Standard Layer
Current Speed
Current Direction
