NOTE:
For console devices, configure the serial port to the following values:
•
Baud rate—9600
•
Parity—N
•
Data bits—8
•
Stop bits—1
•
Flow control—none

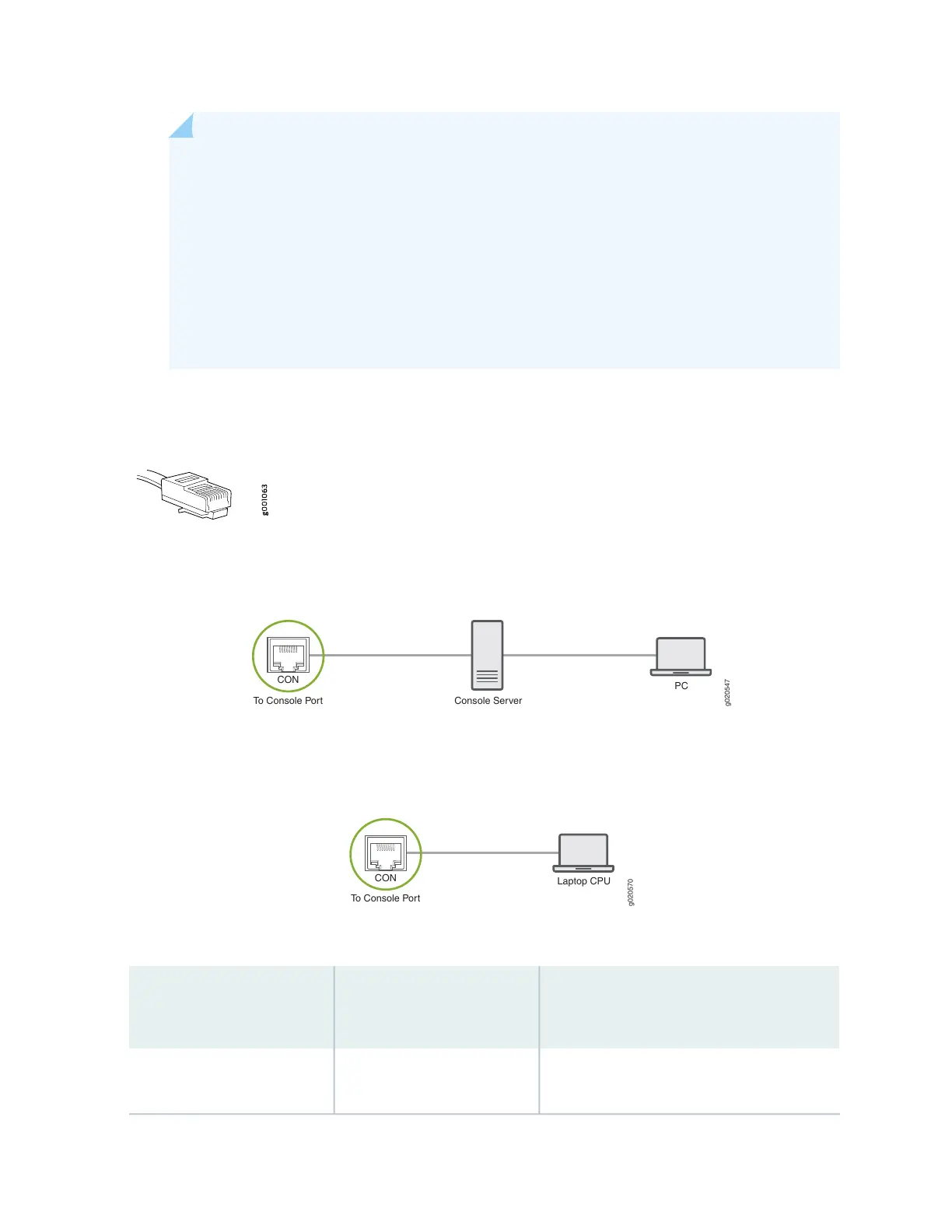

Figure 31: Console and Auxiliary Cable Connector
Figure 32: Connecting a router to a Management Console Through a Console Server
g020547
PC
To Console Por t Console Server
CON
Figure 33: Connecting a router Directly to a Management Console
g020570
Laptop CPU
To Console Por t
CON
Table 37: Console Port on the RCB
DescriptionLabel
Callout
(see Figure 29 on page 101)
Connect a laptop or console terminal to
configure the router.
CON3
