Juniper MX10003 Hardware Guide

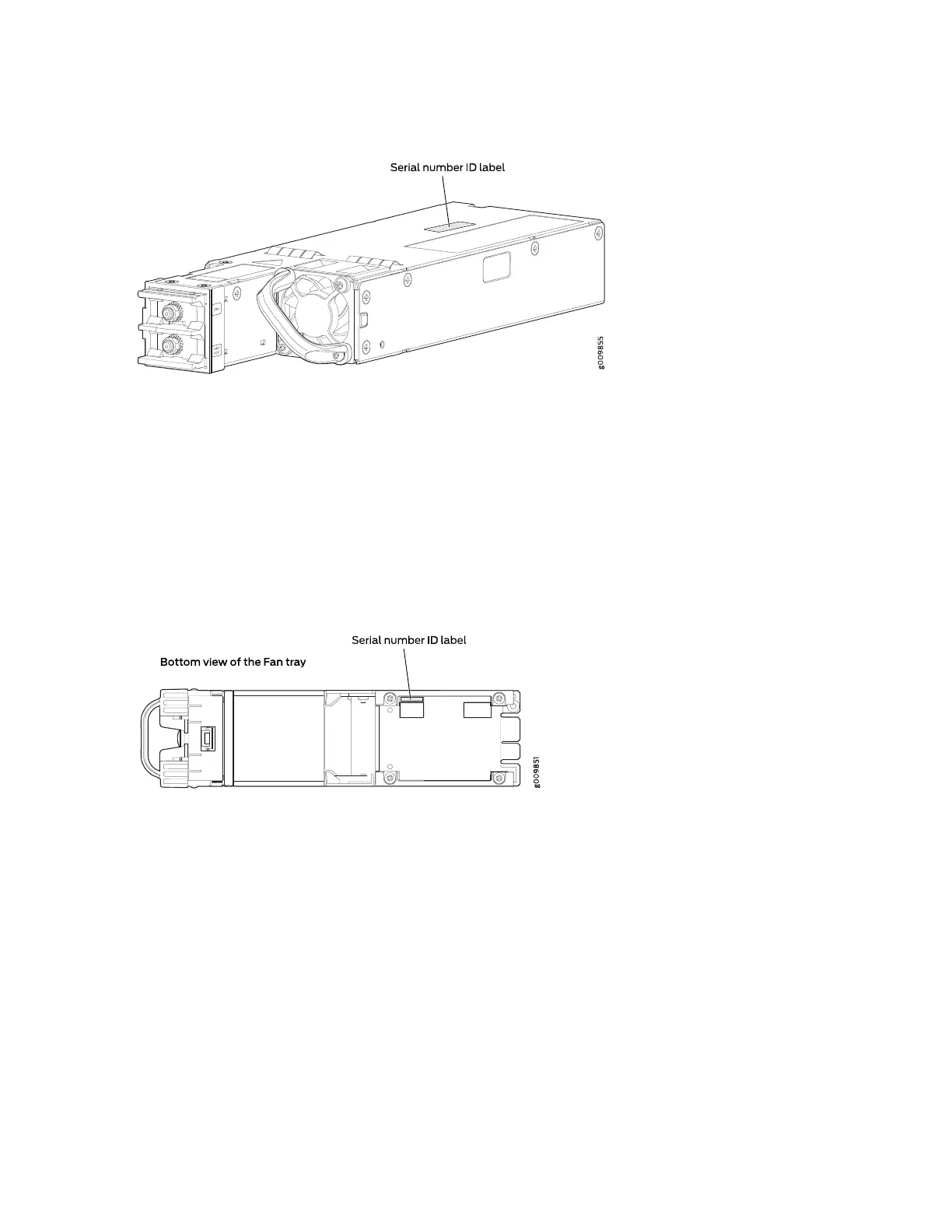

Figure 57: MX10003 DC Power Supply Serial Number Location
Locating the Serial Number ID Label on MX10003 Fan Module
The four fan modules installed in a MX10003 are field-replaceable units (FRUs). For each FRU, you must
remove the FRU from the router chassis to see the FRU serial number ID label.
Fan module–The serial number ID label is located at the base of the fan module. See Figure 58 on page 168.
Figure 58: MX10003 Fan Module Serial Number Location
Locating the Serial Number ID Labels on MX10003 Line Cards
The serial number ID label for an MX10003 MPC is located on the connector end of the card. See
Figure 59 on page 169.
168

Juniper MX10003 Specifications

General

Model	MX10003
Category	Network Router
Routing Engine	RE-MX10003
Throughput	2.4 Tbps
Operating System	Junos OS
Power Supply	AC or DC
Rack Units/Form Factor	3 U
Redundancy	Power supplies, fans
Slot Count	3
