Juniper MX10003 - MX10003 DC Power Supply Module Leds

Each DC power supply weighs approximately 4.4 lb (1.99 kg) and consists of a handle, an ejector lever, a
status LED, and a terminal block that provides a single DC input (–48 VDC and return) that requires a
dedicated customer-site circuit breaker. We recommend that you use a dedicated customer-site circuit
breaker rated for 40 A (–48 VDC) minimum, or as required by local code.

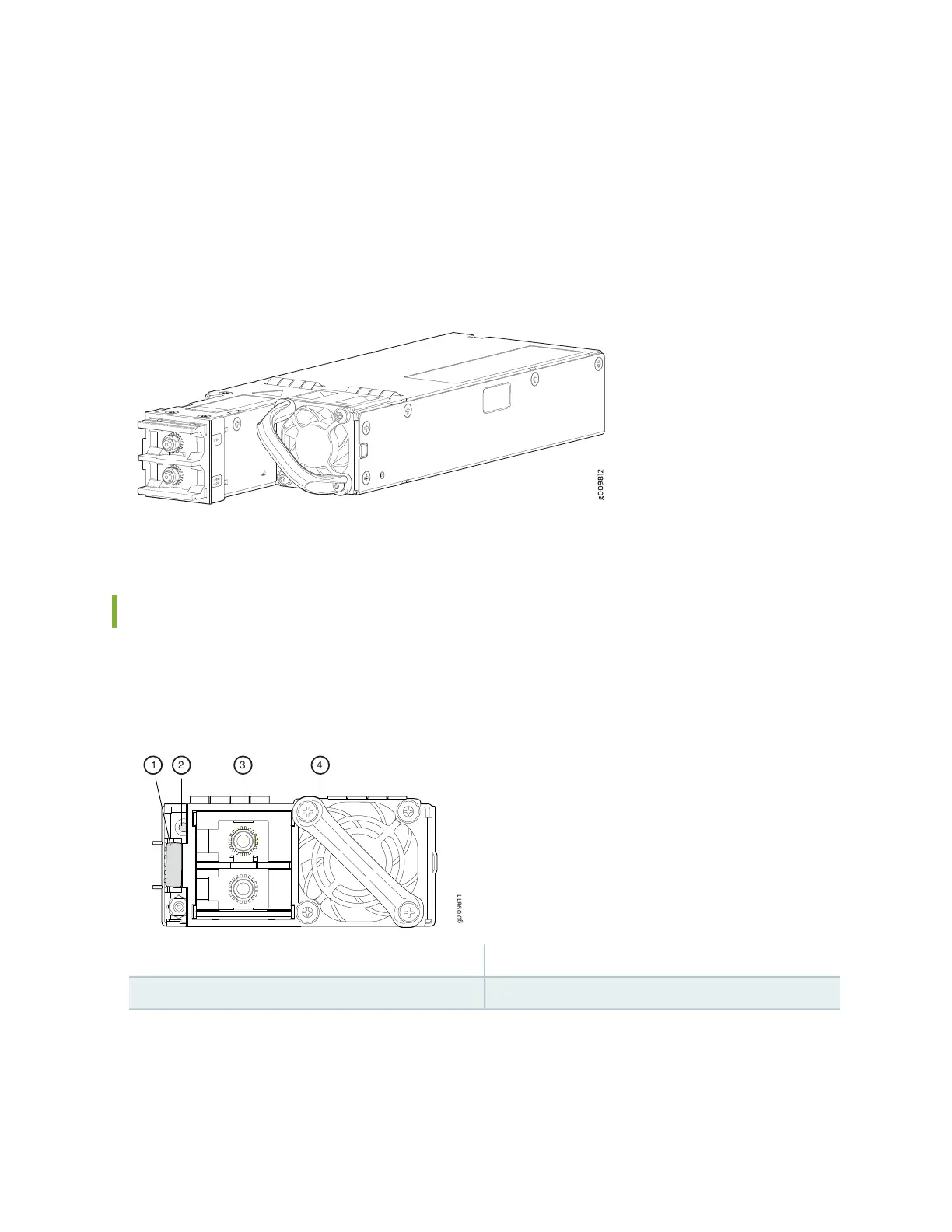

Figure 13 on page 42 shows the power supply.
Figure 13: DC Power Supply
MX10003 DC Power Supply Module LEDs
Figure 14 on page 42 shows the DC power supplies components along with the status LED.
Figure 14: DC Power Supplies Components
g0 0 9811
21 3 4
3—1— DC inlet cable lug pointEjector lever
4—2— HandleStatus LED
