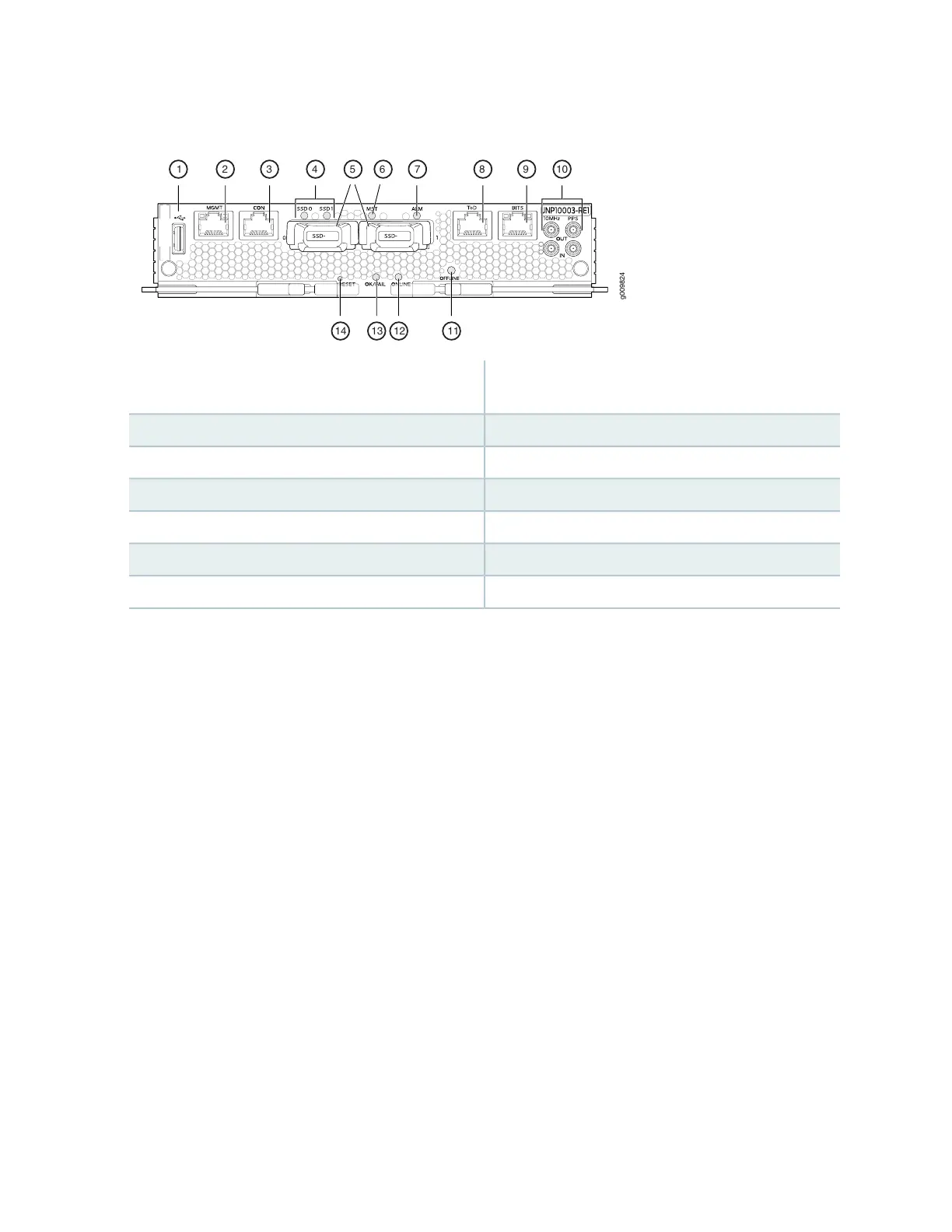

Figure 16: JNP10003-RE1 RCB Ports
g009824
1 2 3 4 5 6 7 8 9 10
11121314
8—1— Time of day (ToD) port with LEDs (This port is
reserved for future use)
USB port
9—2— BITS port with LEDsManagement (MGMT) port
10—3— Clocking portsConsole (CON) port
11—4— OFFLINE buttonSSD LEDs
12—5— ONLINE LEDSSD slots (0 and 1)
13—6— OK/FAIL LEDMaster (MST) LED
14—7— RESET buttonAlarm (ALM) LED
Figure 17 on page 50 shows the front panel of the MX10003 RCB with limited encryption support (model
