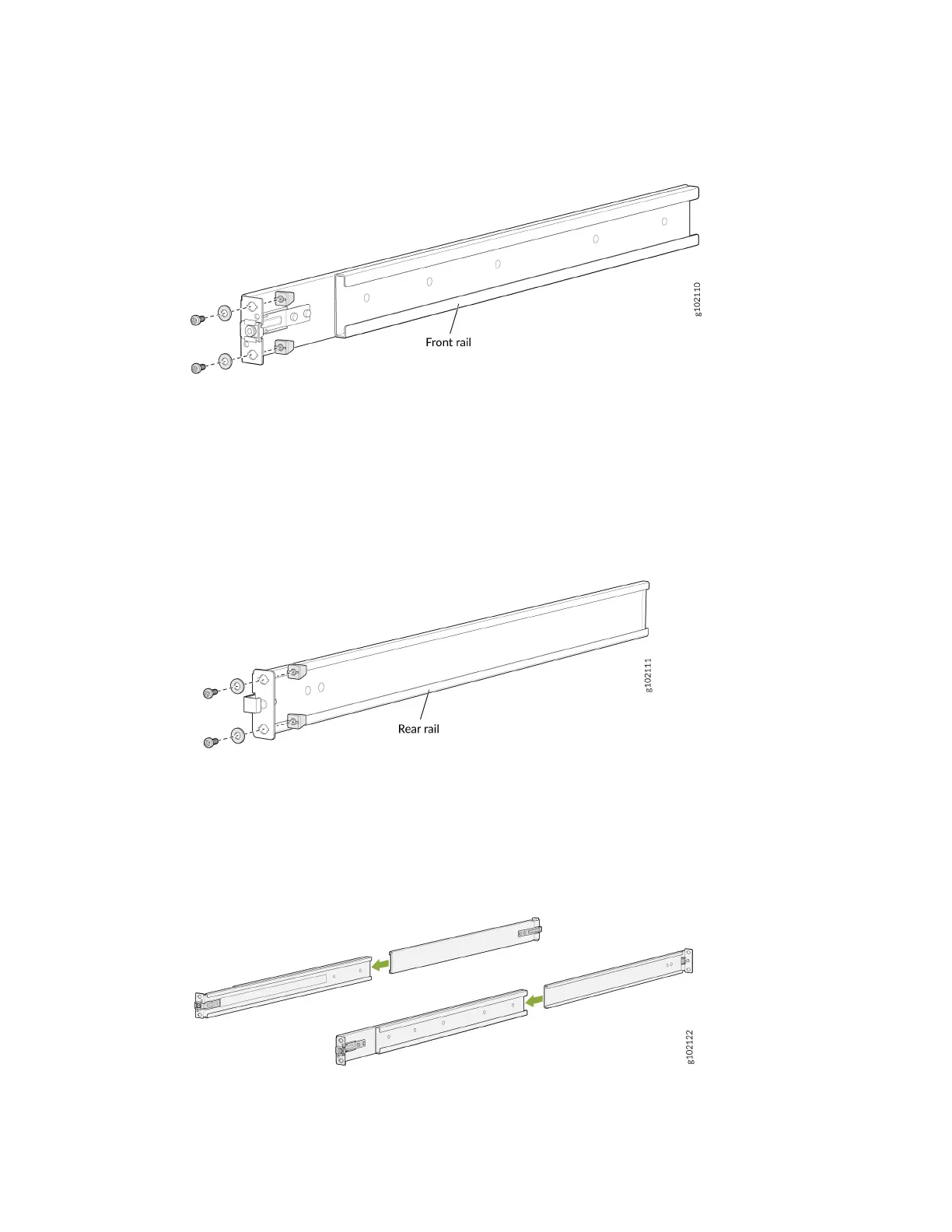

Figure 23: Removing the Guide Blocks from the Front Mounng Rail
b. Remove the guide blocks from the rear mounng rail by loosening the screws and washers.
Preserve the guide blocks, screws, and washers for later use.
Figure 24: Removing the Guide Blocks from the Rear Mounng Rail
c. Slide the rear oang rails into the front rails.
Figure 25: Assemble the Mounng Rails
5. Install the mounng rails on the rack:
