Measuring temperature
The Model 2000 measures temperature with thermocouples. The temperature measurement
ranges available depend on the type of thermocouple chosen.
Thermocouples can be connected to the Model 2001-TCSCAN card, which plugs into the op-
tion slot of the Model 2000, or to an external thermocouple card, such as a Model 7057A, 7402,
or 7014 installed in a Model 7001 or 7002 Switch System.
Connections
2001 MULTIMETER
Model 2000
SHIFT
CH1REM
TALK
LSTN
SRQ
STATREL FILT
4W
BUFFER
MATH
REAR
SCAN
TIMER
STEP CH2 CH3 CH4 CH5 CH6 CH7 CH
8
CH9 CH1
0
HOLD TRIG FAST MED SLOW AUTO ERR
OUT A HI
OUT A LO
Input
LO
Input
HI
Note: This thermocouple card
must be inserted into a
Keithley Model 2000.
Note: Front or rear inputs
can be used.
+
-
CH 2
2001-TCSCAN
2-28 Basic Measurements

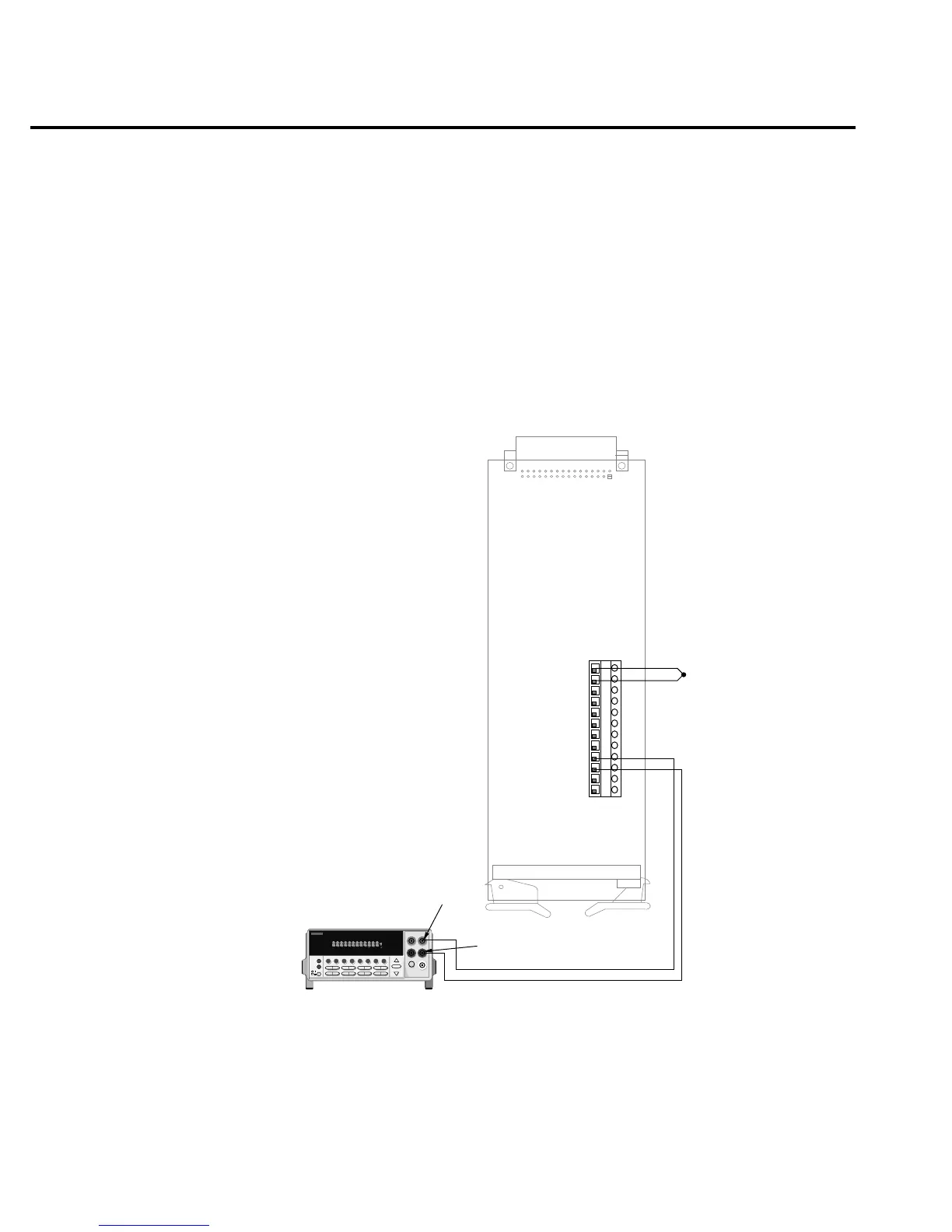

Figure 2-8
Thermocouple
temperature
measurements
