Keithley 2000 - External Scanning Example with Model 7001

Model 7001
(from "reset setup")
SCAN CHANNELS 1!1-1!10
CONFIGURE SCAN
CHAN-CONTROL
CHANNEL-SPACING
TRIGLINK
ASYNCHRONOUS
CHAN-COUNT
10
SCAN-CONTROL
SCAN-COUNT
1
Model 2000
(from "factory setup")
SHIFT-CONFIG
TYPE:EXT
MIN CHAN: 001
MAX CHAN: 010
TIMER? OFF
RDG CNT: 0010
ENTER
EX TRIG
STEP or SCAN
STEP
RECALL (10 readings)
, , ,
EXIT
1
2
3
4
5
6
7

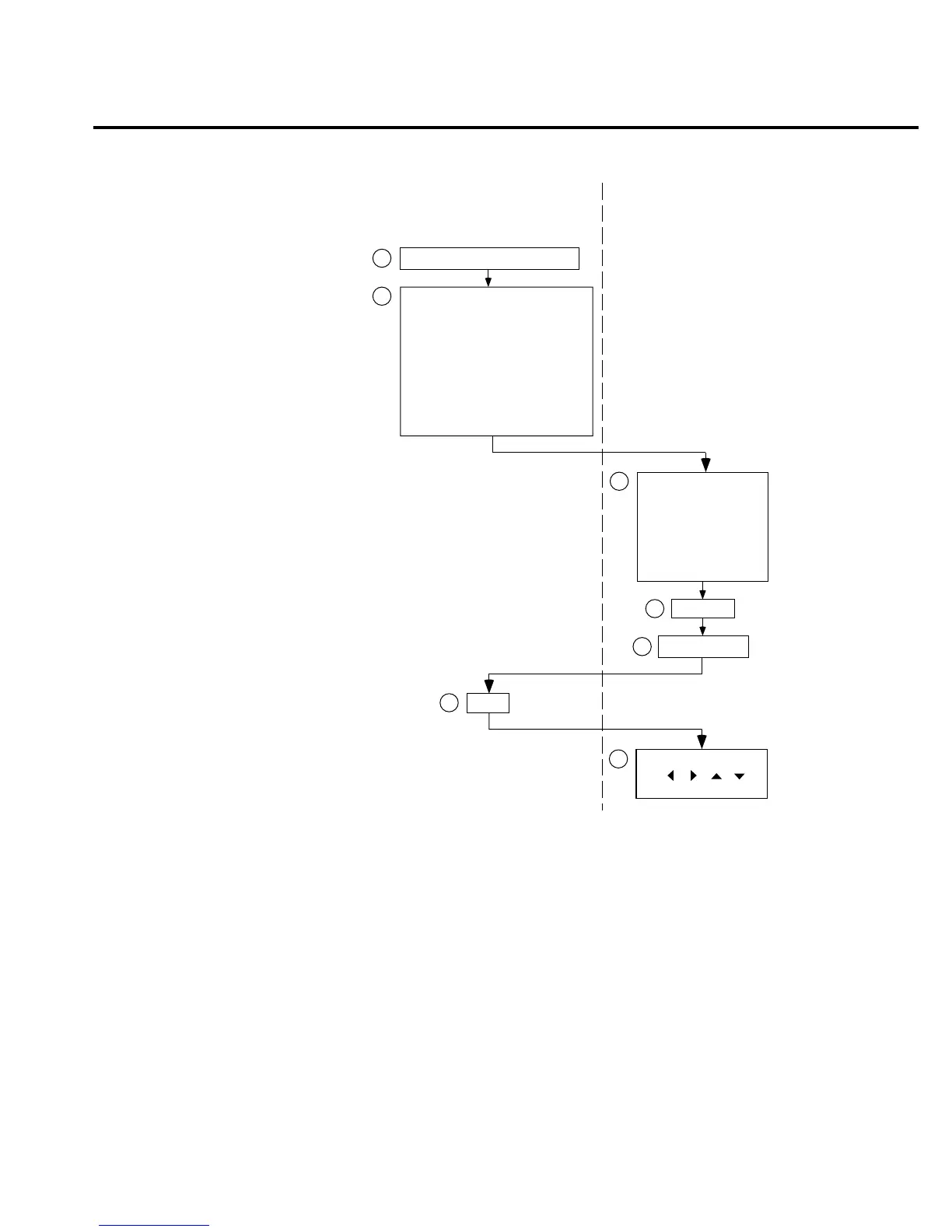

Figure 3-16
External scanning
example with
Model 7001
Measurement Options 3-31
