Keysight Technologies B1505A User Manual

Keysight B1505A User’s Guide, Edition 12 3-25
Accessories

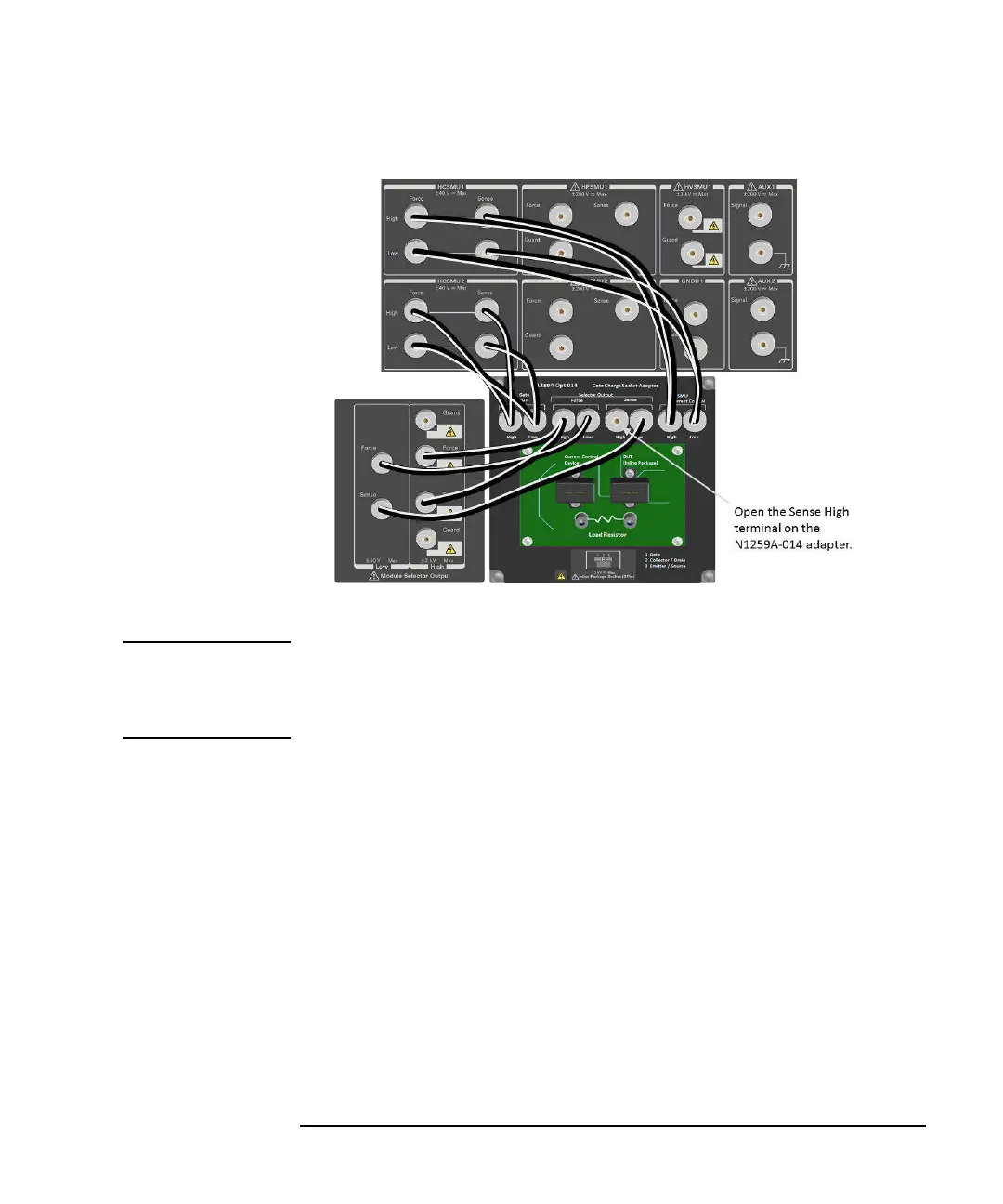

Figure 3-9 Connection Example for High Current Gate Charge Measurement
NOTE For the high current gate charge measurement, connect the Selector Output Sense
High terminal on the fixture to the Selector Output Force High terminal on the
N1259A-014 adapter. Measurement may fail depending on the device
characteristics if it is connected to the Selector Output Sense High terminal.
