3-74 Keysight B1505A User’s Guide, Edition 12
Accessories
• Two 20 cm large alligator clip - lug cables, two banana plugs, and two nuts
• Four 30 cm small alligator clip - lug cables, four banana plugs, four nuts, and
four spare clips
• Two 30 cm large alligator clip - lug cables, two banana plugs, and two nuts

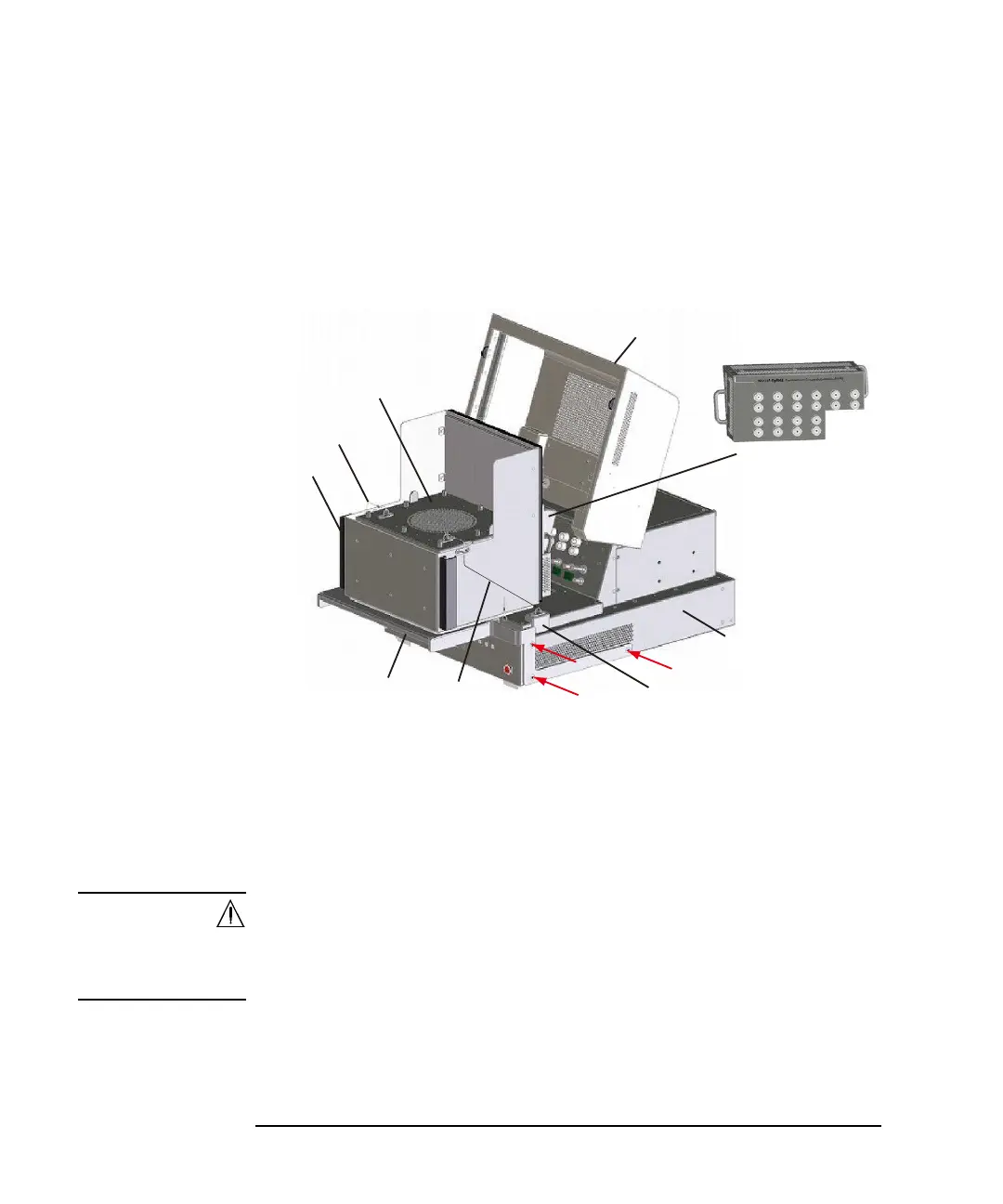

For the setup image, see the following figure.
See the following simple instruction.
1. Remove the socket module from the test fixture.
2. Install the pedestal. The N1265A fixture has three screw holes on the both sides
respectively. And, the brackets of the pedestal have the screw holes. Secure the
pedestal to the fixture using the dedicated screws supplied with this option.
WARNING For safety, firmly secure the pedestal.
Do not place other than those specified on the pedestal.
Pour des raisons de sécurité, attacher solidement le piédestal.
Ne rien placer d’autre que ce qui est spécifié sur le piédestal.
3. If you use the thermocouple, connect the thermocouple to the K Thermocouple
terminal.
4. Face the terminals on the adapter rear panel to the fixture output terminals, and
Adapter
Pedestal
Enclosure
Enclosure
Cover
Fixture Cover
Left side wire
Right side wire
Interlock switch
under the wire head
Test Fixture
To Next Page
