3-90 Keysight B1505A User’s Guide, Edition 12
Accessories
AC/DC Guard input connector
SHV(jack) connector. For connecting the composite cable (B1507-61720)
from the AC/DC Guard output connector of the N1272A selector. The
composite cable is supplied with the N1273A.
2. Frame ground terminal
Screw terminal. For connecting the composite cable (B1507-61720) from the
frame ground terminal of the N1272A. The composite cable is supplied with the
N1273A.
3. Interlock connector
Interlock connector. For connecting the composite cable (B1507-61720) from
the Interlock output connector of the N1272A. The composite cable is supplied
with the N1273A.

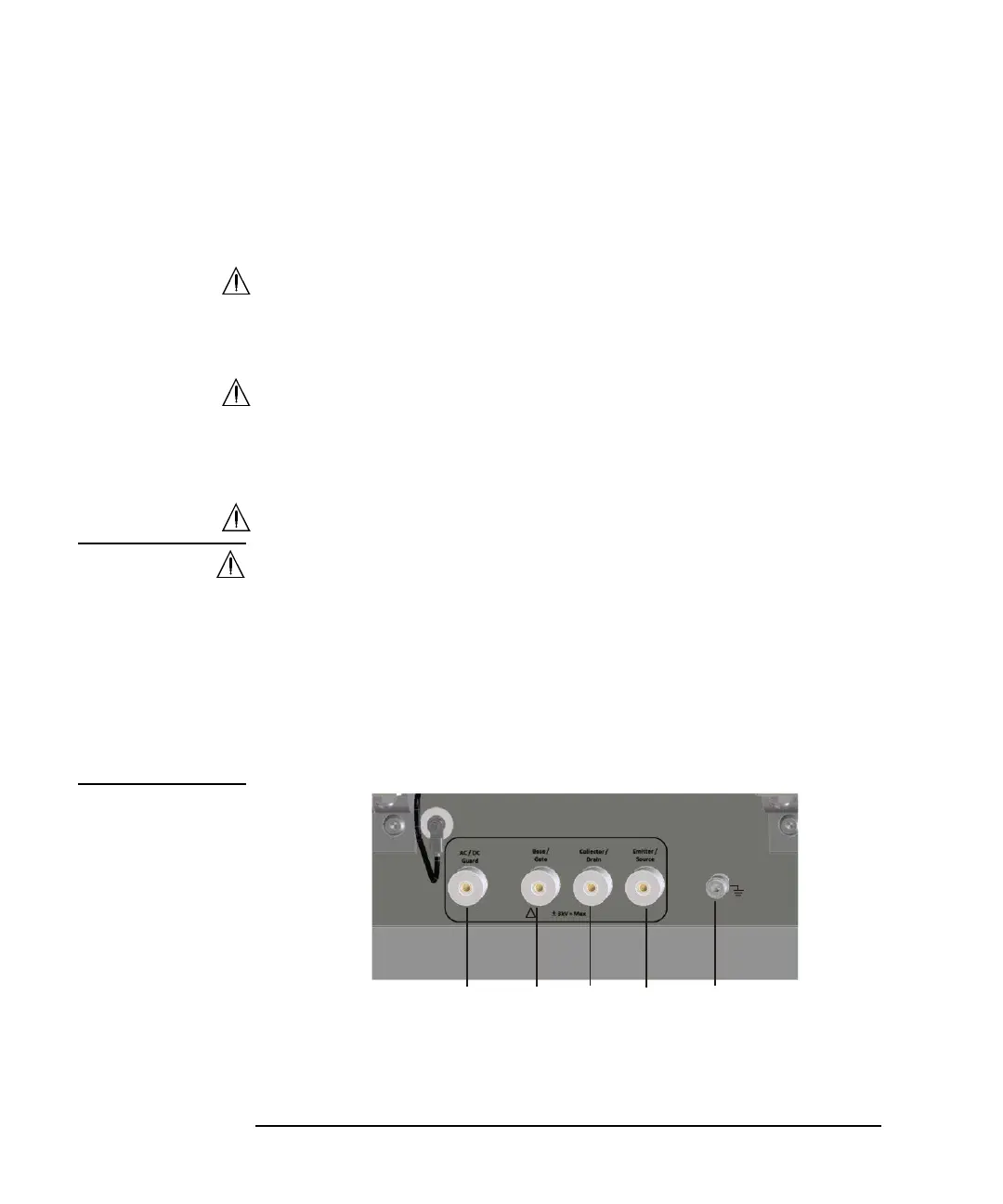

Output Terminal Panel
WARNING Set the instrument output off before connecting or disconnecting connection
wire.
Press the B1505A front panel
Stop key to set the module output off. And confirm
that the B1505A front panel High Voltage indicator is not lit.
Désactivez la sortie de l'appareil avant de brancher ou de débrancher un câble
de connexion.
Appuyez sur la touche
Stop du panneau avant du B1505A pour désactiver la
sortie. Et confirmez que l'indicateur de tension High du panneau avant du
B1505A n'est pas allumé.
4
3
2
1
5
!
