Keysight Technologies B1505A User Manual

Keysight B1505A User’s Guide, Edition 12 3-89
Accessories

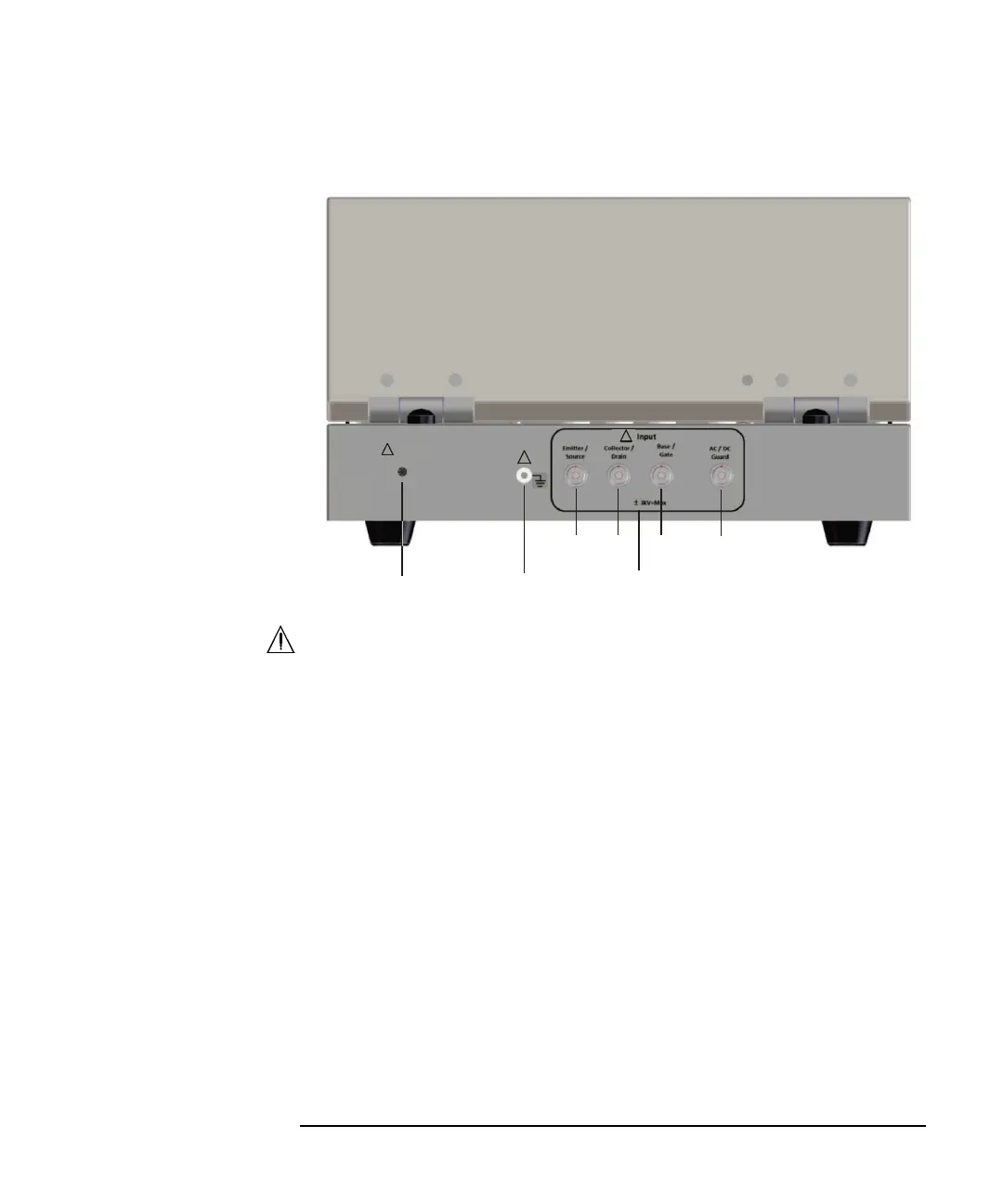

Rear Panel
1. Input
• Emitter/Source input connector
SHV(jack) connector. For connecting the composite cable (B1507-61720)
from the Emitter/Source output connector of the N1272A selector. The
composite cable is supplied with the N1273A.
• Collector/Drain input connector
SHV(jack) connector. For connecting the composite cable (B1507-61720)
from the Collector/Drain output connector of the N1272A selector. The
composite cable is supplied with the N1273A.
• Base/Gate input connector
SHV(jack) connector. For connecting the composite cable (B1507-61720)
from the Base/Gate output connector of the N1272A selector. The composite
cable is supplied with the N1273A.
1
a
b
c
d
2
3
!
!
!
Interlock
