Keysight Technologies B1505A

Keysight B1505A User’s Guide, Edition 12 3-93
Accessories
• Universal Socket Module (N1273A-011)
This is a blank module, kind of a do-it-yourself kit for supporting a variety of
packaged devices. This module can be used by mounting your desired socket or
packaged device.

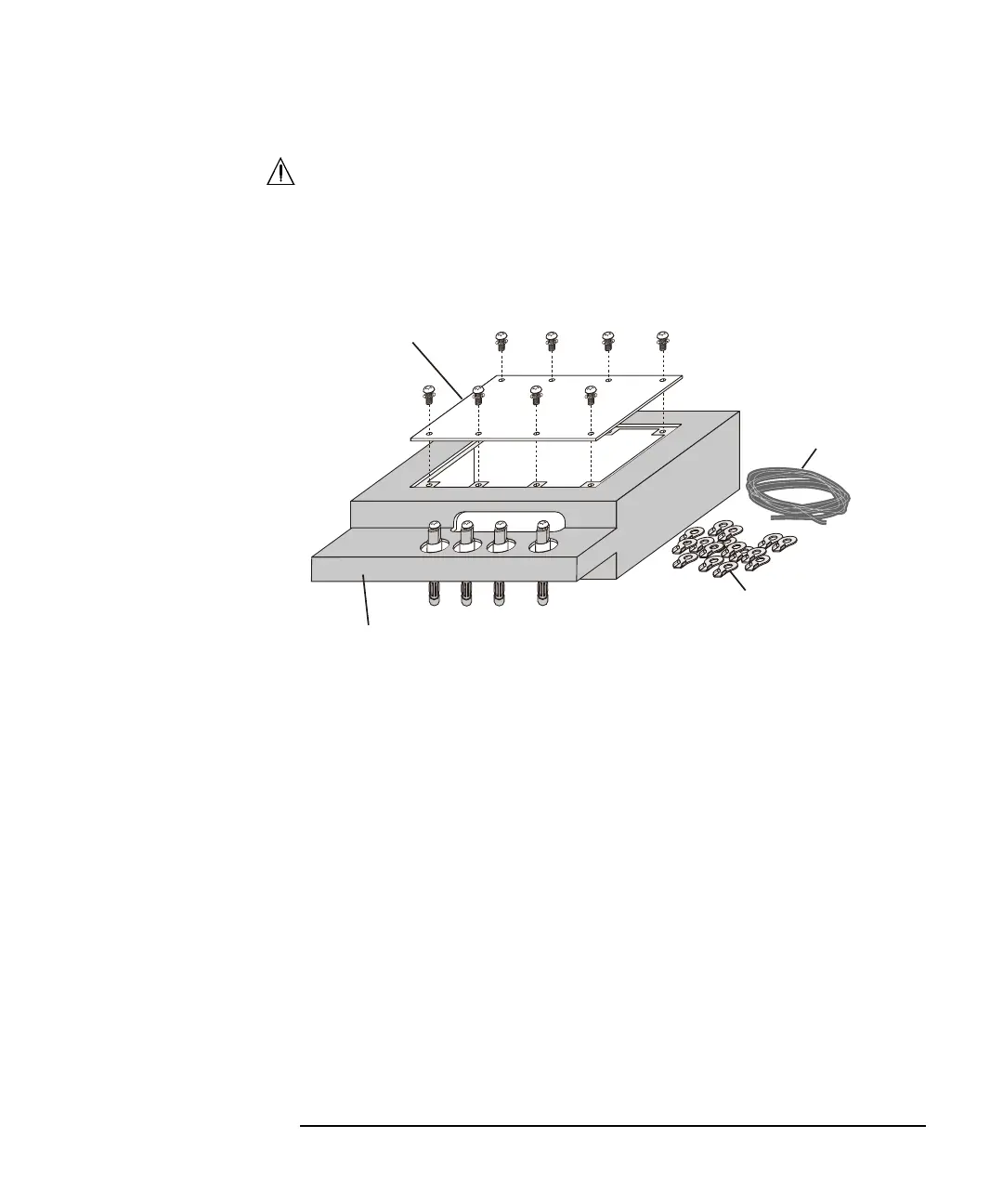

Figure 3-31 Universal Socket Module
To use this module, see the following simple instruction. For the dimensions and
screw holes of a blank board, see Figure 3-32. You can use their handmade
socket modules with the same manner as the 3-pin Inline Package Socket
Module. See “3-pin Inline Package Socket Module (supplied with the N1273A)”
on page 3-92.
1. Prepare the following parts.
• blank board suitable for mounting the socket or packaged device
• screws for fixing the blank board, supplied with the socket module
• wire (2 m, 1 ea.) supplied with the socket module
• lug terminals (14 ea.) supplied with the socket module
• socket, if you use, and packaged device under test (DUT)
• T-10 and T-15 Torx screwdrivers
• 9 mm wrench
• caulking tool for lug terminals, 2.0sq
Dummy board or
Blank board
Lug terminals
Wire
Universal socket module (blank module)
