Removing/Installing the Display (2090-1096)
Step 1. Remove the sub panel as previously described.

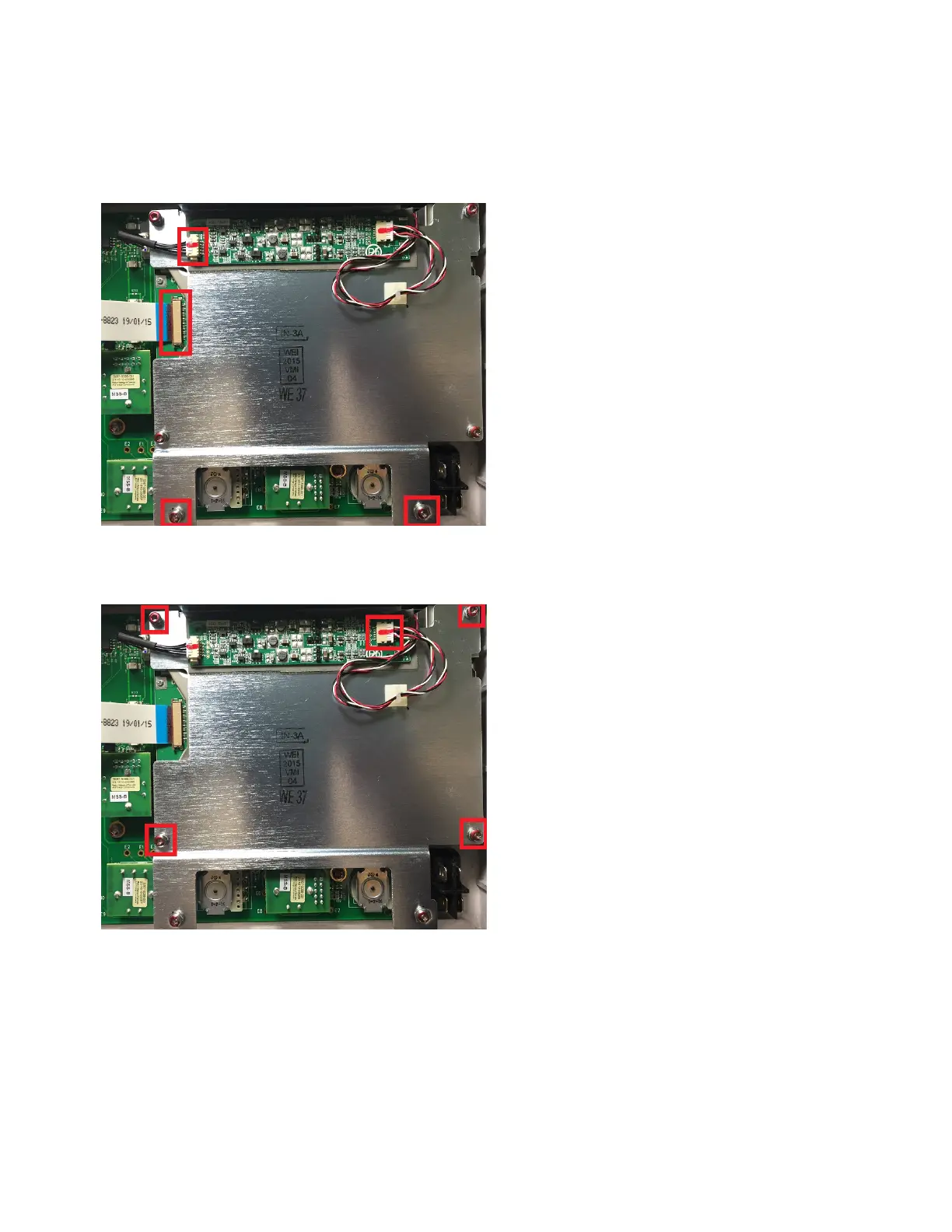

Step 2. Disconnect two cables and remove two screws using a T10 driver.
Step 3. Disconnect one cable and remove four screws using a T10 driver to remove display from
bracket.
Step 4. To install the display, perform the above steps in reverse order.
Removing/Installing the Binding Post Board (5067-5094)
Step 1. Remove the sub panel as previously described.
Step 2. Disconnect the binding post board to front panel board ribbon cable and remove sixteen 1/4 in.
nuts from the assembly.
9 Service and Maintenance
456 Keysight N6705C Operating and Service Guide
