Step 3. Remove the binding post board.
Step 4. To install the binding post board, perform the above steps in reverse order.

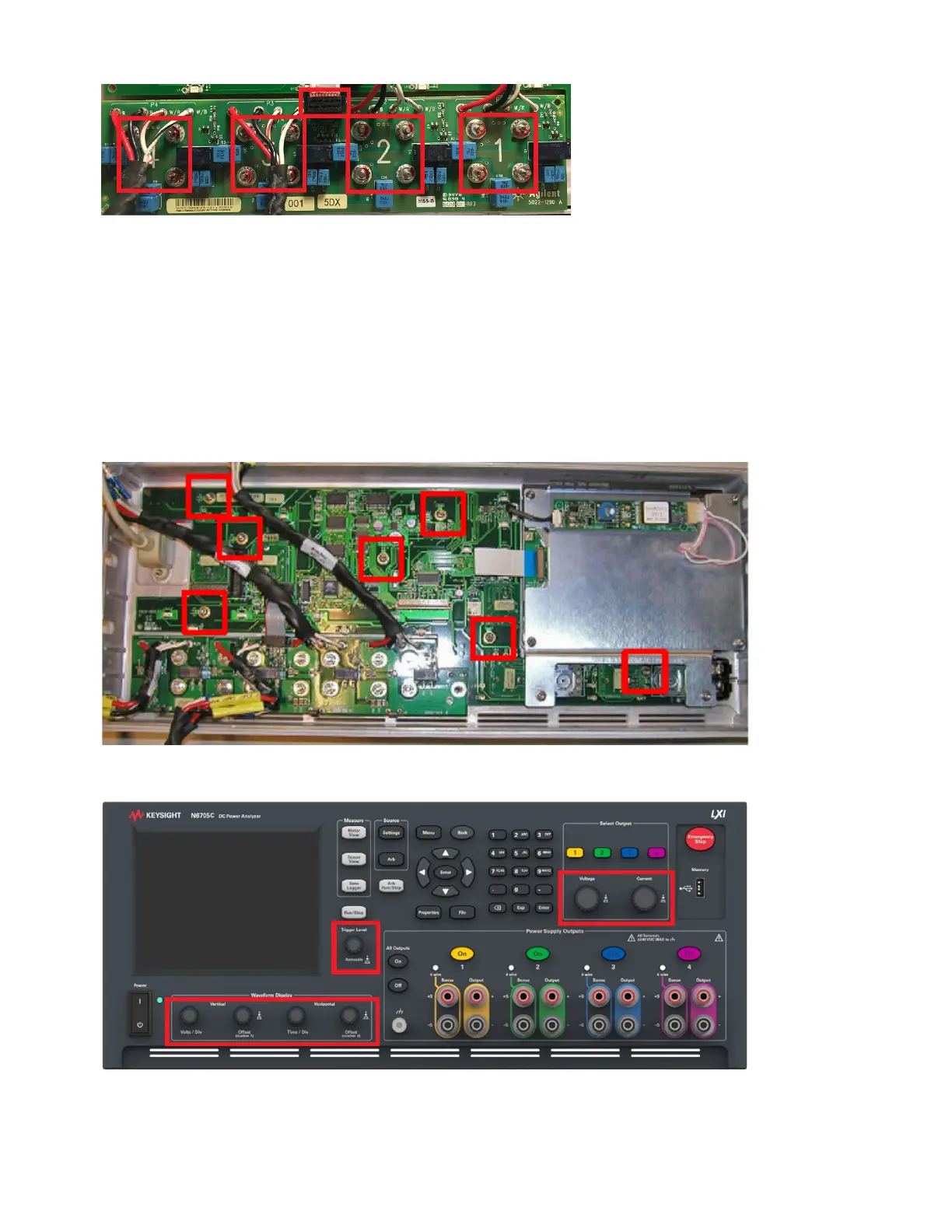

Removing/Installing the Front Panel Board (5067-5096)
Step 1. Remove the sub panel as previously described.
Step 2. Remove the display as previously described.
Step 3. Remove seven screws using a T10 driver.
Step 4. Remove the seven knobs from the front panel.
Step 5. Remove the front panel board.
Step 6. To reinstall the front panel board, perform the above steps in reverse order.
Keysight N6705C Operating and Service Guide 457
