382 Keysight Technologies N9040B UXA Signal Analyzer Service Guide
Assembly Replacement Procedures
RF Area - Options 508, 513, 526
3. Refer to Figure 15-29 and Figure 15-30. Remove cables W8, W16, W17,
W18, W21 W30, and W33 from the A13 Front End assembly.

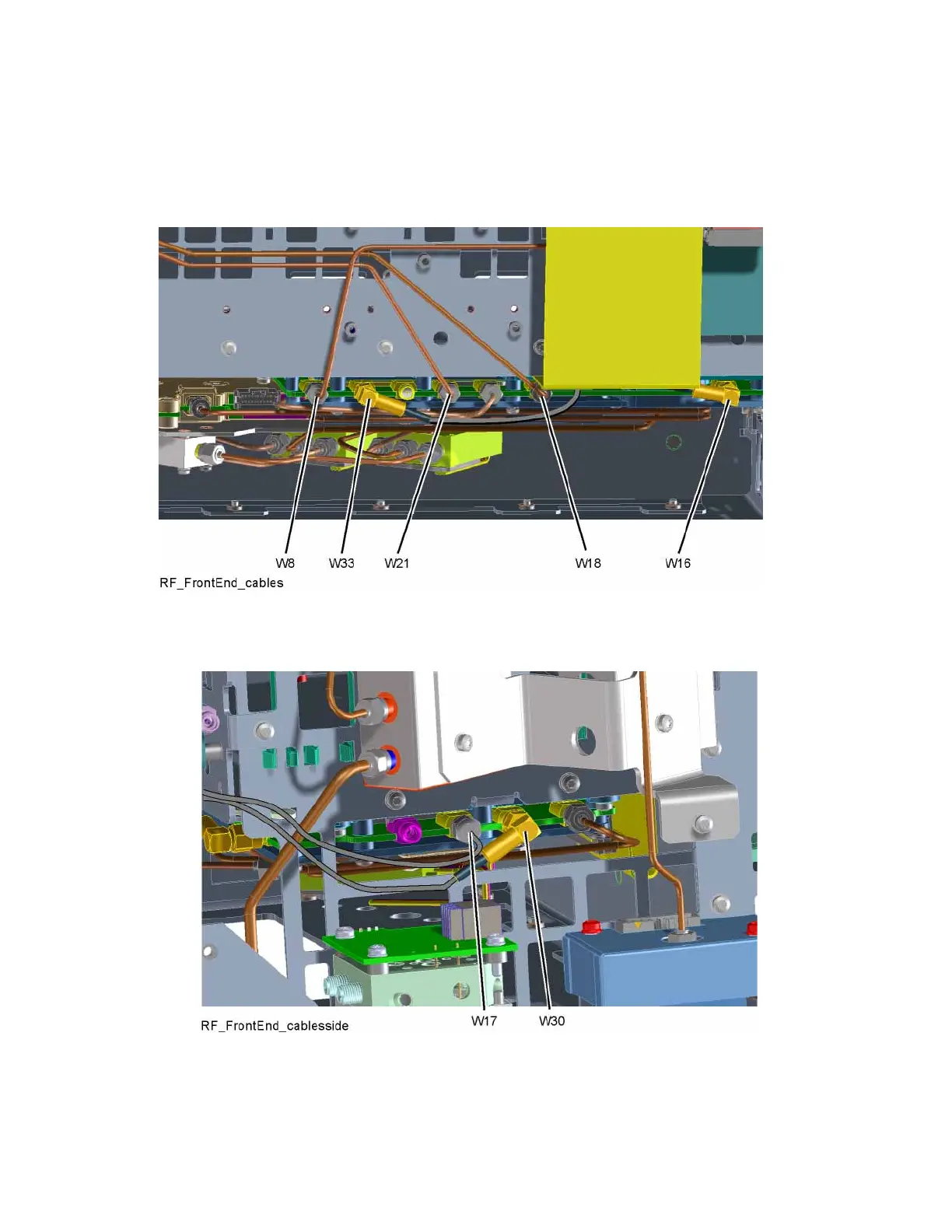

Figure 15-29 Front End Assembly Cables Removal - Options 508, 513, 526
Figure 15-30 Front End Assembly Side Cables Removal - Options 508, 513, 526
