460 Keysight Technologies N9040B UXA Signal Analyzer Service Guide
Assembly Replacement Procedures
Motherboards

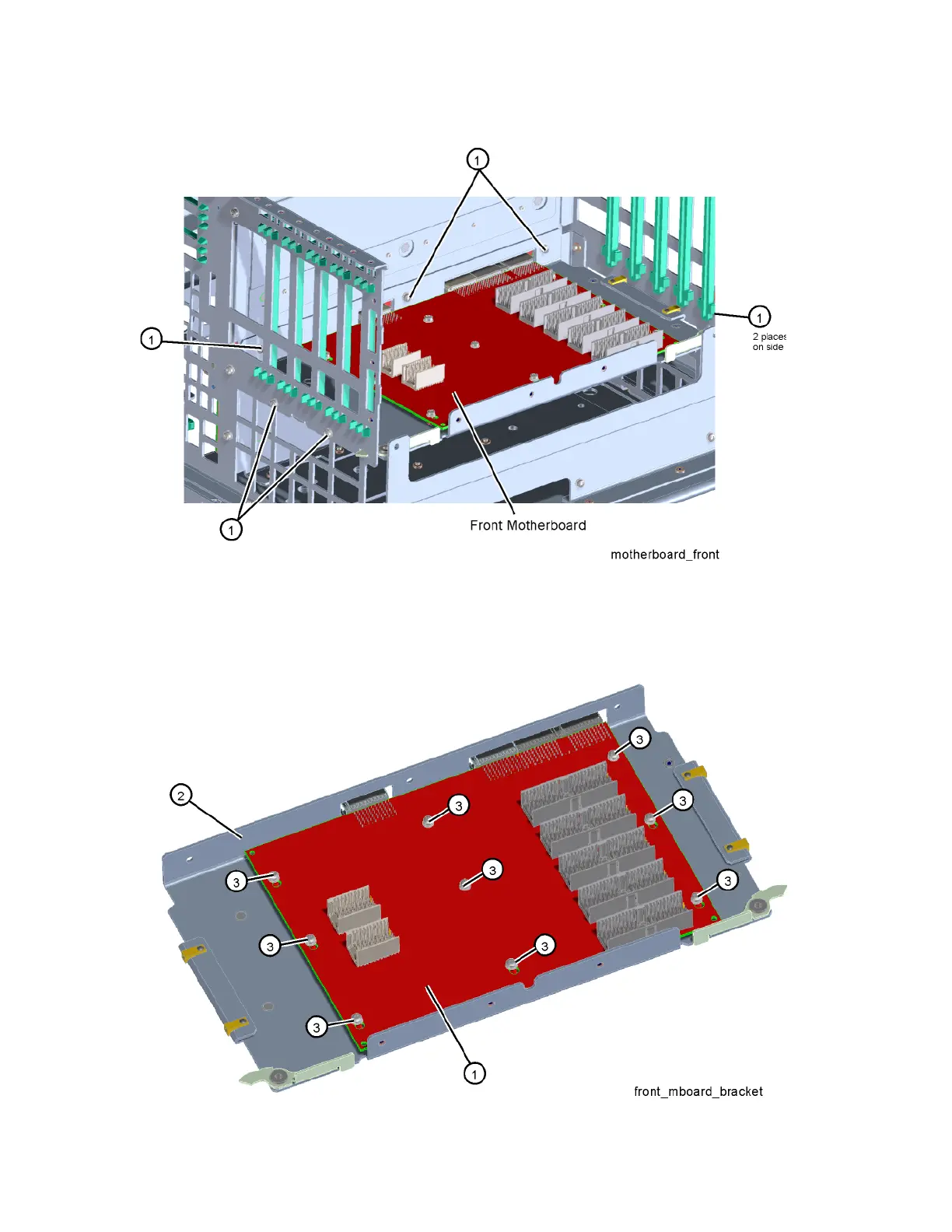

Figure 15-107 Front Motherboard Removal
14.Refer to Figure 15-108. To separate the front motherboard (1) from the
bracket (2), remove the nine screws (3) (0515-0372). When replacing the
screws, torque to 9 inch-pounds.
Figure 15-108 Front Motherboard and Bracket Separation
