470 Keysight Technologies N9040B UXA Signal Analyzer Service Guide
Assembly Replacement Procedures
Front Frame Assembly
3. Refer to Figure 15-115. Disconnect W1 ribbon cable from the rear
motherboard at the location indicated. The cable has locking tabs on each
side, pinch and pull to release.

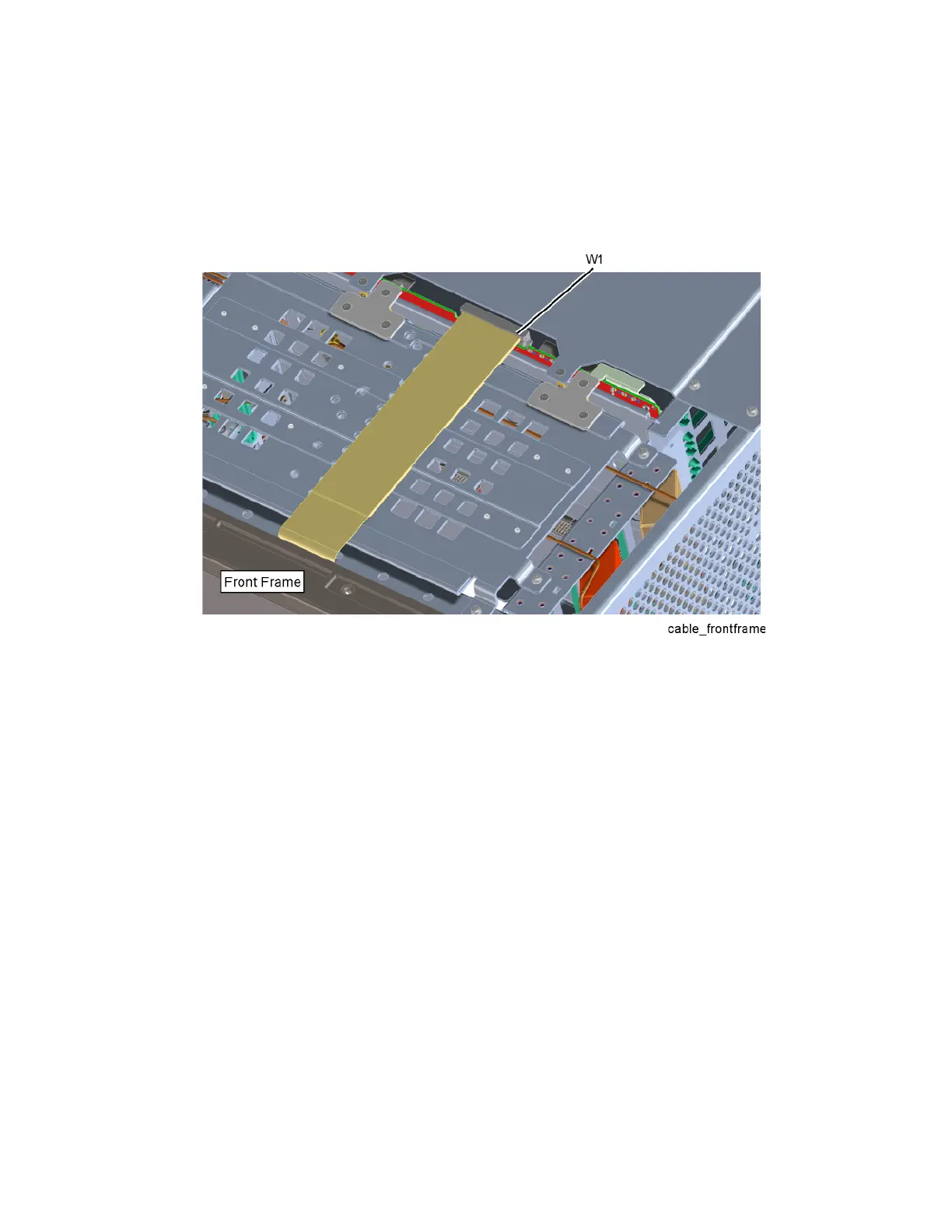

Figure 15-115 Front Panel Cable
