Keysight Technologies N9040B UXA Signal Analyzer Service Guide 471
Assembly Replacement Procedures
Front Frame Assembly
4. Refer to Figure 15-116. Using the T-20 driver, remove the fourteen screws
(1) (seven on each side) (0515-2044). Using the T-10 driver, remove the
one screw (2) (0515-0372). The front frame can now be detached from
the chassis.

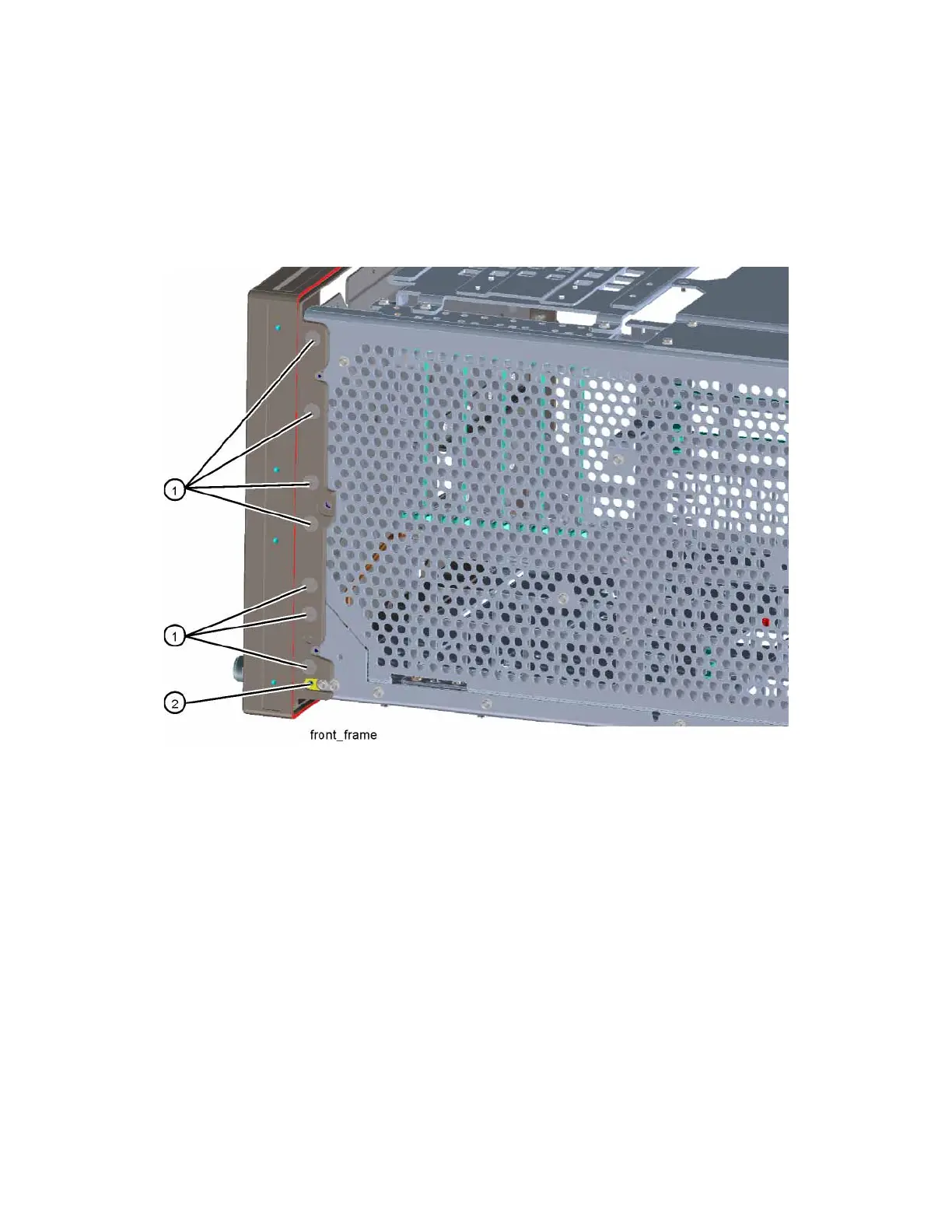

Figure 15-116 Front Frame Assembly Removal

Keysight N9040B Option 508 Specifications

General

Phase Noise	-136 dBc/Hz at 1 GHz and 10 kHz offset
Input Impedance	50 Ω
Input VSWR	< 1.5:1
Resolution Bandwidth (RBW)	1 Hz to 8 MHz
Input Power Range	+30 dBm
Analysis Bandwidth	40 MHz
Sweep Time	1 ms to 1000 s
