Keysight Technologies N9040B UXA Signal Analyzer Service Guide 481
Assembly Replacement Procedures
Front Frame Assembly
Display Assembly
Removal
1. Refer to Figure 15-124. Remove the six screws (2) (0515-1946). The
display assembly (1) can now be lifted out of the front frame.

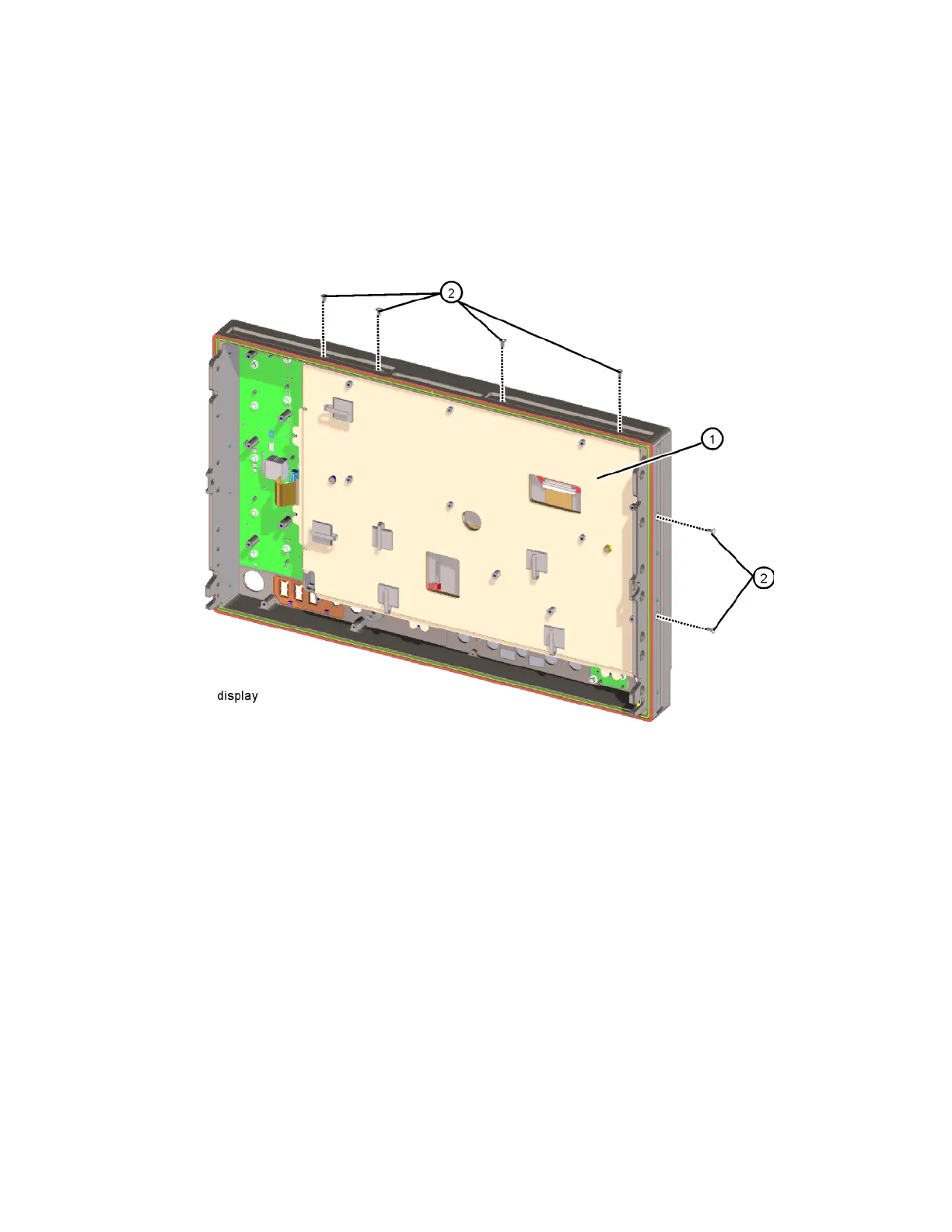

Figure 15-124 Display Removal

Keysight N9040B Option 508 Specifications

General

Phase Noise	-136 dBc/Hz at 1 GHz and 10 kHz offset
Input Impedance	50 Ω
Input VSWR	< 1.5:1
Resolution Bandwidth (RBW)	1 Hz to 8 MHz
Input Power Range	+30 dBm
Analysis Bandwidth	40 MHz
Sweep Time	1 ms to 1000 s
