Keysight Technologies N9040B UXA Signal Analyzer Service Guide 483
Assembly Replacement Procedures
Front Frame Assembly
Keyboard/Keypad
1. Refer to Figure 15-126. Remove the RPG knob by carefully pulling it off. To
remove the keyboard (1), remove the ten screws (2) (0515-0430).

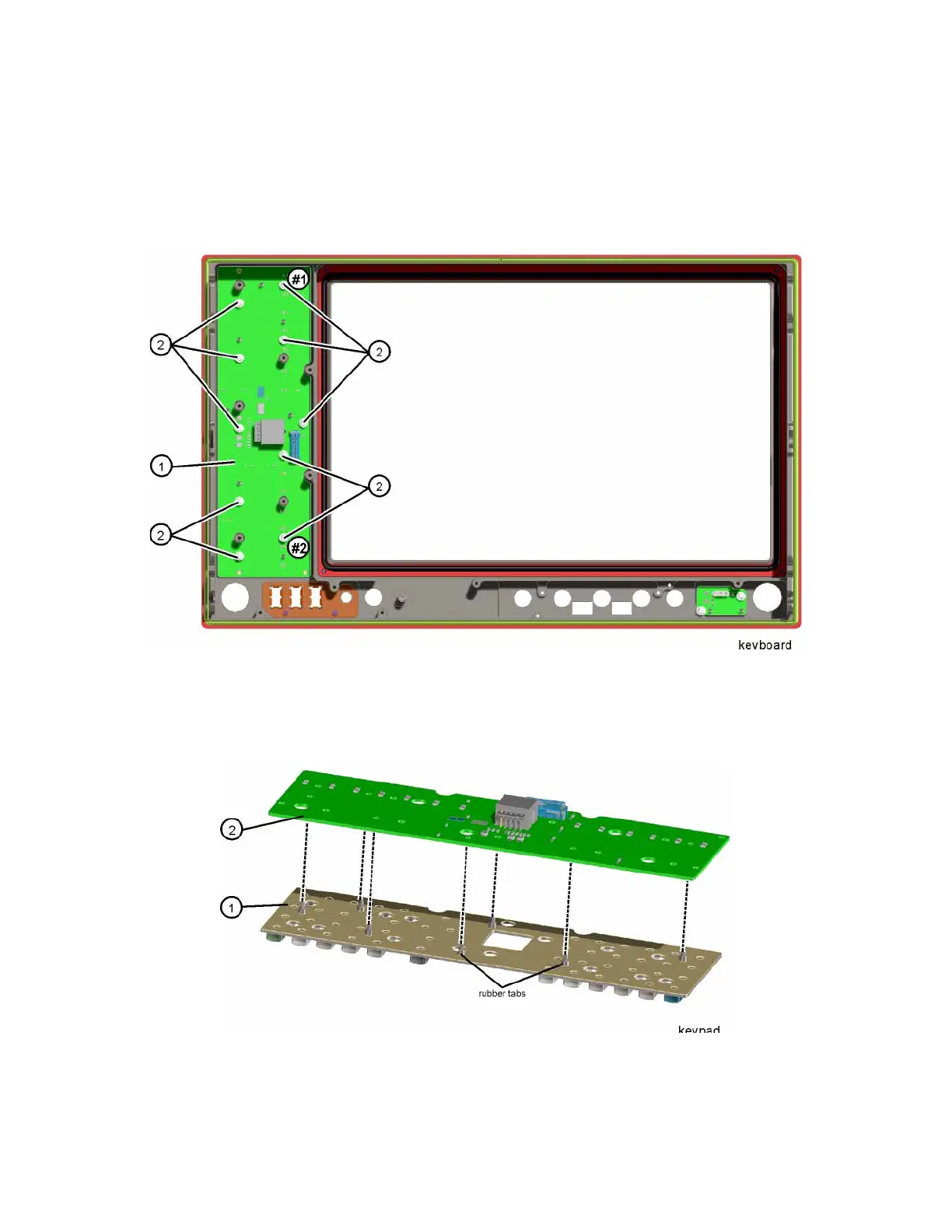

Figure 15-126 Keyboard
2. Refer to Figure 15-127. To separate the keypad (1) from the keyboard (2),
pull the keypad away from the keyboard to release the multiple rubber
tabs.
Figure 15-127 Keyboard Keypad Separation
