Adding a Label

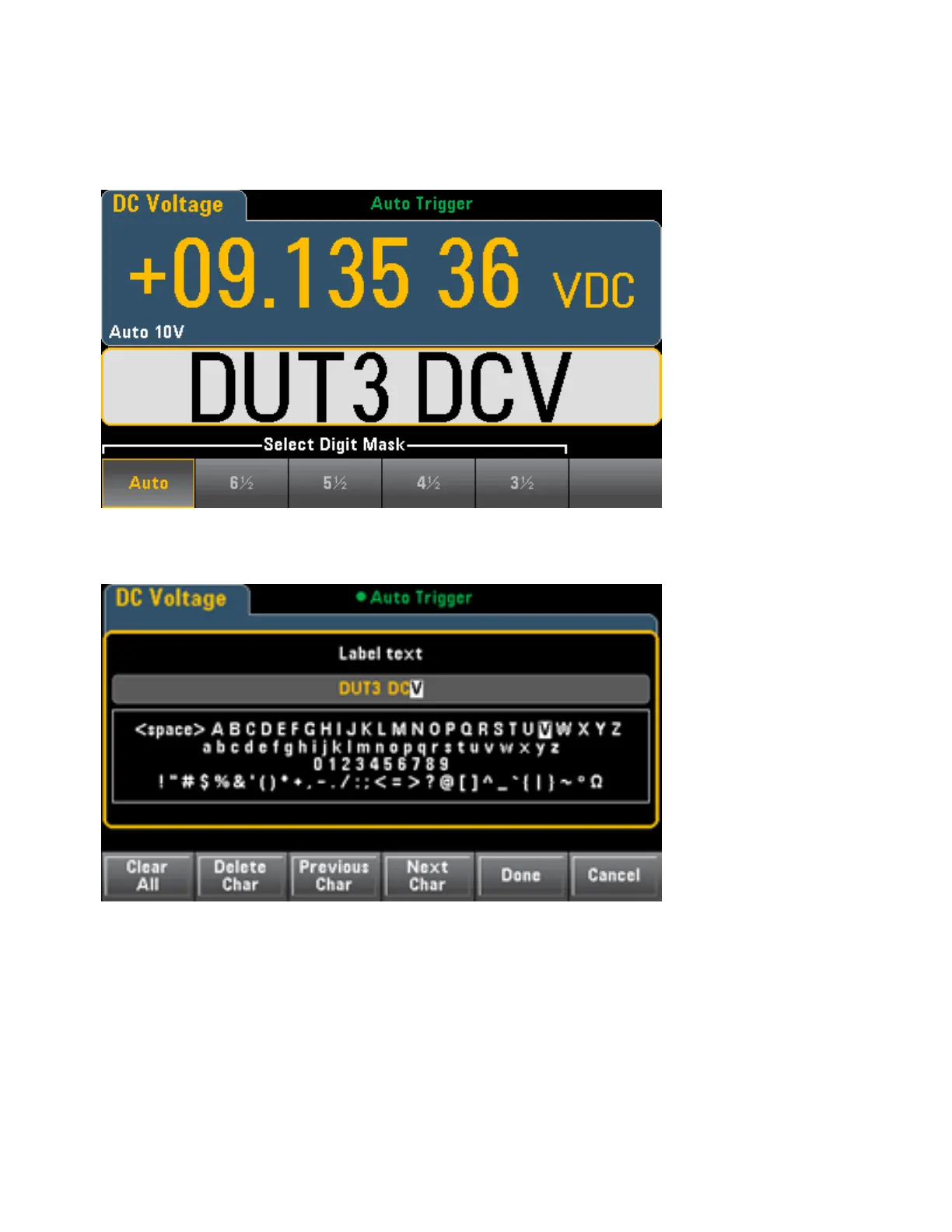

The Label softkey allows you to add a large text label on the screen. For example, you can use this to indic-
ate what measurement is being taken by the DMM.
To enter the text, press Label Text and use the softkeys and front panel arrow keys to modify the label
(below). Then press Done. The label's font automatically shrinks to accommodate longer labels.
Selecting a Secondary Measurement
Press 2nd Meas to select and display a secondary measurement. For example, for the DCV measurement
function, you can select ACV, Peak, or Pre-Math as the secondary measurement function. With ACV selec-
ted as secondary, the display shows the DCV measurement near to top of the display, and the ACV meas-
urement near the bottom of the display:
Keysight Truevolt Series Operating and Service Guide
117
Features and Functions
