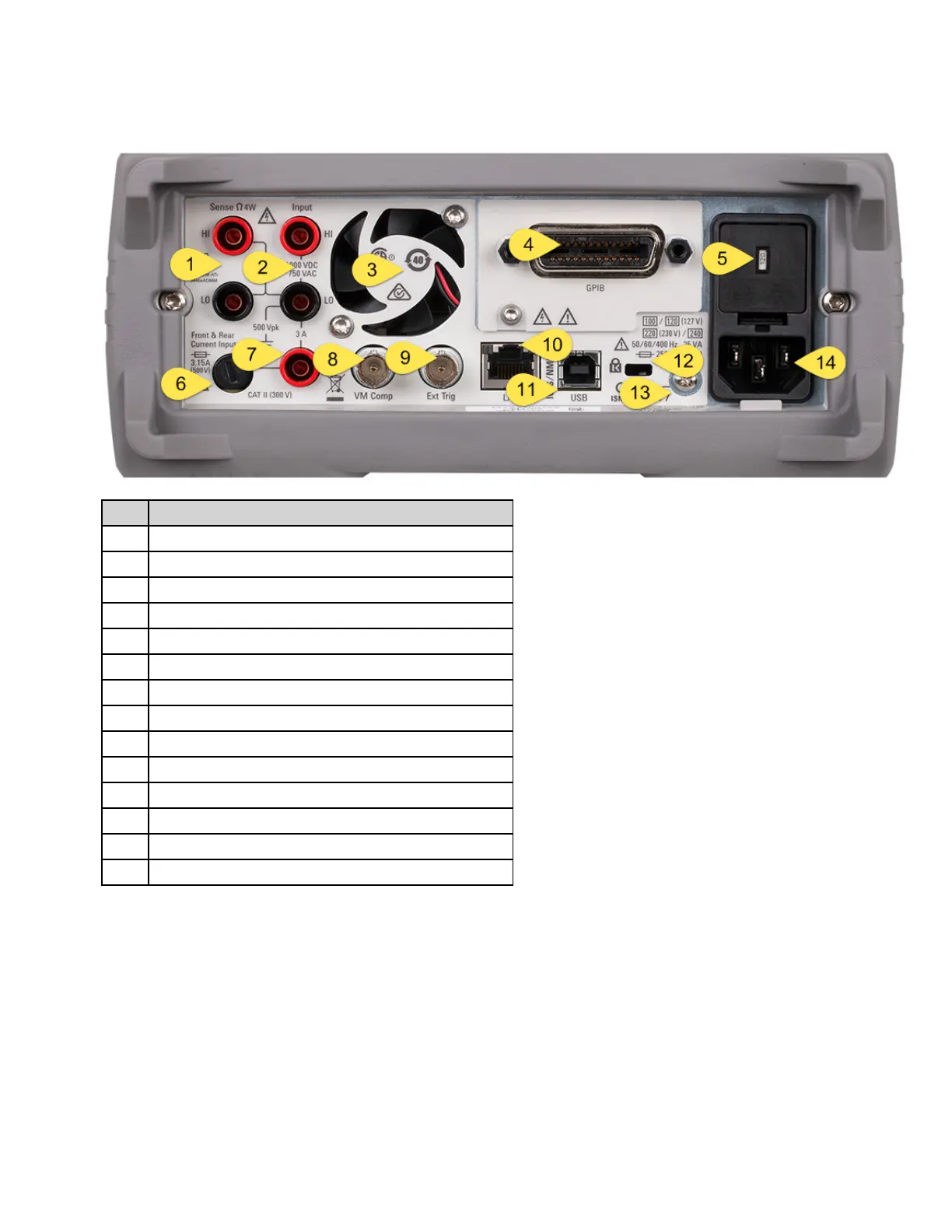

Rear Panel at a Glance
Item Description
1 HI and LO Sense Terminals (34461A/65A/70A only)
2 HI and LO Input Terminals (34461A/65A/70A only)
3 Fan Vents (34461A/65A/70A only)
4 GPIB Connector (optional)
5 AC Mains Line Voltage Selector and Fuse Access
6 3 A Current Terminal Fuse
7 3 A Current Terminal (34461A/65A/70A only)
8 Voltmeter Measurement Complete Output
9 External Trigger Input
10 Local Area Network (LAN) Connector
11 USB Interface Connector
12 Instrument Cable Lock
13 Chassis Ground Screw
14 AC Mains Input
