X1 - Use the arrow keys to control the X1 cursor.
l
X2 - Use the arrow keys to control the X2 cursor.
l
Y1 - Use the arrow keys to control the Y1 cursor.
l
Y2 - Use the arrow keys to control the Y2 cursor.
Track Rdng at X - Select two readings, by reading number, using X1 and X2 softkeys to display X (time)
and Y (magnitude) values for each reading, and the delta X and delta Y values.

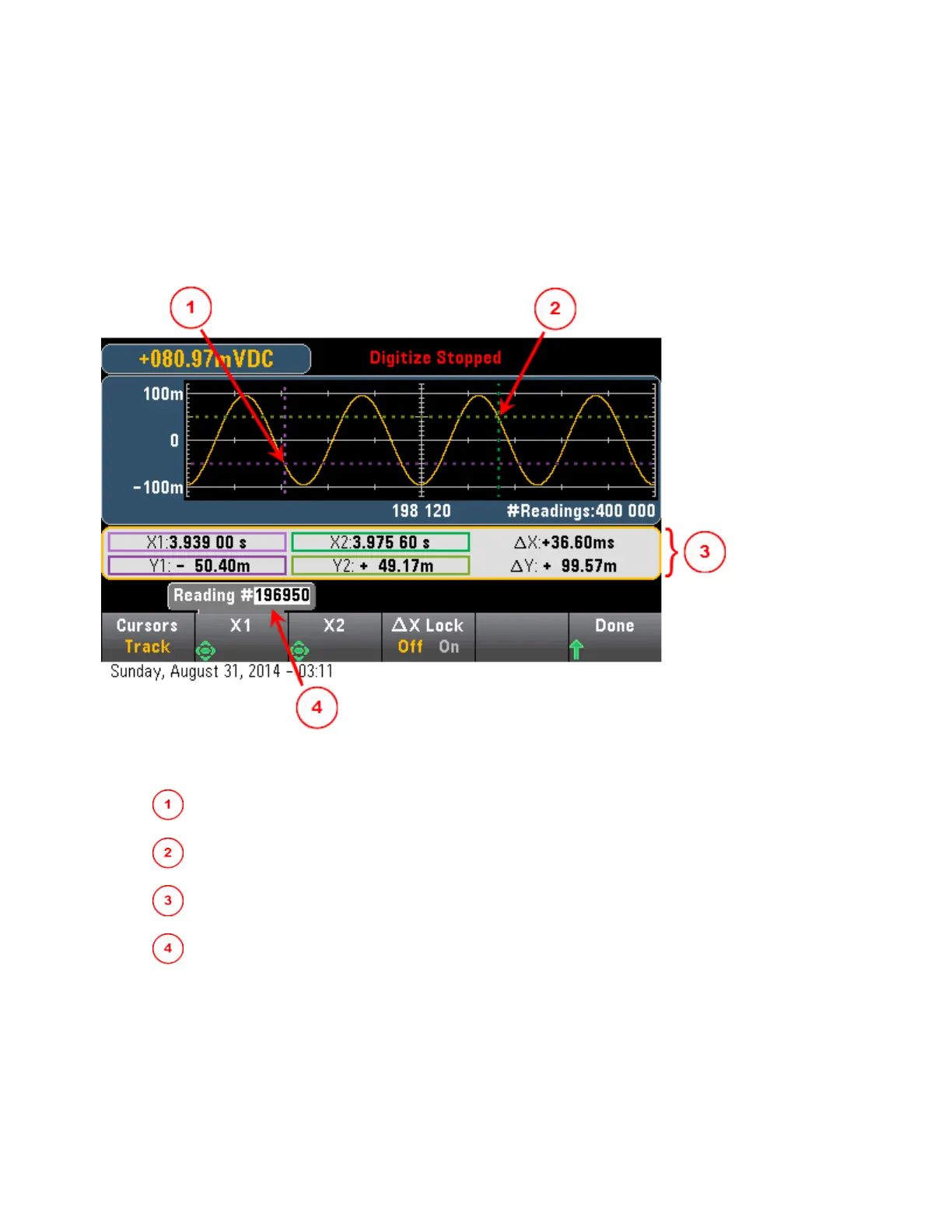

In the graphic above:
Y1 cursor tracks X1 cursor position.
Y2 cursor tracks X2 cursor position.
Cursor time and amplitude information, ∆X, ∆Y.
Press X1 or X2 to display reading number.
These softkeys are available for Track Rdng at X mode:
l
X1 - Use the arrow keys to control the X1 cursor.
l
X2 - Use the arrow keys to control the X2 cursor.
l
∆X Lock - When ON, keeps the X cursors a fixed distance apart as either cursor is moved.
