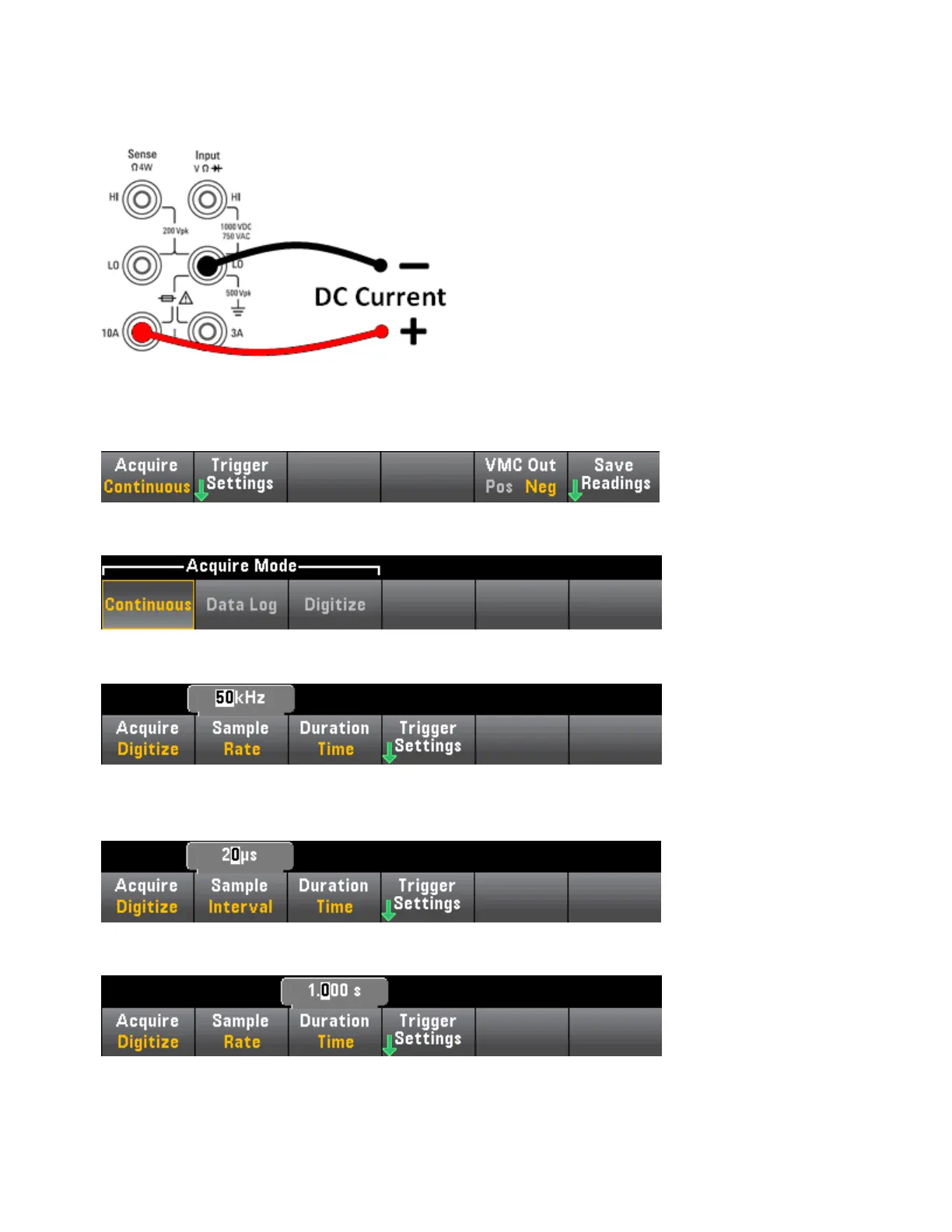

On the 34461A/65A/70A, you can also configure the measurement using the 10 A terminal, which is
recommended when measuring current above 1 A:
Step 2: Press [Acquire] on the front panel and then press the Acquire softkey:
Press the Digitize softkey:
Step 3: The Digitize menu opens:
With Sample Rate selected, use the up/down arrow keys to select a sample rate in samples per second
(Hz), or press the Sample Rate softkey to specify a sample interval (time between samples):
Step 4: Press the Duration softkey to specify the length of time to digitize:
or, press Duration again to specify the total number of samples to digitize:
Features and Functions
88
Keysight Truevolt Series Operating and Service Guide
