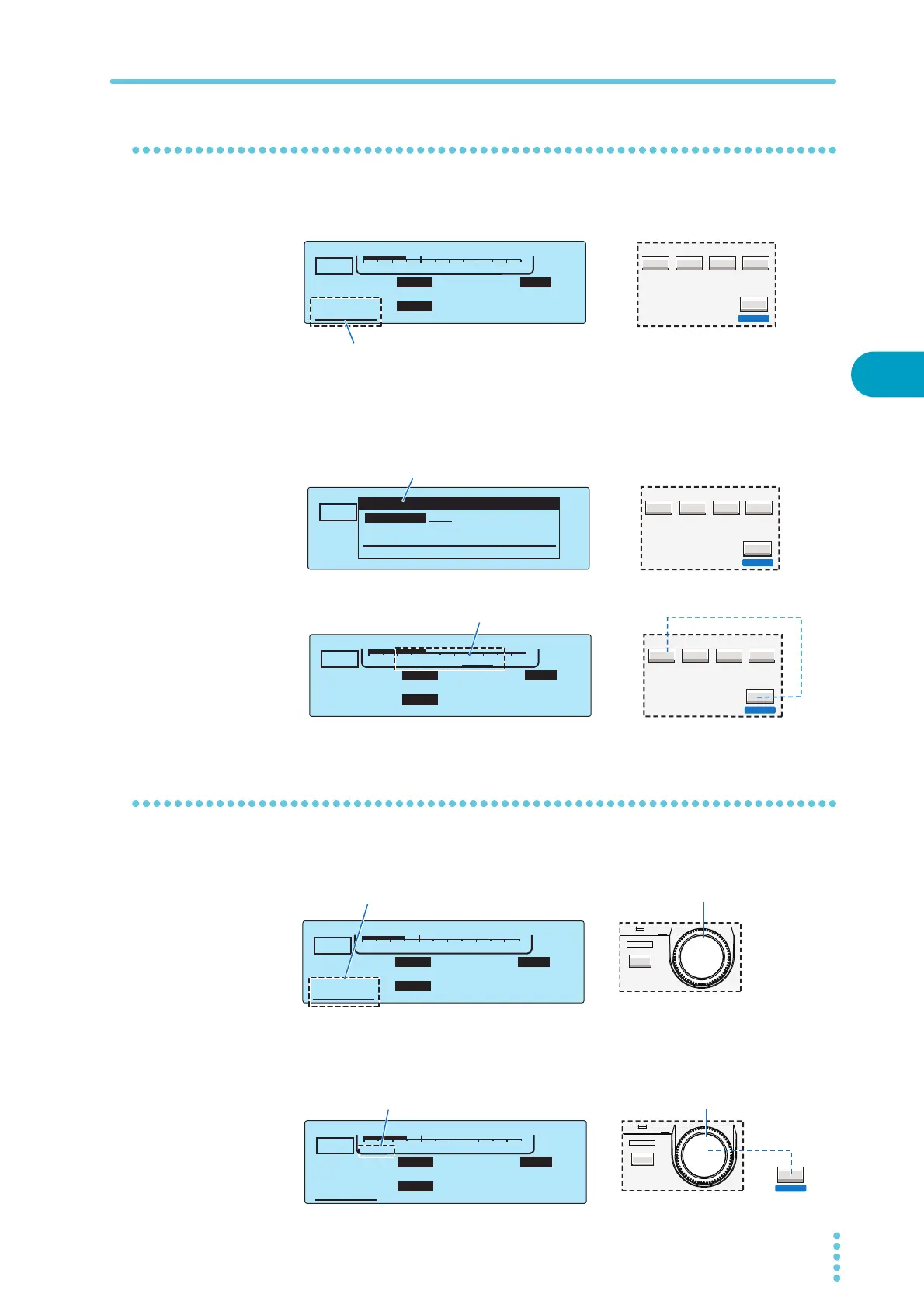

Selecting settings
To select a setting, use the SET, UPR/ LWR, or TEST key to move the underscore below the item that
you want to select.
If the setting that you want to select is not displayed, press MORE, or press SHIFT together with the
corresponding key.
Entering values
You can turn the rotary knob to set the value of the selected setting.
If you press SHIFT and turn the rotary knob, you can change the setting resolution. Depending on
how much you turn the rotary knob, you can set the value, 2, 4, or 8 times as fast as when you do
not press SHIFT.
TIMER UPPER
LOWER
10.0 mA
0.01 mA 1.50 kV 60 . 0 s
ACW
0
5.5kV
Voltage
If you press SET, UPR/ LWR, or TEST on the basic setup screen,
the corresponding setting is selected. (Example: Selecting the voltage)
SET UPR/LWR TEST MORE
LIMIT ON/OFF ON/OFF KEY LOCK
LOCAL
SHIFT
TIMER UPPER
LOWER
10.0 mA
0.01 mA 1.50 kV 60 . 0 s
ACW
0
5.5kV
Voltage
More Test Conditions
Start Voltage: OFF
Rise Time: 0.1s
Fall Time: OFF
Frequency: 50Hz
More Test Conditions
Start Voltage: OFF
Rise Time: 0.1s
Fall Time: OFF
Frequency: 50Hz
Press more key to select.
*
If you press MORE on the basic setup screen, you can displays
additional settings. (Example: Display a setting that is not displayed)
SET UPR/LWR TEST MORE
LIMIT ON/OFF ON/OFF KEY LOCK
LOCAL
SHIFT
TIMER UPPER
LOWER
10.0 mA
0.01 mA 1.50 kV 60 . 0 s
ACW
0
5.5kV
Limit Voltage 2.00kV
SET UPR/LWR TEST MORE
LIMIT ON/OFF ON/OFF KEY LOCK
Hold down SHIFT and press SET to select the Limit
Voltage setting.(Example: Selecting the limit voltage)
LOCAL
SHIFT
TIMER UPPER
LOWER
10.0 mA
0.01 mA 1.50 kV 60 . 0 s
ACW
0
5.5kV
Voltage
Turn the rotary knob to set the value.
ACW
FUNCTION
Rotary knob
TIMER UPPER
LOWER
10.0 mA
0.01 mA 1.50 kV 60 . 0 s
ACW
0
5.5kV
JOG:+8
Voltage
This is displayed when you are setting
values at eight times the normal speed.
