Kikusui TOS5301 - Saving Test Conditions

TOS5300 43
Panel Memory
Panel Operation Basics
4
Initial panel memory settings
Initially, memory numbers 1 to 3 contain AC withstanding voltage test conditions. Feel free to use
these test conditions if they match the tests that you want to perform.
p.87
For details on the test conditions that are initially contained in memory, see ”Default panel memory
values.”
Saving test conditions
1
Display the basic setup screen, and then set the test conditions.
2
Press MEMORY 1, MEMORY 2, or MEMORY 3.
The memory screen appears. The contents of the selected memory number are
displayed.
3
Press MEMORY 1, MEMORY 2, or MEMORY 3 to select the memory number (1
to 3) in which you want to save the current test conditions.
4
Press SHIFT+RECALL to display the current test conditions and store the
conditions in the selected memory number.
The displayed screen switches from the Recall screen to the Store screen, and the
test conditions are saved.
After the test conditions have been saved, the basic setup screen is displayed.

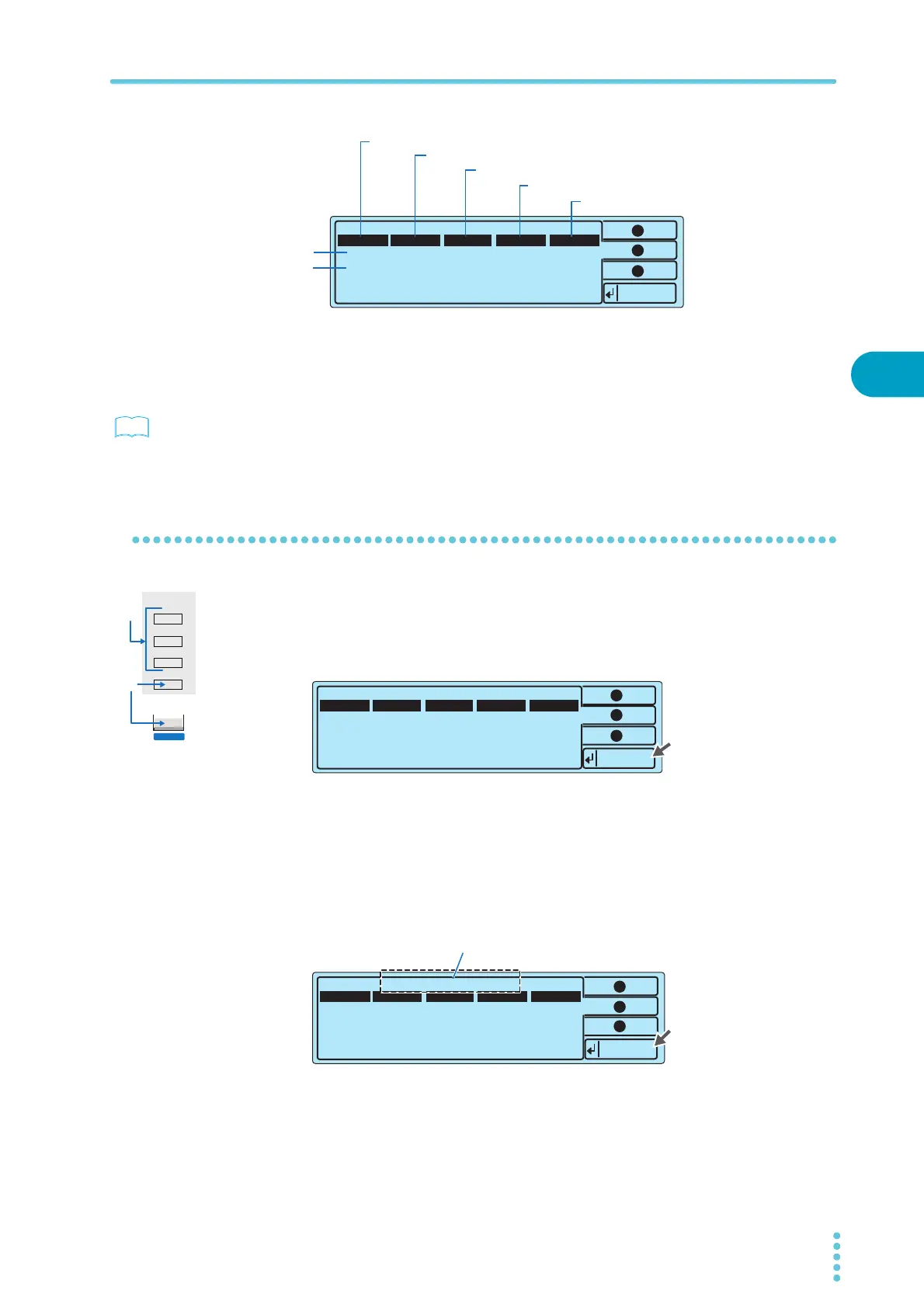

Recall
— Memory 2 —
1
2
3
ACW 0.00kV OFF 0.3s 0.02mA
IR 0.10kV OFFOFF 0.3s
Lower Upper Voltage Function Time
ACW test conditions
IR test conditions
Lower limit
Test time
Upper limit
Test voltage
Test mode (ACW / DCW / IR / ACW→IR / IR→ACW)
See
1
MEMORY
2
3
RECALL
LOCAL
SHIFT
4
2, 3
Recall
— Memory 2 —
1
2
3
ACW 0.00kV OFF 0.3s 0.02mA
Lower Upper Voltage Function Time
Displays the memory
recall screen
Store
1
2
3
— Test Conditions —
ACW
0.00kV OFF 0.3s 0.02mA
IR 0.10kV OFFOFF 0.3s
Lower Upper Voltage Function Time
Displays the memory
storage screen
Displays the test conditions that you set on the basic setup screen
