48 TOS5300
Setting Withstanding Voltage Test Conditions

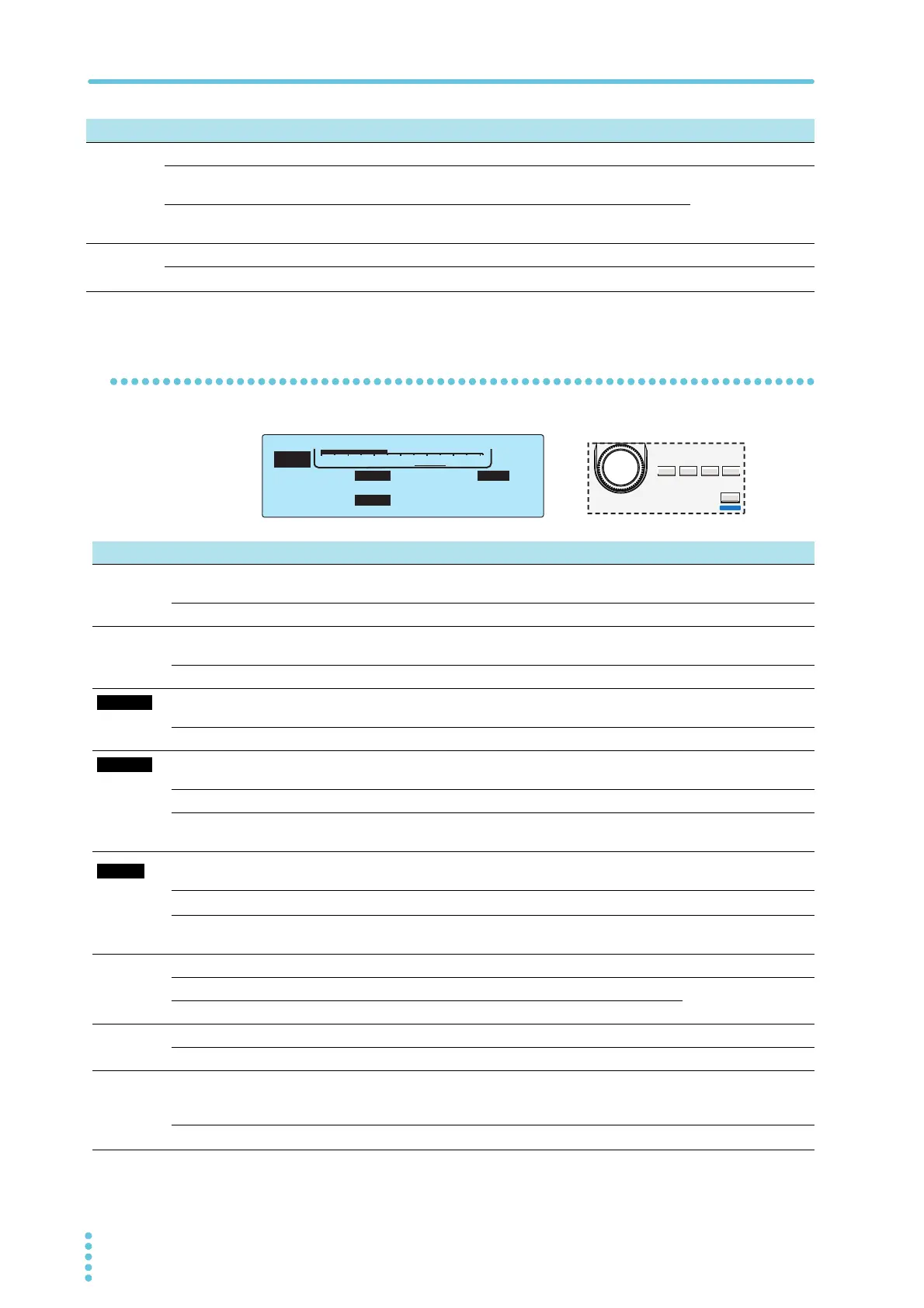

DC withstanding voltage test (DCW) settings
Item Description Panel operation
Fall Time
Sets the voltage fall time. This setting is only used when a PASS judgment occurs. MORE key
0.1 s
The output voltage falls approximately 0.1 seconds after a test ends with a
PASS judgme nt.
Rotary knob
OFF
The output voltage is shut off immediately after a test ends with a PASS
judgment.
Frequency Sets the test voltage frequency. MORE key
50 Hz, 60 Hz Setting Rotary knob
TIMER UPPER
LOWER
1.00 mA
0.01 mA 2.20 kV 60 . 0 s
DCW
0
6.2kV
Limit Voltage 2.50kV
SET UPR/LWR TEST MORE
LIMIT ON/OFF ON/OFF KEY LOCK
LOCAL
SHIFT
Item Description Panel operation
Voltage
Sets the test voltage. You cannot specify a voltage that is greater than or equal to the limit
voltage.
SET key
0.00 kV to 6.20 kV Setting Rotary knob
Limit Voltage Sets the limit voltage. This prevents an unnecessarily high voltage from being applied to the
DUT because of incorrect operations of the TOS5300 Series.
LIMIT (SHIFT+SET) key
0.00 kV to 6.20 kV Setting Rotary knob
Sets the upper limit that is used in judgments. If a current that is greater than or equal to the
upper limit is measured, a U-FAIL judgment occurs.
UPR/ LWR key
0.01 mA to 11 mA Setting Rotary knob
Sets the lower limit that is used in judgments. While LOWER is on, if a current that is less than or
equal to the lower limit is measured, an L-FAIL judgment occurs.
UPR/ LWR key
0.01 mA to 11 mA Setting Rotary knob
OFF The lower limit is not used in judgments.
ON/ OFF (SHIFT+UPR/
LWR) key
Sets the test time. The test time begins when the voltage rise time elapses. The test time begins
when the voltage rise time elapses.
TEST key
0.1 s to 999 s When the specified time elapses, the test ends. Rotary knob
OFF
The set test time is ignored. A PASS judgment is not performed.
Press STOP to stop testing.
ON/ OFF
(SHIFT+TEST) key
Start Voltage Sets the start voltage to 50 % of the test voltage. MORE key
50 % The start voltage is set to 50 % of the test voltage.
Rotary knob
OFF The start voltage is not set.
Rise Time Sets the voltage rise time. MORE key
0.1 s to 10.0 s Setting Rotary knob
Wait Time Sets the judgment wait time, which is the time that the TOS5300 Series waits before actually
starting judgment after START is pressed. This prevents mistaken judgments during the voltage
rise time.
MORE key
0.1 s to 10.0 s Setting
Rotary knob
UPPER
LOWER
TIMER
