Auto Test (AUTO TEST)
An auto test (AUTO) is a series of tests that contains an AC withstanding voltage test and an
insulation resistance test (IR) that are performed automatically.
There are the following two types of auto tests.
■ Insulation resistance test (IR) → AC withstanding voltage test (ACW)
■ AC withstanding voltage test (ACW) → insulation resistance test (IR)

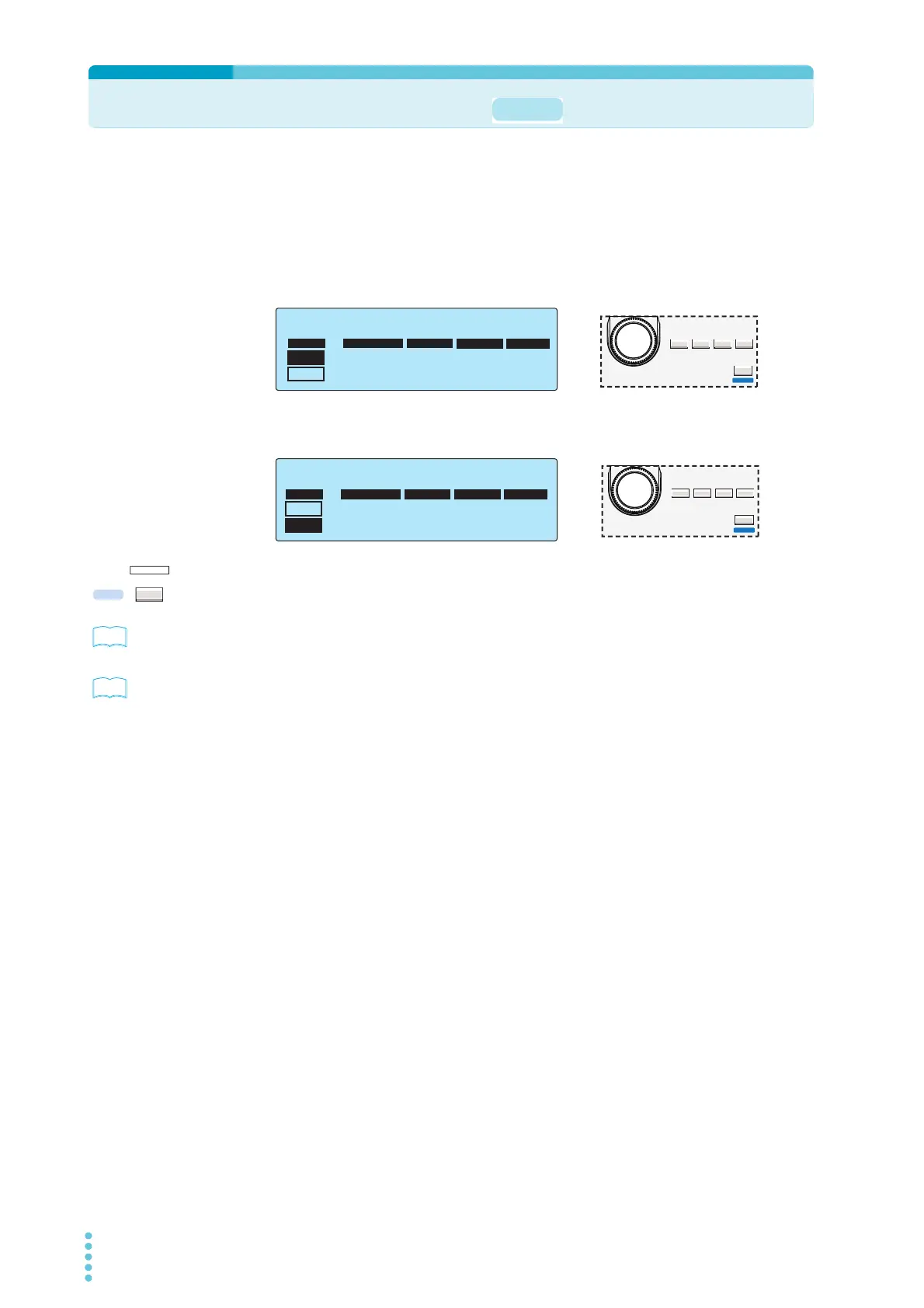

Press FUNCTION to display the auto test (IR→ACW or ACW→IR) setup screen.
p.35 , p.51
For details on how to select settings and enter values, see ”Panel Operation Basics.” For details on
other test conditions, see ” Setting Other Test Conditions.”
p.47 , p.49
You cannot set test conditions on the auto test screen. Set AC withstanding voltage test conditions
on the ACW setup screen and insulation resistance test conditions on the IR setup screen.
5302
UPPER LOWER TIMER VOLTAGE FUNC
OFF OFF 0.3s
OFF 60.0s10.0mA
1.50kV
25V
AUTO
IR
ACW
SET UPR/LWR TEST MORE
LIMIT ON/OFF ON/OFF KEY LOCK
LOCAL
SHIFT
SET UPR/LWR TEST MORE
LIMIT ON/OFF ON/OFF KEY LOCK
LOCAL
SHIFT
UPPER LOWER TIMER VOLTAGE FUNC
OFF OFF 0.3s
OFF 60.0s0.02mA
1.50kV
25V
AUTO
IR
ACW
FUNCTION
ACW / IR / AUTO
5302
See
See
