Stopping Testing
5
Withstanding Voltage and Insulation Resistance Tests
When testing finishes
A test will stop under one of the following conditions.
a. If the test time elapses (when TIMER is set to ON).
b. If a current greater than or equal to the upper limit (U-FAIL) or less than or equal to the lower
limit (L-FAIL) is measured.
c. If you press STOP.
After a test finishes, the DANGER LED turns off, and the high voltage output is turned off.
If the test finished under condition a or b given above, the judgment result will be displayed on the
screen.
If the test time has been set
p.47 , p.48
After the test time elapses, the PASS LED lights in green, and the test finishes. The PASS LED remains
lit in green for the length of time specified by Pass Hold. The READY LED then lights in light blue,
and the TOS5300 Series switches to the READY state.
p.46
For details on how measured values are judged, see ”About Judgment.”
The operations that the TOS5300 Series performs after testing finishes for each judgment condition
are shown below.
To clear judgment results
Press STOP to switch the TOS5300 Series to the READY state (the READY LED lights).
PASS
TIMER UPPER
LOWER
10.0
mA
0.01
mA
1.50
kV
60
.
0
s
ACW

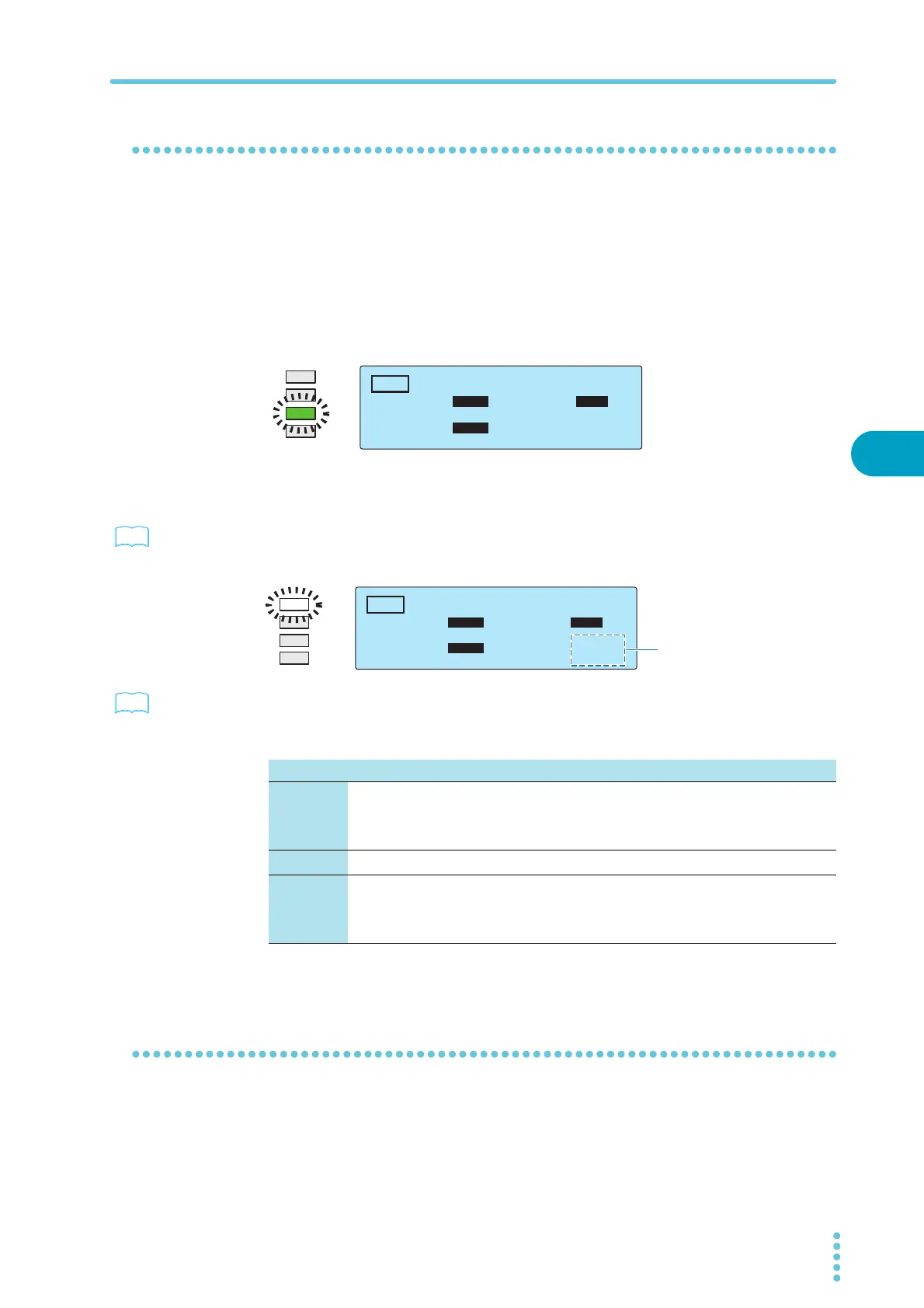

Example: Display of a PASS
See
TIMER
READY
Counts down the
test time
UPPER
LOWER
10.0
mA
0.01
mA
1.50
kV
60
.
0
s
ACW
See
Operation PASS U-FAIL L-FAIL
Display PASS LED lights in green.
Measured value remains
displayed for the length of
time specified by Pass Hold.
The FAIL LED lights in yellow.
“OVER” and the UPPER
setting are displayed on the
screen.
The FAIL LED lights in yellow.
“UNDER” and the LOWER
setting are displayed on the
screen.
Buzzer
Sounds for 50 ms.
1
1 The length of time that the buzzer sounds when a PASS judgment occurs is fixed to 50 ms. The specified
Pass Hold time has no effect.
Sounds until STOP is pressed.
SIGNAL I/O
connector
The PASS signal is generated
for the length of time
specified by the Pass Hold
setting.
The U-FAIL signal is
generated until the FAIL
judgment is cleared.
The L-FAIL signal is generated
until the FAIL judgment is
cleared.
