44 TOS5300
Panel Memory

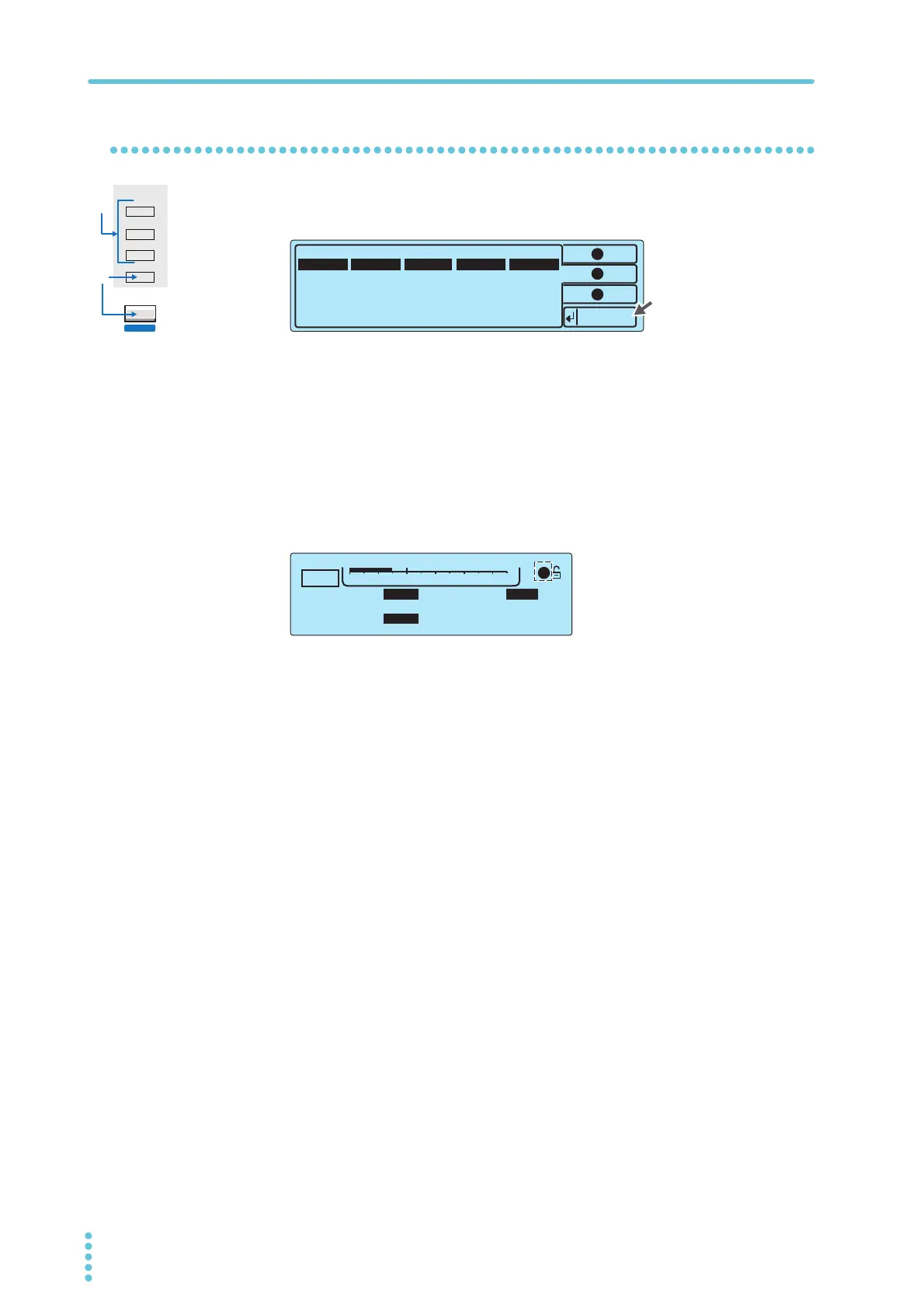

Recalling test conditions
1
Press MEMORY 1, MEMORY 2, or MEMORY 3.
The memory screen appears. The contents of the selected memory number are
displayed.
2
Press MEMORY 1, MEMORY 2, or MEMORY 3 to specify the memory number (1
to 3) from which you want to recall test conditions.
The test conditions that are saved in the memory number (1 to 3) that you specified
are displayed.
3
Press RECALL to recall the test conditions that are saved in the specified
memory number.
The basic setup screen is displayed, and the icon corresponding to the memory
number is displayed in the icon area. The TOS5300 Series is now set to the recalled
test conditions.
If you change the recalled test conditions, the memory number disappears. Even if you set the test
conditions back to the values that are stored in memory, the memory number will not reappear.
1
MEMORY
2
3
RECALL
LOCAL
SHIFT
3
1, 2
Recall
ā Memory 2 ā
1
2
3
ACW
0.00kV
OFF 0.3s
0.02mA
Lower Upper Voltage
Function
Time
Displays the memory
recall screen
2
TIMER UPPER
LOWER
10.0
mA
0.01
mA
1.50
kV
60
.
0
s
ACW
0
5.5kV
Voltage
Example: The test conditions that were
saved in MEMORY 2 have been recalled.
