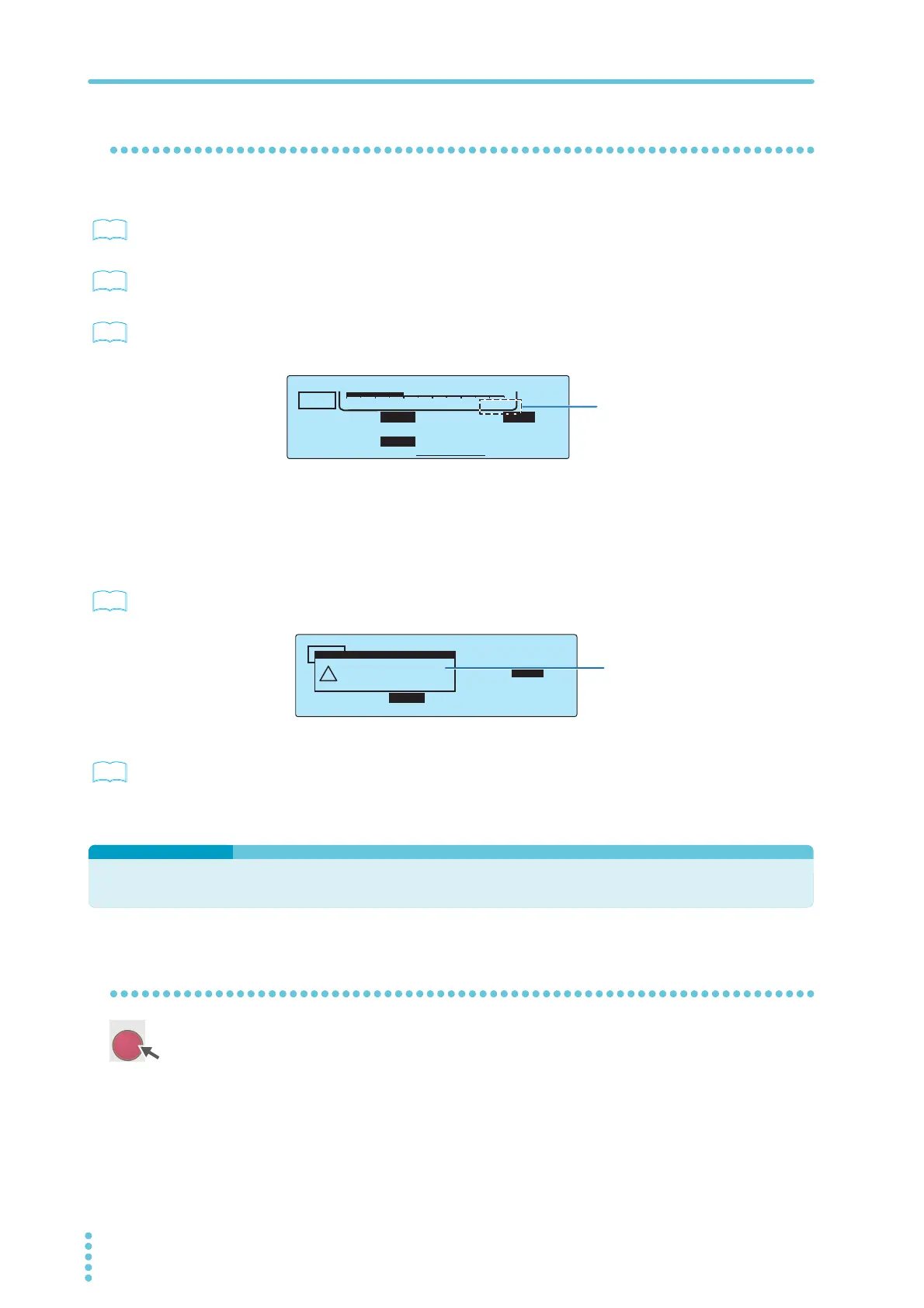

60 TOS5300
Stopping Testing
If you cannot start testing
In the following situations, you will not be able to start testing, and the READY LED will not light.
p.42
● If the memory number is not fixed while panel settings are being recalled from or saved
to memory.
p.64
● If STOP is being pressed (including when a STOP signal is being applied to the SIGNAL I/O
connector).
p.46
● If a message is displayed in the level bar area.
A message blinks in the level bar area when an invalid setting has been made. In this situation,
you cannot start testing. Specify a valid value.
● If PASS or FAIL is displayed.
You cannot start testing while a judgment result is displayed. Press STOP to switch the TOS5300
Series to the READY state.
● If a PROTECTION message is displayed.
p.93
If a PROTECTION message is displayed, the TOS5300 Series has switched to protection mode
and will not allow you to start testing. Remove the cause of the problem.
● If the double action feature has been turned on.
p.56
When the double action feature is turned on, you cannot start tests just by pressing START.
Press STOP, and then press START within 0.5 seconds.
Stopping Testing
To stop testing
Press STOP.
TIMER UPPER
LOWER
10.0
mA
20.0
mA
2.50
kV
60
.
0
s
ACW
UP<LOW
0
110mA
Lower Current
A message that indicates the
invalid setting blinks here.
TIMER UPPER
LOWER
10.0
mA
0.01
mA
1.50
kV
60
.
0
s
ACW
Power Supply Protection
(Code:0x0010)
!
PROTECTION
The cause that activated the
protection feature and the
code number are displayed.
