Stratos Multi E401N
14

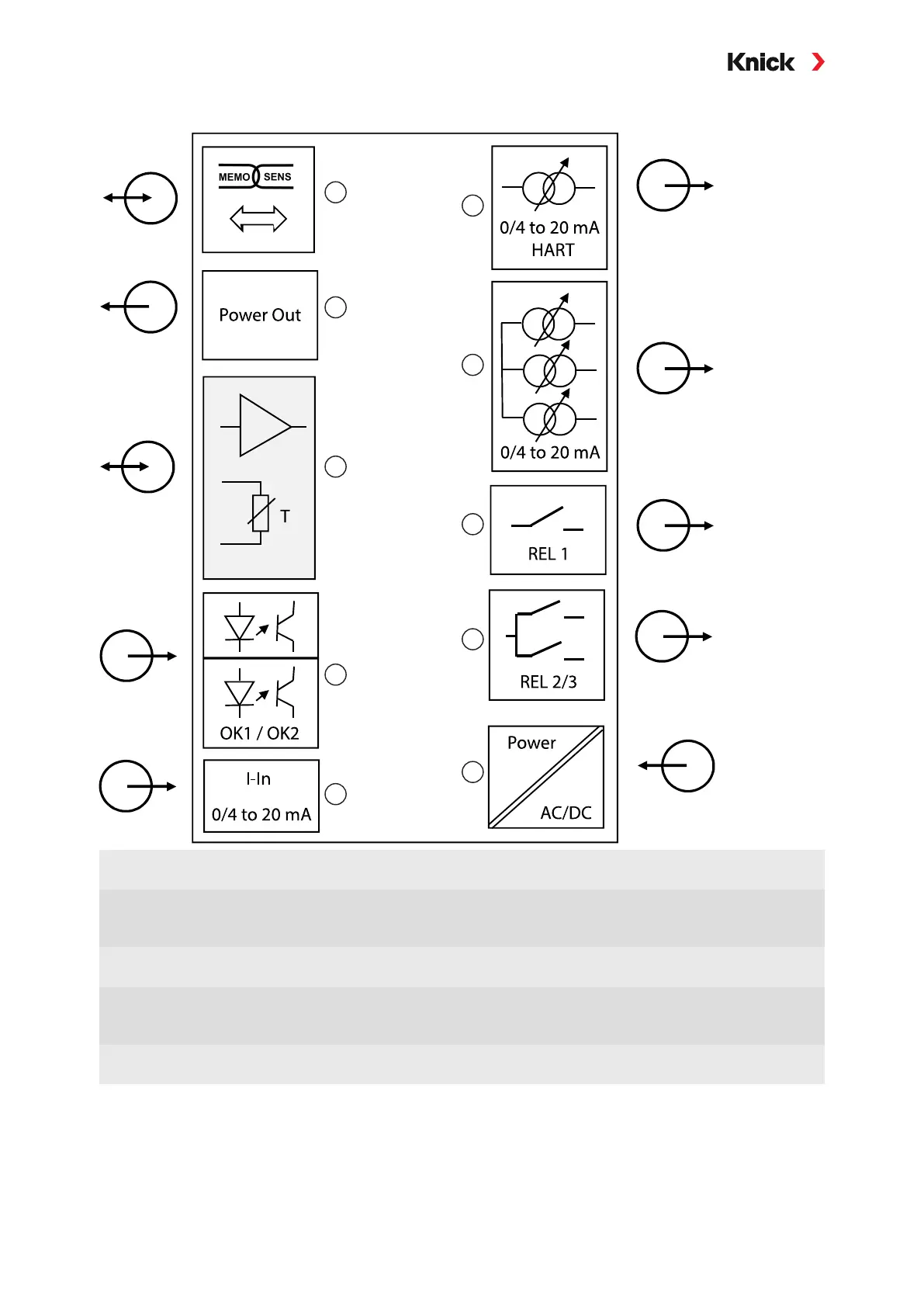

2.3 System Overview
1
2
3
4
5
6
7
8
9
10
Stratos Multi E401N
1
Input for Memosens sensors or SE740 optical oxygen
sensor
6
Current output 1: 0/4 … 20mA/HART active or
passive (TAN option FW-E050 HART: 4… 20mA)
2
Power output 3/15/24V for SE740 optical oxygen
sensor or external transmitter
7
Current outputs 2/3/4:
Active or passive (current outputs 3 and 4:
TAN option FW-E052)
3
Port for an analog MK module or Memosens
via MK-MS module
8
Relay contact K1: Messages, limits, rinse contact, ...
4
Optocoupler inputs OK1/OK2
OK1: Parameter set selection A/B, flow, …
OK2: Function check (HOLD)
9
Relay contacts 2/3: Controller or messages, limits,
rinse contacts, ...
5
Current input 0/4 … 20mA for external pressure
transmitter (TAN option FW-E051)
10
Power input:
80 … 230VAC/24 … 60VDC <15VA/10W
