Stratos Multi E401N
29
3.2.2 Installing Active and Passive Current Outputs
The current outputs directly supply current (0/4 ... 20 mA) to a load according to the selected process
variable.
Passive current outputs require an external supply voltage.
Note: Observe the specifications and connected loads.

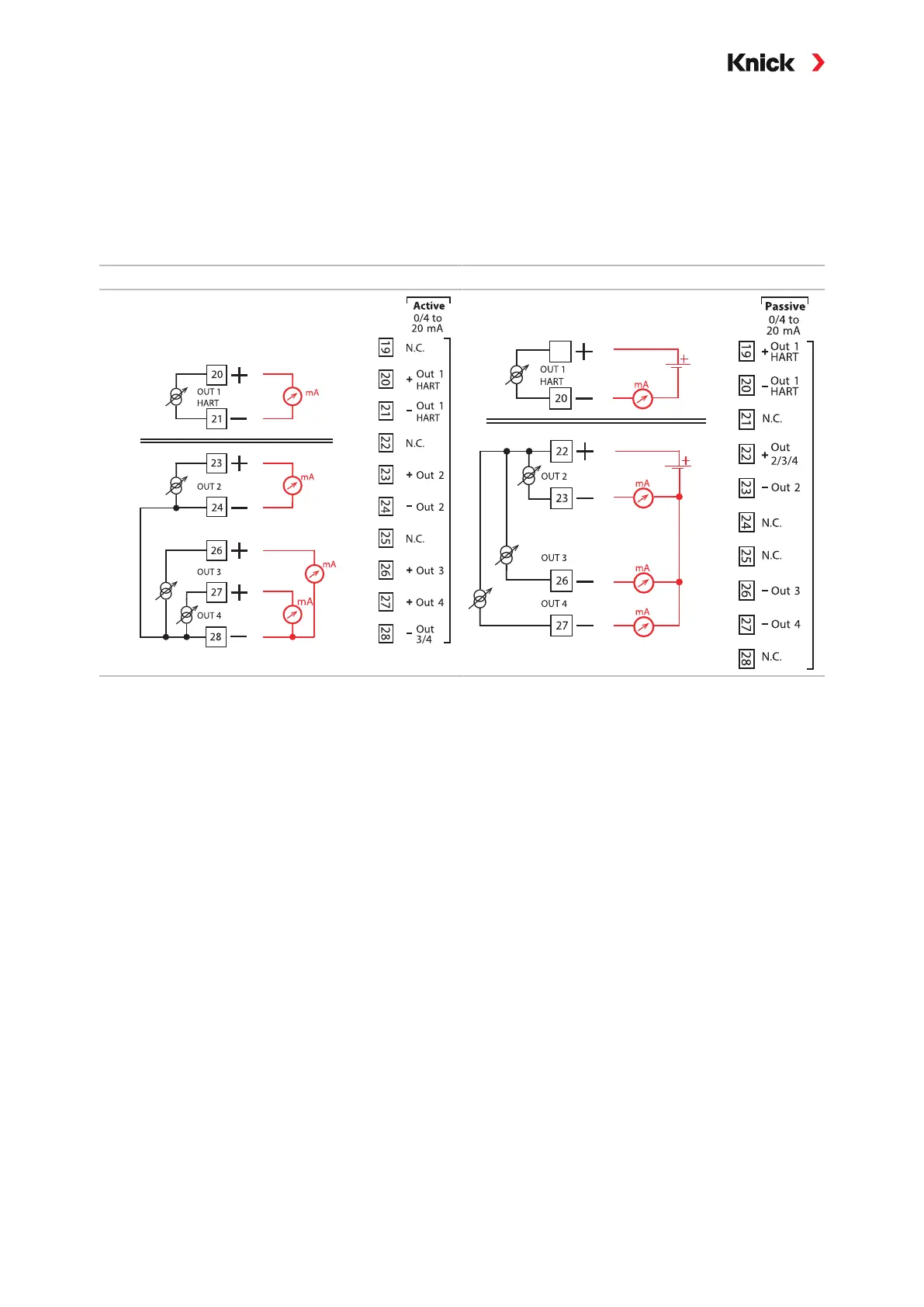

Terminal Assignment Diagram
Active current outputs Passive current outputs
