Stratos Multi E401N
28

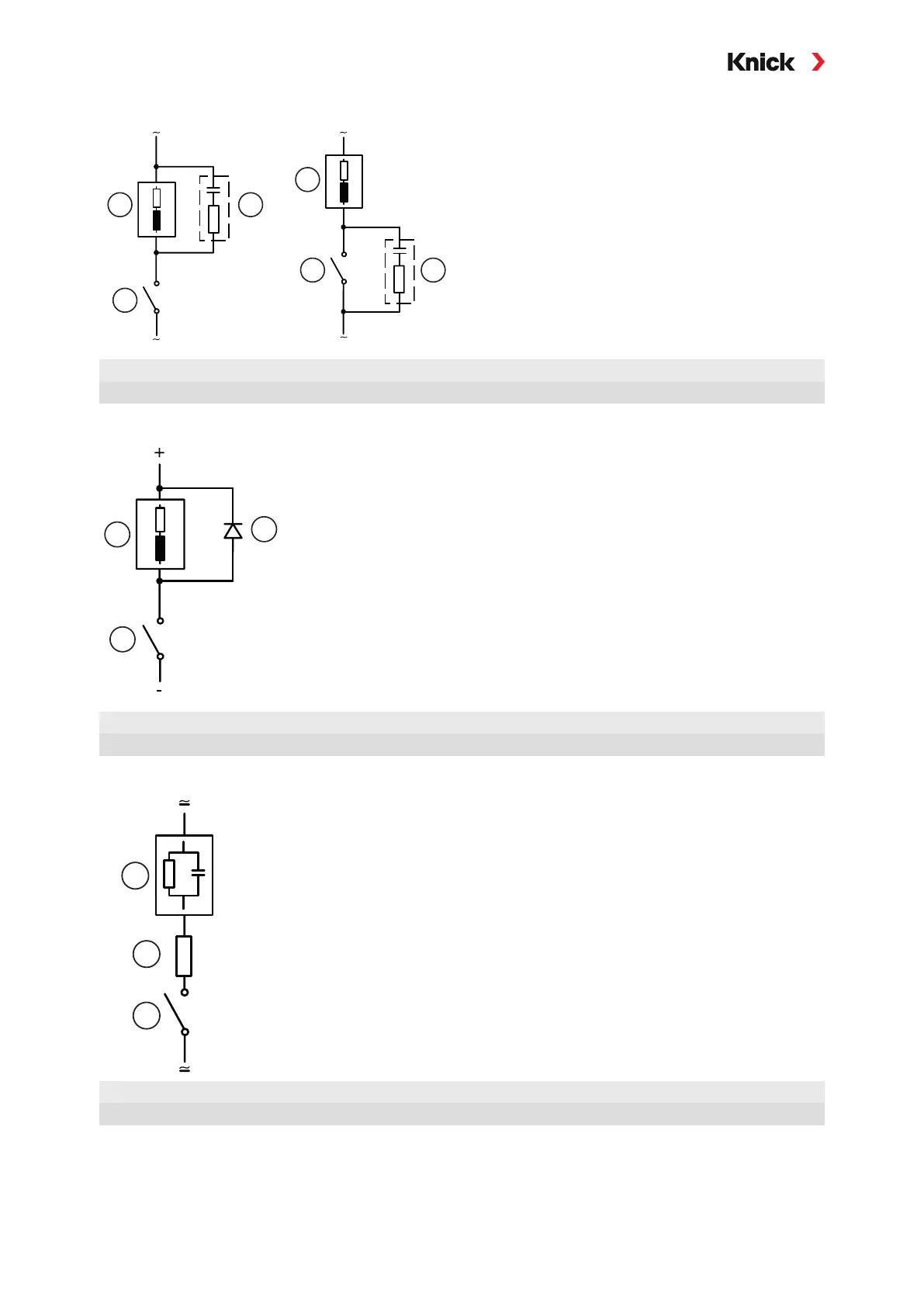

Typical AC Application with Inductive Load
1 2
3
1
23
1 Load 3 Contact
2 Typical RC combination, e.g., capacitor 0.1μF, resistor 100Ω/1W
Typical DC Application with Inductive Load
1
2
3
1 Inductive load 3 Contact
2 Free-wheeling diode, e.g.,1N4007 (observe polarity)
Typical AC/DC Application with Capacitive Load
1
2
3
1 Capacitive load 3 Contact
2 Resistor e.g., 8 Ω/1W at 24V/0.3A
