Knick Stratos Multi E401N - ORP Analog Wiring Example

Stratos Multi E401N
174

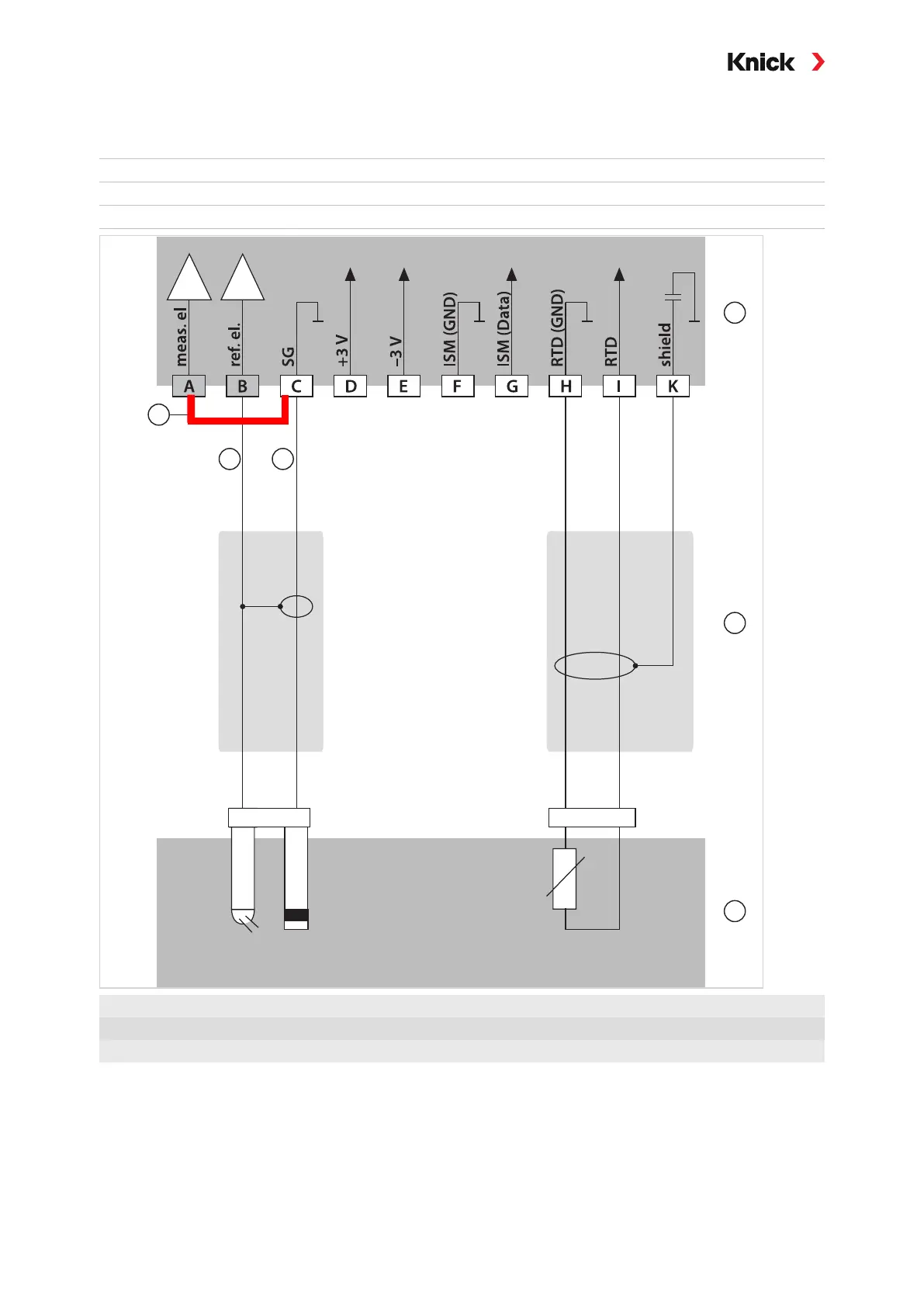

13.1.2 ORP Analog Wiring Example
Note: Disable Sensocheck.
Measuring task: ORP, temp., glass impedance, reference impedance
Sensors (example): ORP: SE 564X/1-NS8N
Cable (example): ZU0318
2 3
4
5
6
1
1
Jumper!
4
pH Module
2
Shield
5
Cables
3
Core
6
Sensors
