2.4 Package Contents and Product Identification
• Basic device Stratos Multi
• Bag containing small accessory parts (2xplastic closure, 1xhinge pin, 1xwasher, 2xinsertable
jumper, 1xreduction sealing insert, 1xmultiple sealing insert, 2xblanking plug, 5xcable gland and
hex nut M20x1.5)
• Test Report acc. to EN 10204
• Installation Guide
• Safety Guide
Note: Check all components for damage upon receipt. Do not use damaged parts.
Measuring modules are not included in the basic unit’s package contents.
4
5
6
7
8
9
10
2
3
1
11
12
13
1

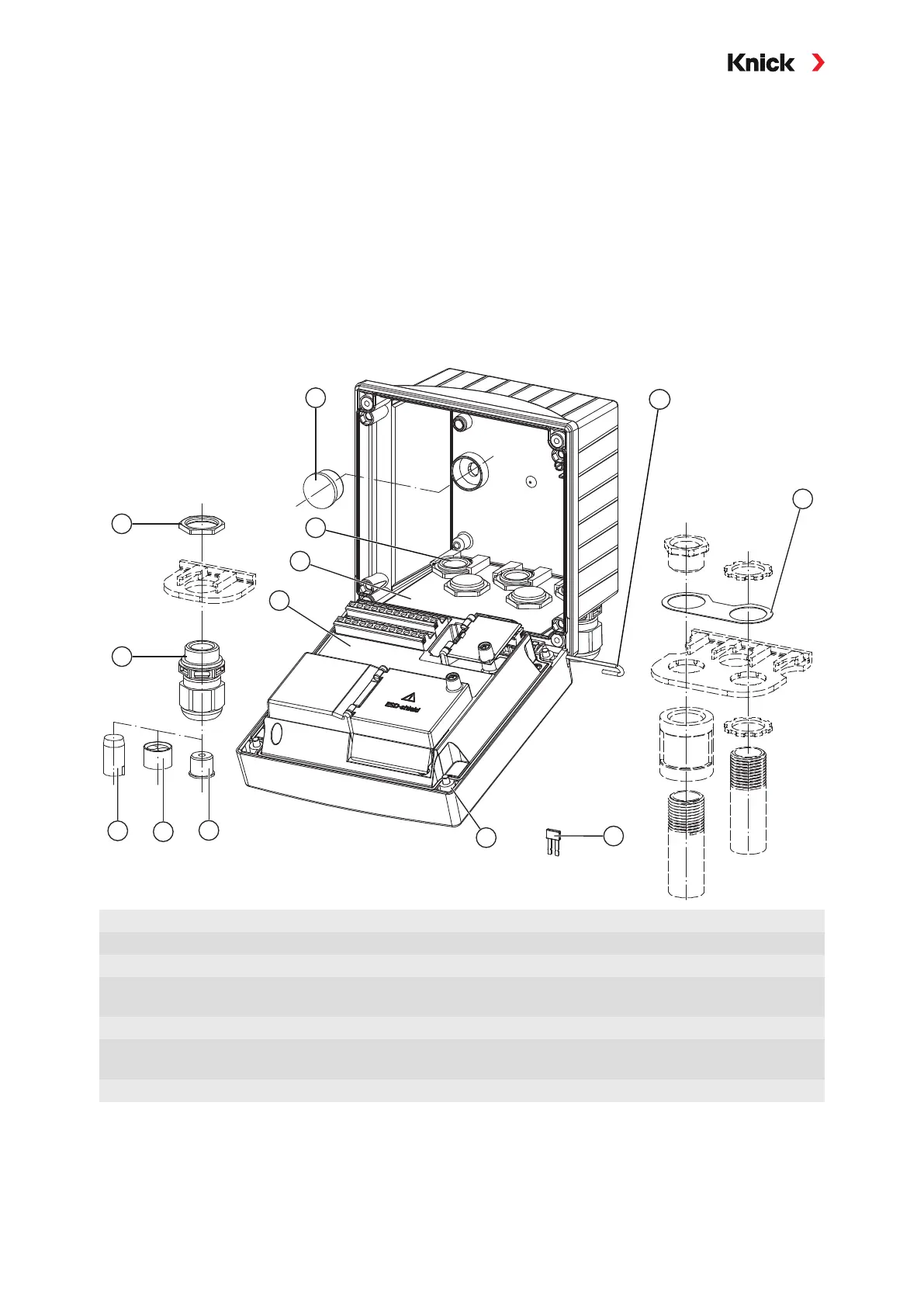

Front unit
8
Housing screw (4x)
2
Rear unit
9
Reduction sealing insert (1x)
3
Holes for cable glands
10
Multiple sealing insert (1x)
4
Plastic sealing plug (2x),
for sealing in case of wall mounting
11
Blanking plugs (2x)
5
Hinge pin (1x), insertable from either side
12
Cable gland (5x)
6
Washer (1x), for conduit mounting:
Place washer between housing and nut
13
Hex nut (5x)
7
Insertable jumper (2x)
