Knick Stratos Multi E401N - Contacting Conductivity Wiring Examples

Stratos Multi E401N
175

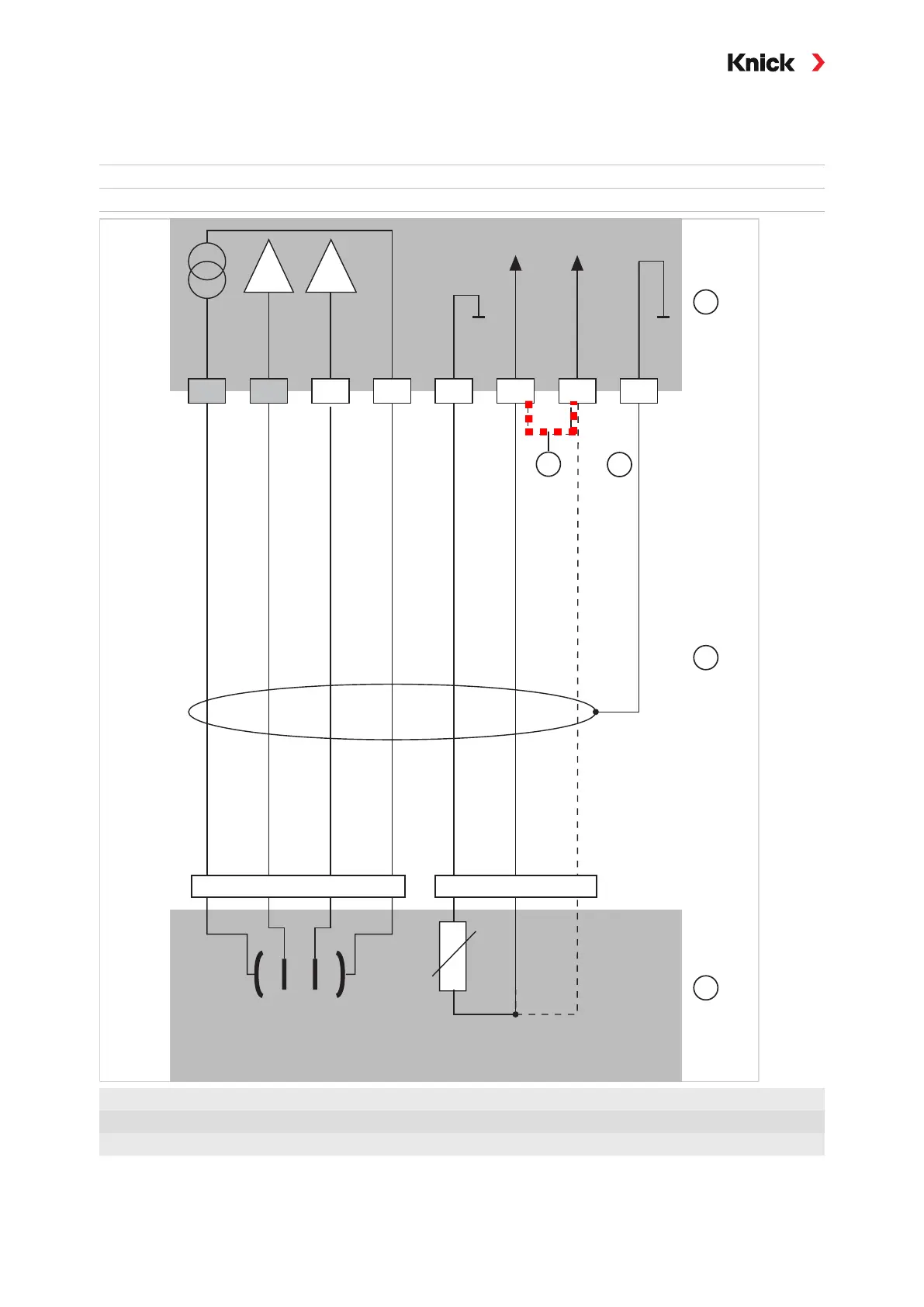

13.1.3 Contacting Conductivity Wiring Examples
Example 1, Cond
Measuring task: Conductivity, temperature
Sensors (principle): 4 electrodes
B C D E F G HA
I hi U hi U lo I lo RTD RTD (sense) RTD (GND) shield
1
2
4
5
3
1
Place jumper across F and G when a 2-wire temperature probe is used!
2
Shield
4
Cables
3
Cond Module
5
Sensors
