Knick Stratos Multi E401N - Page 176

Stratos Multi E401N
176

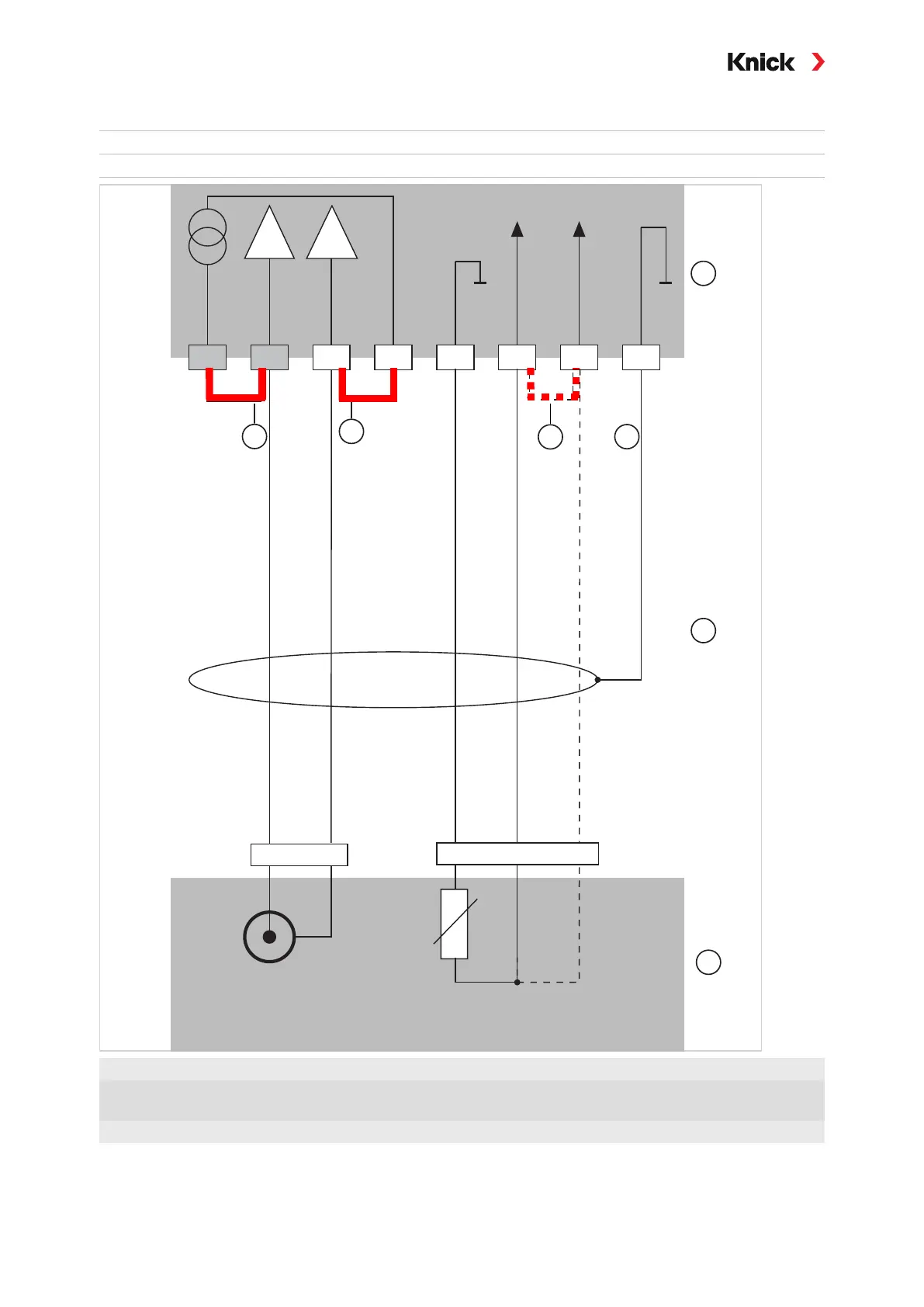

Example 2, Cond
Measuring task: Conductivity, temperature
Sensors (principle): 2 electrodes, coaxial
B C D E F G HA
I hi U hi U lo I lo RTD RTD (sense) RTD (GND) shield
1
1
2
4
5
3
6
1
Jumper!
4
Cond Module
2
Place jumper across F and G when a 2-wire tem-
perature probe is used!
5
Cables
3
Shield
6
Sensors
