3.4 Terminal Assignments of Measuring Modules
Installation of the measuring modules
➜
Connecting an Analog Sensor/Second Memosens Channel, p. 32
The module plate (1) is attached to the measuring module underneath the module cover on the rear
of the device.
1

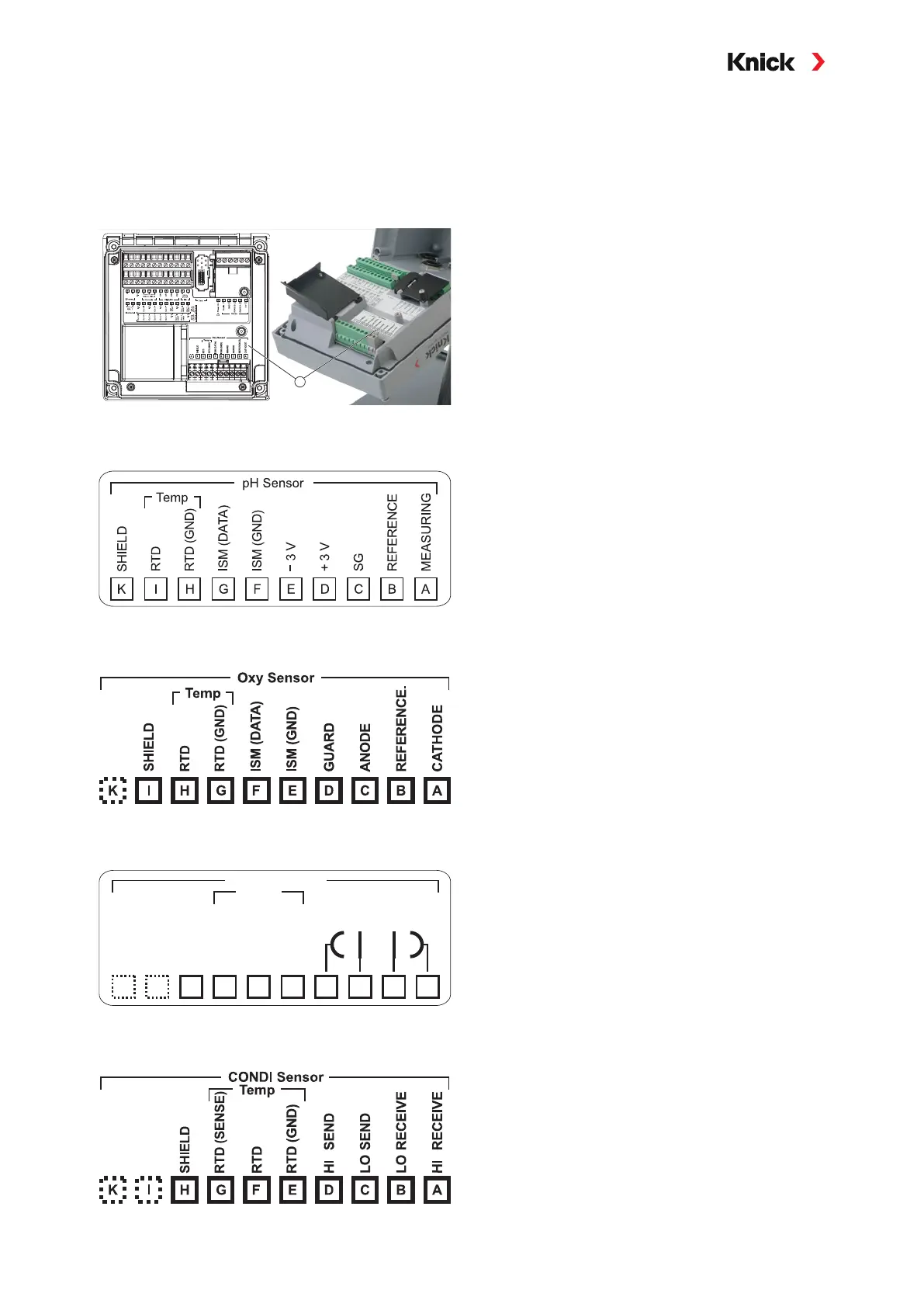

pH/ORP Measuring Module
Order code MK-PH015N
Oxygen Measuring Module
Order code MK-OXY046N
Module for Contacting Conductivity Measurement
Order code MK-COND025N
ABCDEFGHIK
COND Sensor
Temp
RTD (GND)
RTD (SENSE)
RTD
SHIELD
Module for Inductive Conductivity Measurement
Order code MK-CONDI035N
