Knick Stratos Multi E401N - Blanking Plugs, Reduction Sealing Inserts, Multiple Sealing Inserts

Stratos Multi E401N
26

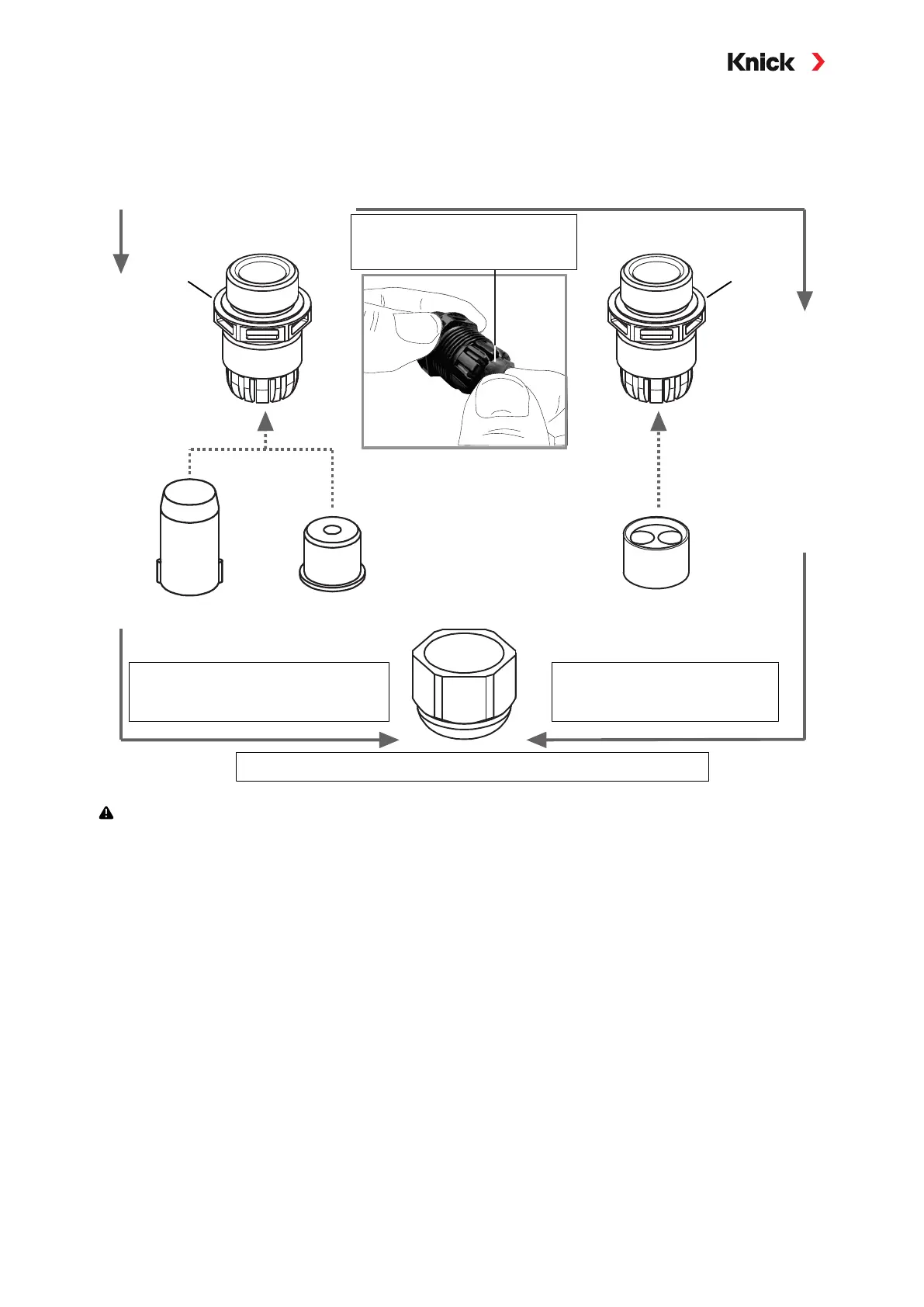

3.1.6 Blanking Plugs, Reduction Sealing Inserts, Multiple Sealing Inserts
As delivered, each cable gland includes a standard sealing insert. Reduction and multiple sealing in-
serts are available for tight insertion of one or two thinner cables. The coupling can be tightly sealed
using a blanking plug. Handling is as shown below.
Cable gland WITH
standard sealing insert
To use the multiple sealing insert,
remove the standard sealing
insert.
Cable gland WITHOUT
standard sealing instert
24 A/F 24 A/F
Blanking
plug
Reduction sealing
insert
Multiple sealing insert
(orientation as shown)
Blanking plugs and reduction sealing
inserts are inserted into the cable gland
WITH standard sealing instert.
The multiple sealing insert is
inserted into the cable gland
WITHOUT standard sealing insert.
Using blanking plugs and reduction sealing insert
Using a multiple sealing insert
Insert the cable into the cable gland and fasten with a coupling nut.
CAUTION! Ensure the suitable IP protection. IP66/IP67 can only be achieved with correctly in-
stalled cable glands and screwed housing. Observe the cable diameters and tightening torques. Only
use original accessories and spare parts.
