TECHNICAL INFORMATION
EN 42

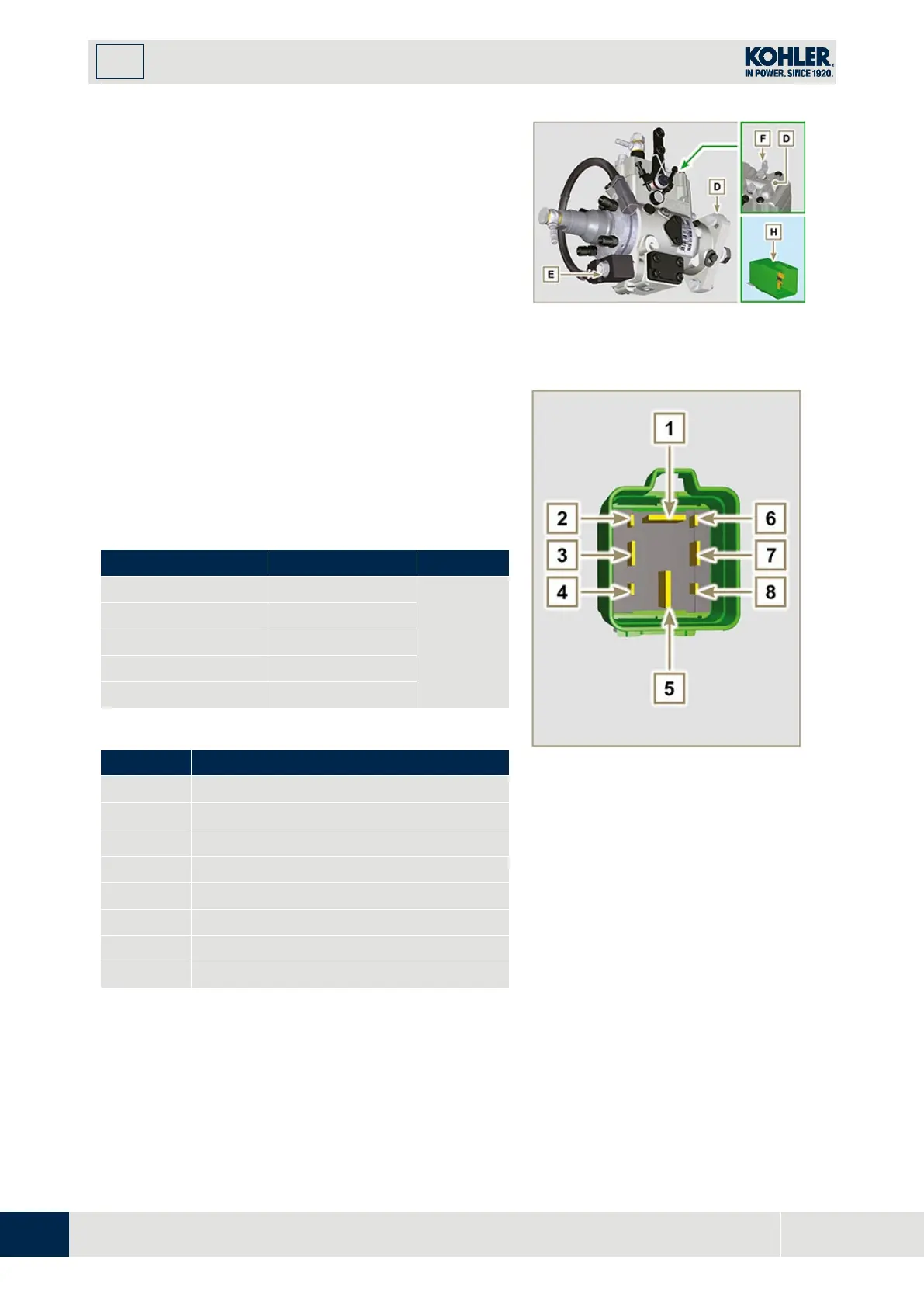

2.15.5 Cold start advance
T
he Cold Start Advance
E
device is part of injection pump
D
; it provides for advance injection modification to enable
advance of the engine at low temperatures.
The device is controlled by the ECU
H
.
Fig 2.39
2.15.6 Electro-Stop
T
he electro-stop
F
device is part of injection pump
D
; it
turns off the engine by blocking the flow of fuel into pump
D
.
2.15.7 ECU starting
The
H
device assists cold engine ignition controlling the
"cold starting device" (
Heater
) and the "Cold Start
Advance" (
CSA
).
Tab. 2.35a
indicates the activation times
based on the ambient temperatur.
Tab. 2.35a
°C
HEATER
CSA
≤ 20 ÷ -15
0''
120''
- 16
16''
- 21
21''
-26
26''
≤ -32
32''
Tab. 2.35b
POS.
DESCRIPTION
1
Heater
2
50 - ignition
3
15 - ignition
4
CSA
5
30 - battery
6
...
7
Earth
8
Control panel indicator
Fig 2.40
