Kohler KDI 2504TM Workshop Manual

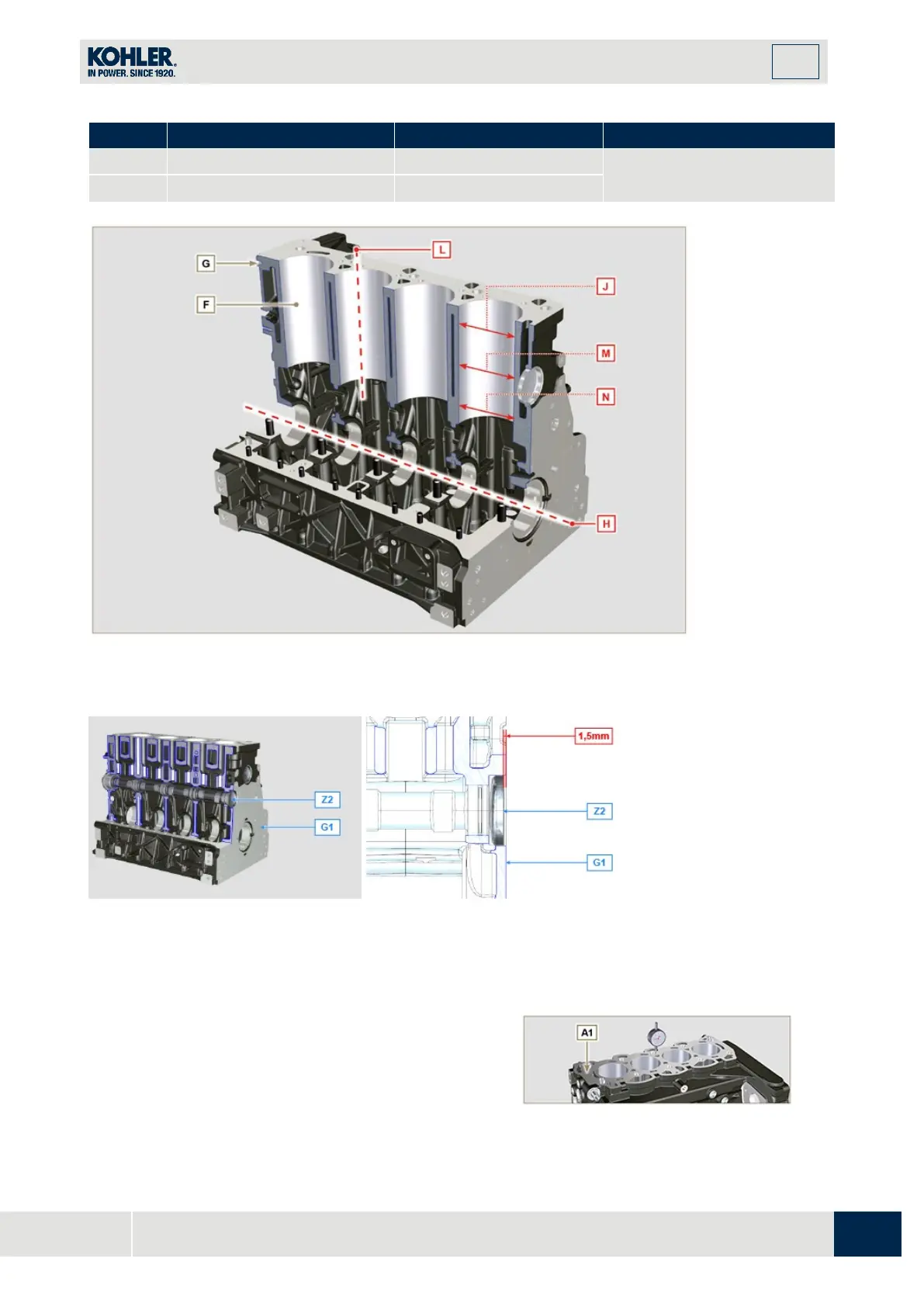

INFORMATION ABOUT OVERHAULING
8
101
EN
PISTON
Ø CILINDER (± 0.007 mm)
Ø PISTON (± 0.007 mm)
CLEARANCE VALUE (mm)
STD
88.010
87.950
0.046 - 0.074
+0.20
(1)
88.210
88.150
F
ig 8.2
N
.B.: if removing the Z2 hole closing cap, the new cap must comply with the MAX measurement o
f
1.
5 mm from the surface G1
Fig 8.2a
8.2.3 Block Surface Flatness
Use a dial gauge to check if the cylinder head surface
A1
is level.
The
MAX
value of allowable irregularity of surface
A1
is:
•
0.10 mm on the entire area;
•
0.03 mm on an area of 100x100 mm.
Fig
8.2
b
