Kohler KDI 2504TM Workshop Manual

INFORMATION ABOUT OVERHAULING
8
107
EN
•
Seal rings cannot be replaced separately.
NOTE:
refer to
Fig. 8.19
to locate the rings.
Tab. 8.7
RINGS
H (mm)
U1
0.100 - 0.300
U2
0.250 - 0.500
U3
0.250 - 0.400

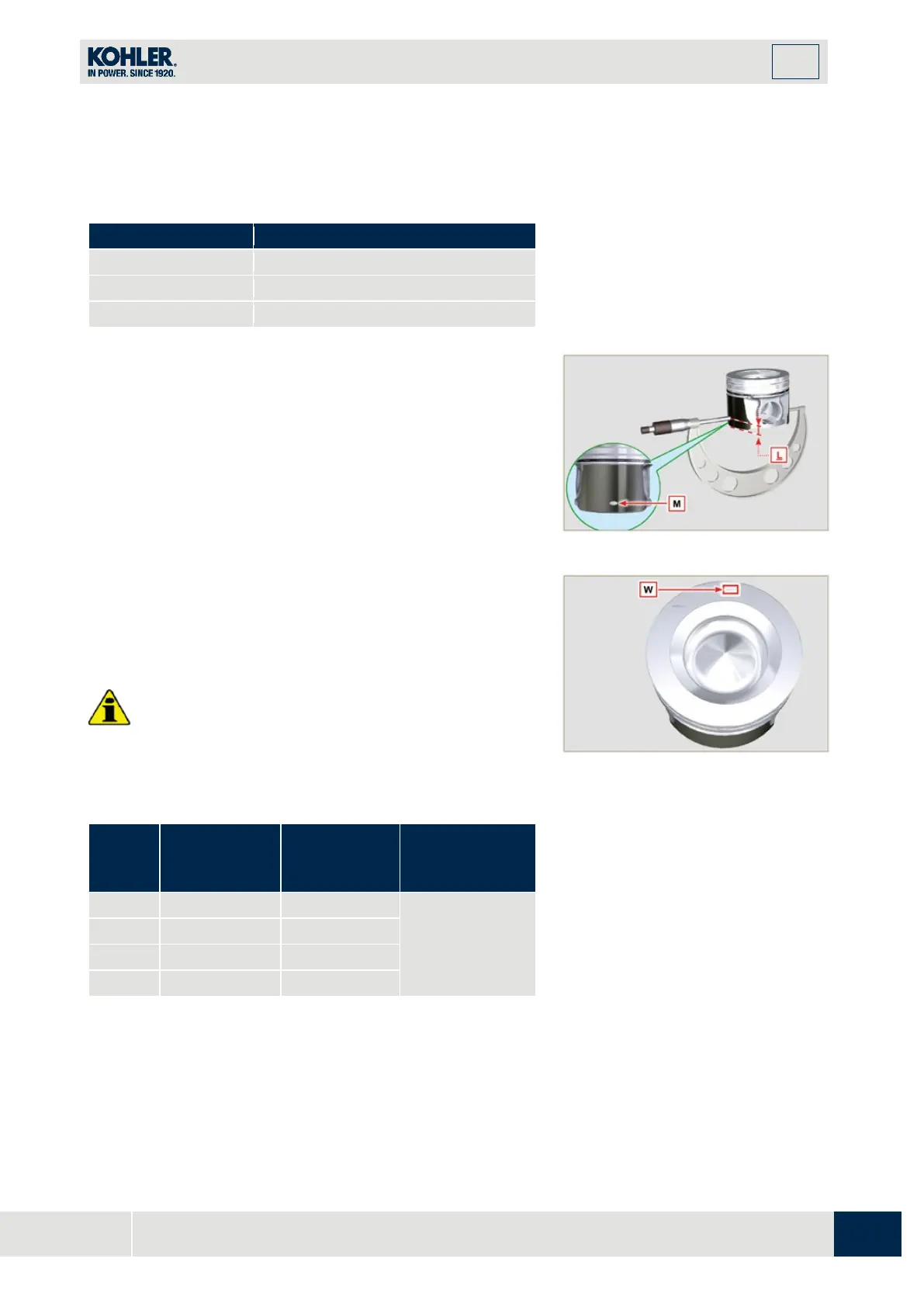

8.5.4 Piston dimension check
Clean the piston thoroughly.
Measure the diameter of the piston at 12 mm (quota
L
) from the
base of the skirt in correspondence with the graphite lubrication
windows
M
.
Refer to
Tab. 8.1b
to establish the clearance value of the
pistons with a decreased diameter.
In correspondence with point
W
, there are:
3 digits for the STD piston;
3 digits followed by R for a piston with an increased diameter of
0.10 mm;
+0.5 for a piston with an increased diameter of 0.50 mm;
+1 for a piston with an increased diameter of 1.00 mm;
If cl
earance between cylinder and piston is greater than 0,074
mm, the piston and seal rings must be replaced.
Important
•
Tab. 8.1b details the dimensional values of new
components only.
Tab. 8.1b
PISTON
Ø CYLINDERS
(± 0.007 mm)
Ø PISTON
(± 0.007 mm)
CLEARANCE
VALUE
(mm)
STD
88.010
87.950
0.046 + 0.074
+0.10
88.110
88.050
+0.50
88.510
88.450
+1.00
89.010
88.950
Fig 8.16
F
ig 8.17
